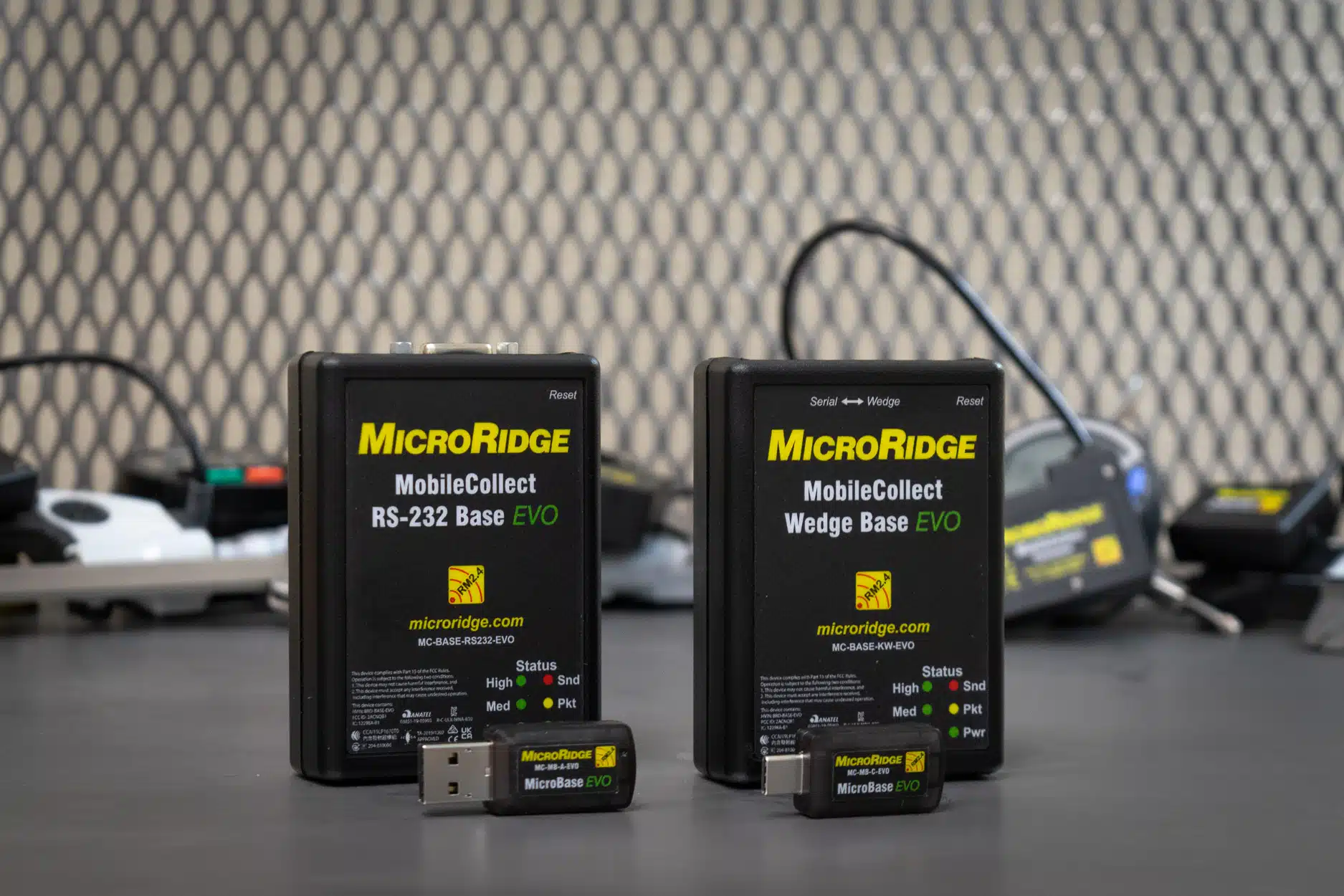

MobileCollect Full-Size EVO Bases Released

The EVO line of MobileCollect Base Receivers builds on the already powerful set of MobileCollect Bases with updated hardware that has and will enable powerful new features.

Full Size EVO Base Features:

• Longer Range
• Plug and Play – No USB driver needed

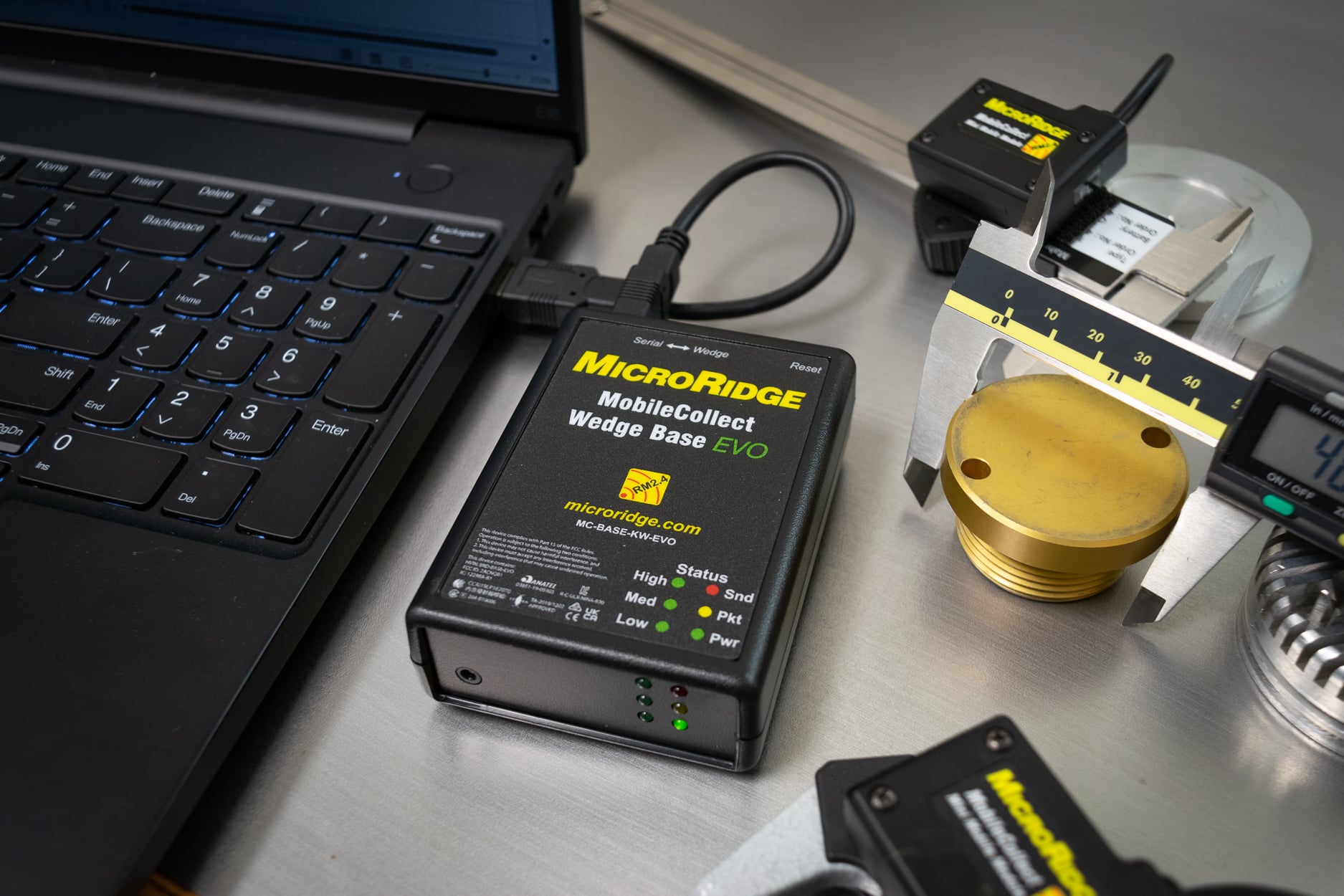

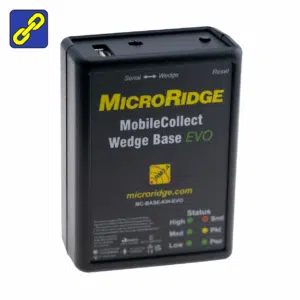

• Serial or Keyboard Wedge Output at the flip of a switch
  • Keyboard Wedge emulates a keyboard to type measurement data into software applications such as Microsoft Excel, Access, Minitab, cloud based SPC and more.
  • Serial VCP (Virtual COM Port) to connect to advanced SPC and data analytic software applications.
    • Automatically matches the baud rate set in your SPC program.

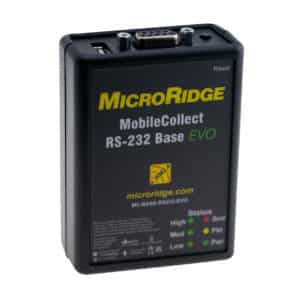

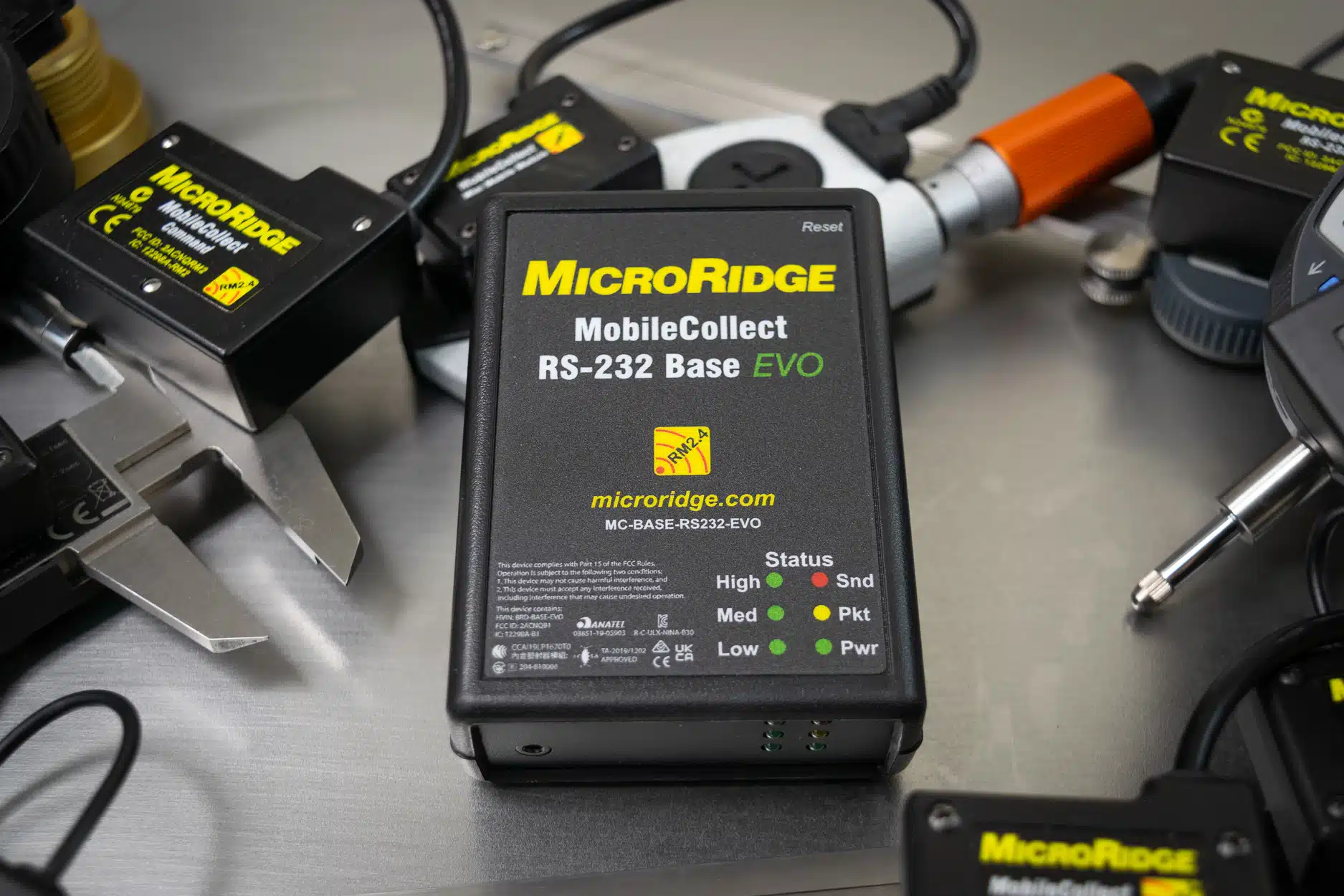

• Dual Output Mode on RS-232 Base
  • Send measurement data to multiple devices by connecting the USB RS-232 Serial connection to one device and the RS-232 Serial DB9 connection to the other.
    • For Example: Use dual output to send measurement data to a printer/display and an SPC application simultaneously.
• Unique PID/VID for USB Communications
  • This is very important from an IT perspective, making it easier to get our devices approved for use.
• Supports advanced MobileCollect Transmitter features
  • Remote Read Switch
    • Used to initiate gage readings on Command Mobile Modules remotely with a Mini Mobile Module configured as a remote read switch.
  • Skip Button
    • Used to skip fields in an SPC software remotely with a Mini Mobile Module configured as a skip button.
• Increased International Certifications
  • Certified with FCC (USA), IC (Canada), CE (EU)
  • Compliant in UK, Australia/New Zealand, Japan, Taiwan, South Korea, Brazil, & South Africa
