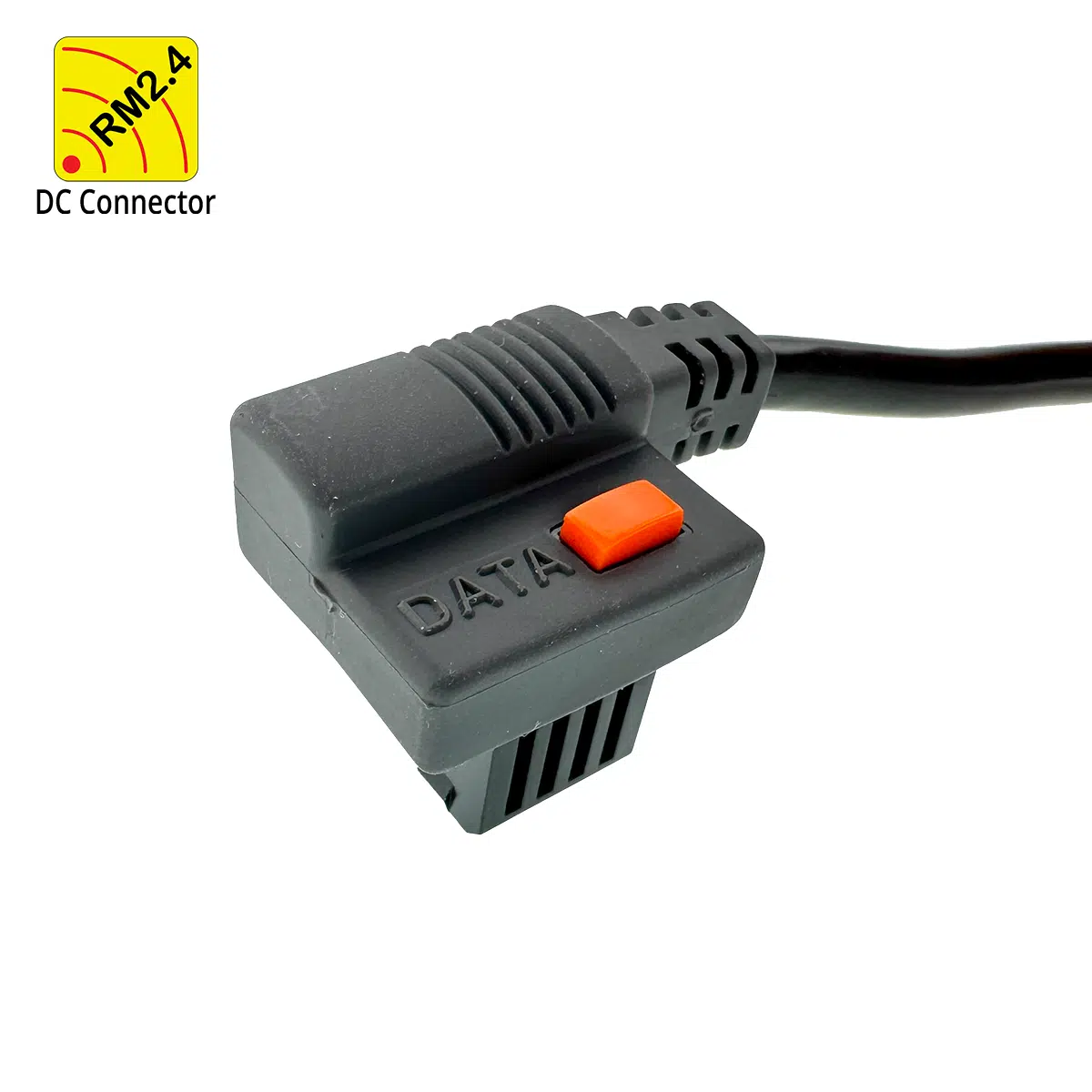

Command Mobile Module connector for Mitutoyo Digimatic micrometer heads and calipers requiring a right-angle connection — for gages using the 04AZB512 SPC cable. Enables automated, bi-directional wireless gage data collection — readings are triggered remotely from the MobileCollect Base Receiver or SPC software. Right-angle plug orientation designed for fixture applications where cable routing clearance is limited.
Transmitter Family – Command Mobile Module (DC)
Standard Cable Length – 6.5″
SKU – MC-D-04AZB512-6.5
Required Hardware – Command Mobile Module (DC) and MobileCollect Base
Read Button – Yes
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$193.00
The DC Wireless Connector for Mitutoyo 04AZB512 gages is the hardware link between your Mitutoyo Digimatic micrometer head or caliper and the MobileCollect Wireless automated measurement collection system. This connector uses the same electrical interface as the 959149 connector but with a right-angle plug orientation — a critical geometry advantage in fixture-based automation where cable exit angle directly affects clearance and installation feasibility.
Like all Command Mobile Module connectors, this enables bi-directional wireless communication. Readings are commanded remotely by the MobileCollect Base or your SPC software — no operator button press required at the gage.
With the Command Mobile Module, the read cycle is controlled upstream. Read commands are issued by your SPC software via serial output to the Base Receiver, or triggered by a foot switch, hand switch, or wireless remote switch connected to the Base. The Base transmits the request wirelessly to the Command Mobile Module, which triggers the gage and immediately returns the measurement data — all without any operator action at the gage.
This architecture eliminates the human touchpoint in the measurement loop, directly reducing transcription error risk and supporting tighter SPC control limits. The Base can also request single or multiple readings per command cycle and issue sleep commands to extend battery life — all configurable from your host PC or application.
The 04AZB512 is the right-angle version of the 959149 straight connector. Both cables connect to the same Mitutoyo Digimatic output — the difference is the physical orientation. Choose the right-angle version when a straight cable would interfere with fixturing, workholding, or operator access — particularly common with micrometer heads mounted in fixtures or calipers used in tight spaces. In fixture-based automation setups, cable exit geometry often isn’t optional, and the right-angle plug can be the difference between a clean installation and a cable under constant mechanical stress.
This connector can also be used on Mitutoyo indicators that would normally use the 905338 cable, giving you right-angle cable routing on indicators as well. With the Command Mobile Module, the read trigger source is your SPC software or a read switch at the operator station — not typically via the button on the cable — so the right-angle orientation is purely a geometry decision based on your fixture layout, with no functional tradeoff.
Not sure if your indicator uses the 04AZB512 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
MicroRidge also offers the 04AZB512 cable/connector for other systems in the MobileCollect and GageWay product families:
M3 Connector — Mitutoyo 04AZB512 — For the Mini Mobile Module EVO (M3E). The M3E is the compact transmitter for applications that only require operator-initiated reads at the gage. One-way wireless communication; smaller form factor than the DC.
OEM SPC Cable — Mitutoyo 04AZB512 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
The Command Mobile Module (DC) supports both automated, remotely commanded reads and manual operator-initiated reads via its built-in read button — so it can do everything the M3E does, plus remote automation. The tradeoff is form factor: the DC is larger than the M3E to accommodate the higher-capacity battery required to sustain remote-triggered read cycles. If your application only requires operator-initiated reads at the gage and a compact transmitter profile is a priority, the Mini Mobile Module EVO (M3E) is the right transmitter for that use case.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the automated wireless link, pair this connector with a Command Mobile Module transmitter (MC-MM-DC) and a MobileCollect Base Receiver.
MC-D-04AZB512-6.5 Specs | |
|---|---|
Transmitter Family | Command Mobile Module (DC) |
Standard Cable Length | 6.5 inches |
SKU | MC-D-04AZB512-6.5 |
Required Hardware | Command Mobile Module (DC) & MobileCollect Base |
Read Button | Yes |
IP Rating | N/A |
Gage Brand | Mitutoyo |
