Command Mobile Module connector and interface adapter kit for Kroeplin gages. Includes both the gage cable and the required interface adapter. Enables automated, bi-directional wireless gage data collection — readings are triggered remotely from the MobileCollect Base Receiver or your SPC software, with no operator input required at the gage.
Transmitter Family – Command Mobile Module (DC)
Standard Cable Length – 6.5″
SKU – MC-D-22806-MIT-6.5
Required Hardware – Command Mobile Module (DC) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – Kroeplin
$290.00
The DC Wireless Connector for Kroeplin gages is the hardware link between your Kroeplin instrument and the MobileCollect Wireless automated measurement collection system. Unlike the Mini Mobile Module EVO (M3E), the Command Mobile Module enables bi-directional wireless communication — readings are commanded remotely by the MobileCollect Base Receiver or your SPC software. No button press, no operator touchpoint at the gage required.

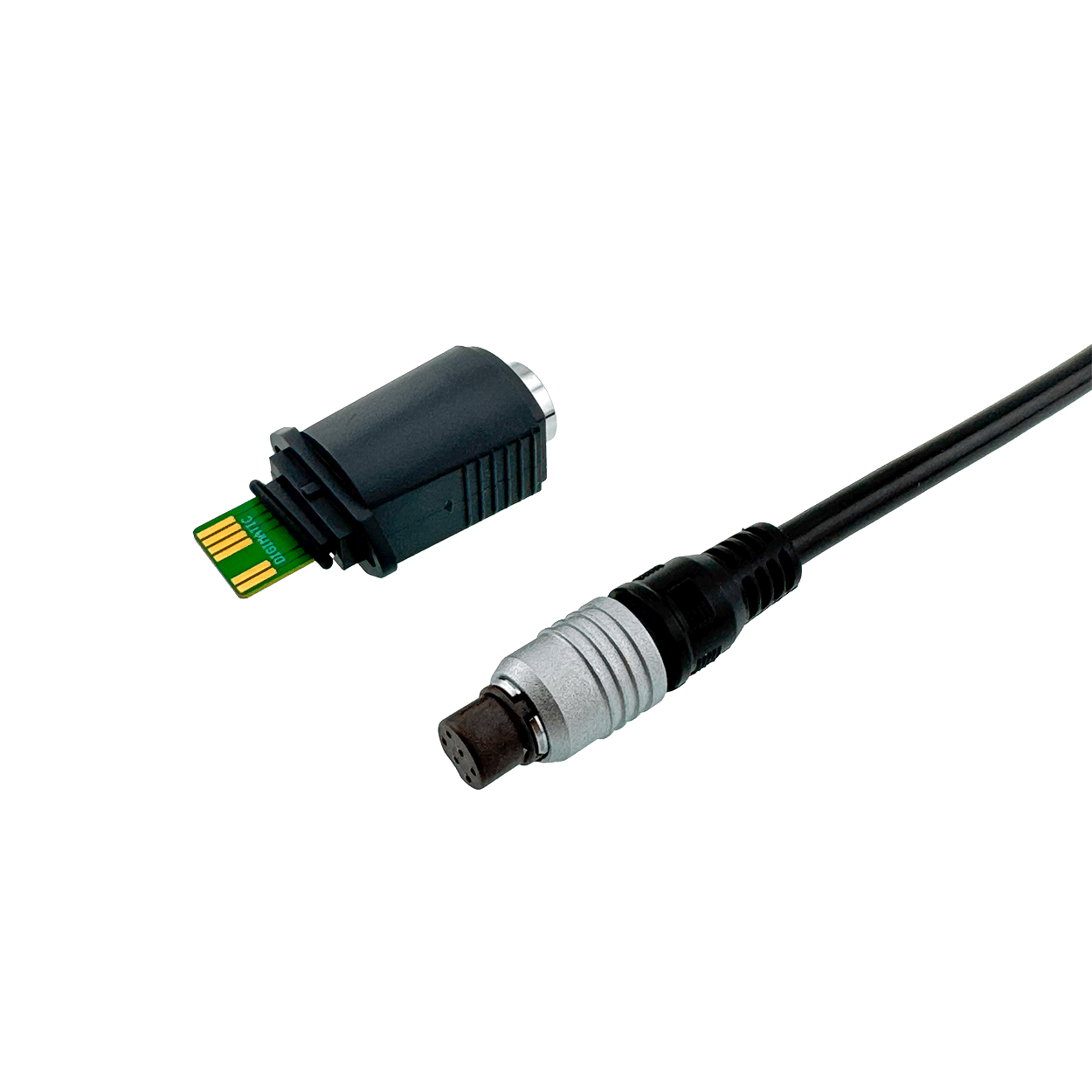

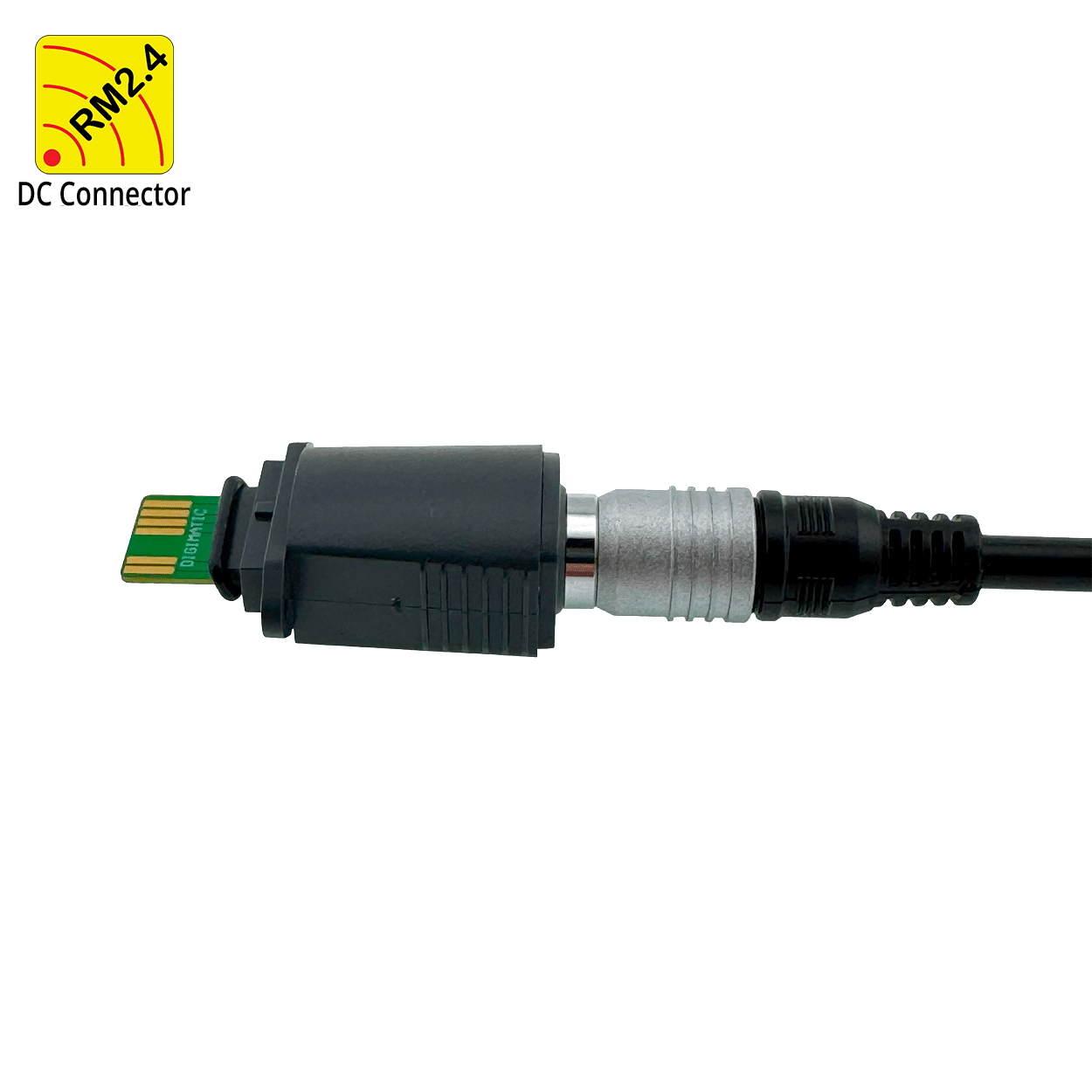

Unlike most DC connectors which plug directly into a gage’s SPC output, the Kroeplin connection requires both a gage cable and an interface adapter. This product includes both components. The adapter converts the Kroeplin gage signal to a format compatible with the Command Mobile Module transmitter.
With the Command Mobile Module, the read cycle is controlled upstream. Read commands are issued by your SPC software via serial output to the Base Receiver, or triggered by a foot switch, hand switch, or wireless remote switch connected to the Base. The Base transmits the request wirelessly to the Command Mobile Module, which triggers the gage and immediately returns the measurement data — all without any operator action at the gage.
This architecture eliminates the human touchpoint in the measurement loop, directly reducing transcription error risk and supporting tighter SPC control limits. The Base can also request single or multiple readings per command cycle and issue sleep commands to extend battery life — all configurable from your host PC or application.
The MC-D-22806-MIT-6.5 is designed for Kroeplin precision gages requiring the 22806-MIT interface adapter. This product ships as a complete kit with both the gage cable and the interface adapter:
If you need a replacement interface adapter or gage cable individually, contact sales@microridge.com. Use the MobileCollect Selection Tool to verify your specific Kroeplin model.
MicroRidge also offers the Kroeplin 22806-MIT cable/connector for other systems in the MobileCollect and GageWay product families:
M3 Connector — Kroeplin 22806-MIT — For the Mini Mobile Module EVO (M3E). The M3E is the compact transmitter for applications that only require operator-initiated reads at the gage. One-way wireless communication; smaller form factor than the DC.
OEM SPC Cable — Kroeplin 22806-MIT — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
The Command Mobile Module (DC) supports both automated, remotely commanded reads and manual operator-initiated reads via its built-in read button — so it can do everything the M3E does, plus remote automation. The tradeoff is form factor: the DC is larger than the M3E to accommodate the higher-capacity battery required to sustain remote-triggered read cycles. If your application only requires operator-initiated reads at the gage and a compact transmitter profile is a priority, the Mini Mobile Module EVO (M3E) is the right transmitter for that use case.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the automated wireless link, pair this connector with a Command Mobile Module transmitter (MC-MM-DC) and a MobileCollect Base Receiver.
MC-D-22806-MIT-6.5 Specs | |
|---|---|
Transmitter Family | Command Mobile Module (DC) |
Standard Cable Length | 6.5 inches |
SKU | MC-D-22806-MIT-6.5 |
Required Hardware | Command Mobile Module (DC) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | Kroeplin |
