Command Mobile Module connector for Mitutoyo indicators that use the 905338 cable. Enables automated, bi-directional wireless gage data collection — readings are triggered remotely from the MobileCollect Base Receiver or your SPC software, with no operator button press required at the gage. Designed for fixture-based inspection stations and automated measurement applications operating under ISO 9001, IATF 16949, and AS9100D.
Transmitter Family – Command Mobile Module (DC)
Standard Cable Length – 6.5″
SKU – MC-D-905338-6.5
Required Hardware – Command Mobile Module (DC) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$123.00

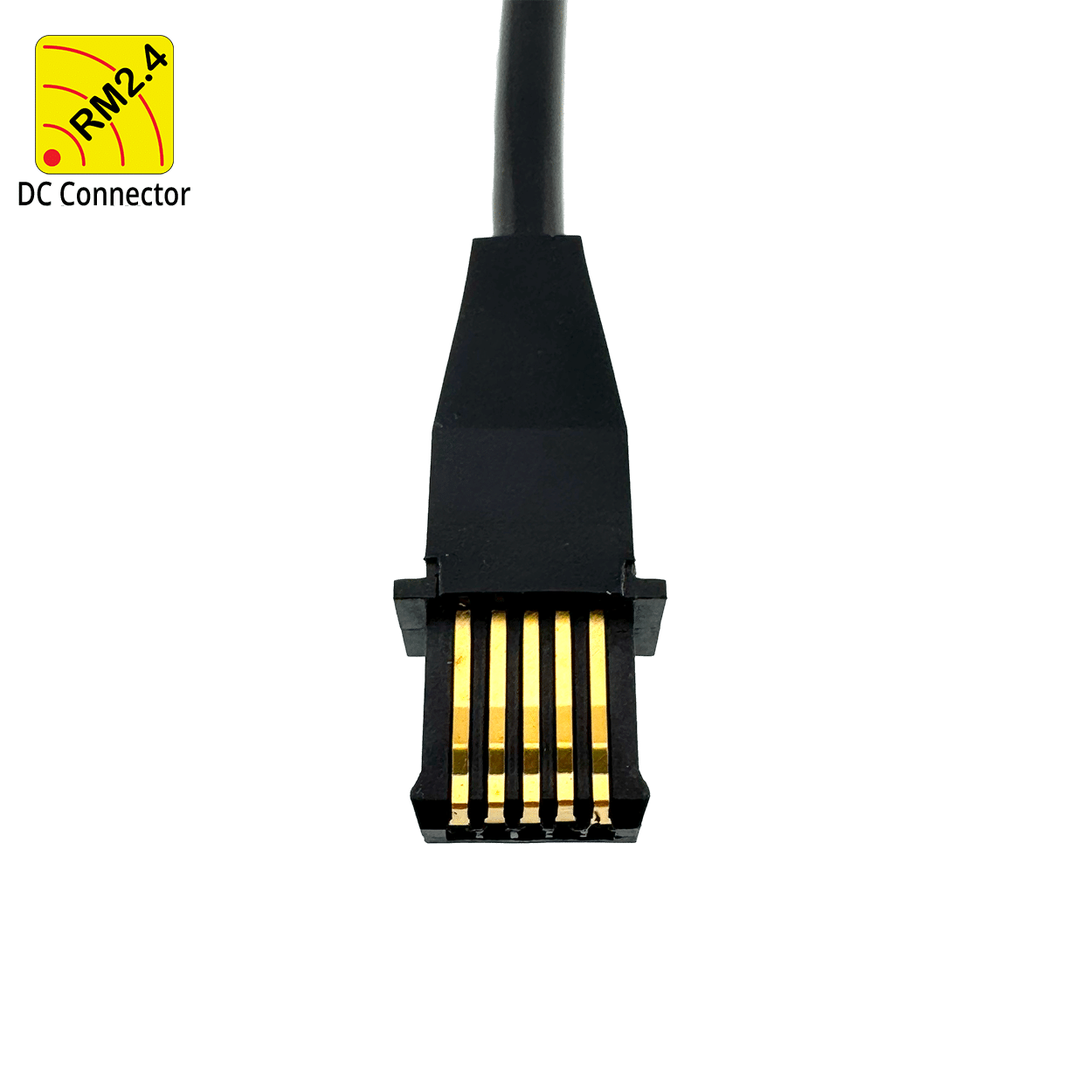

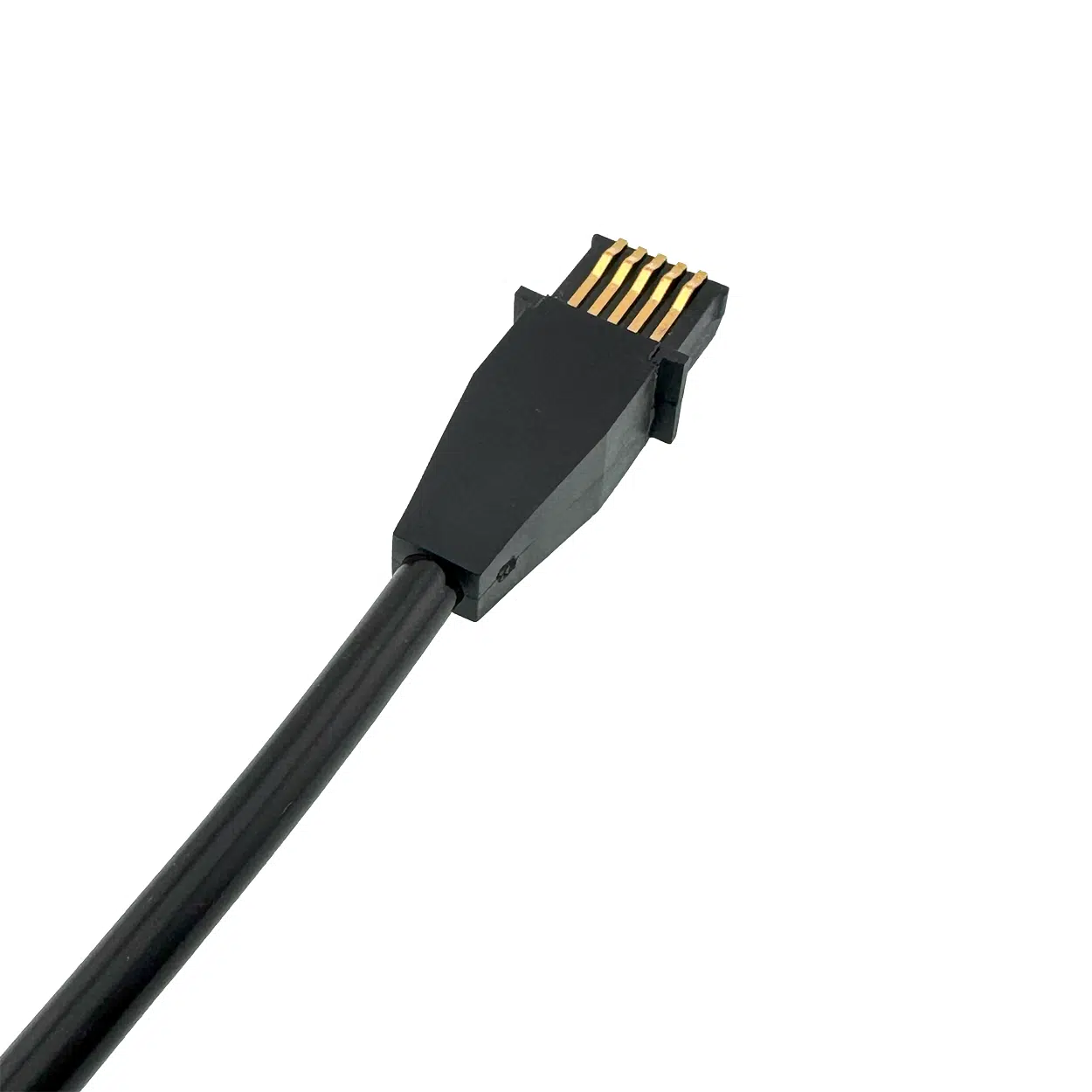

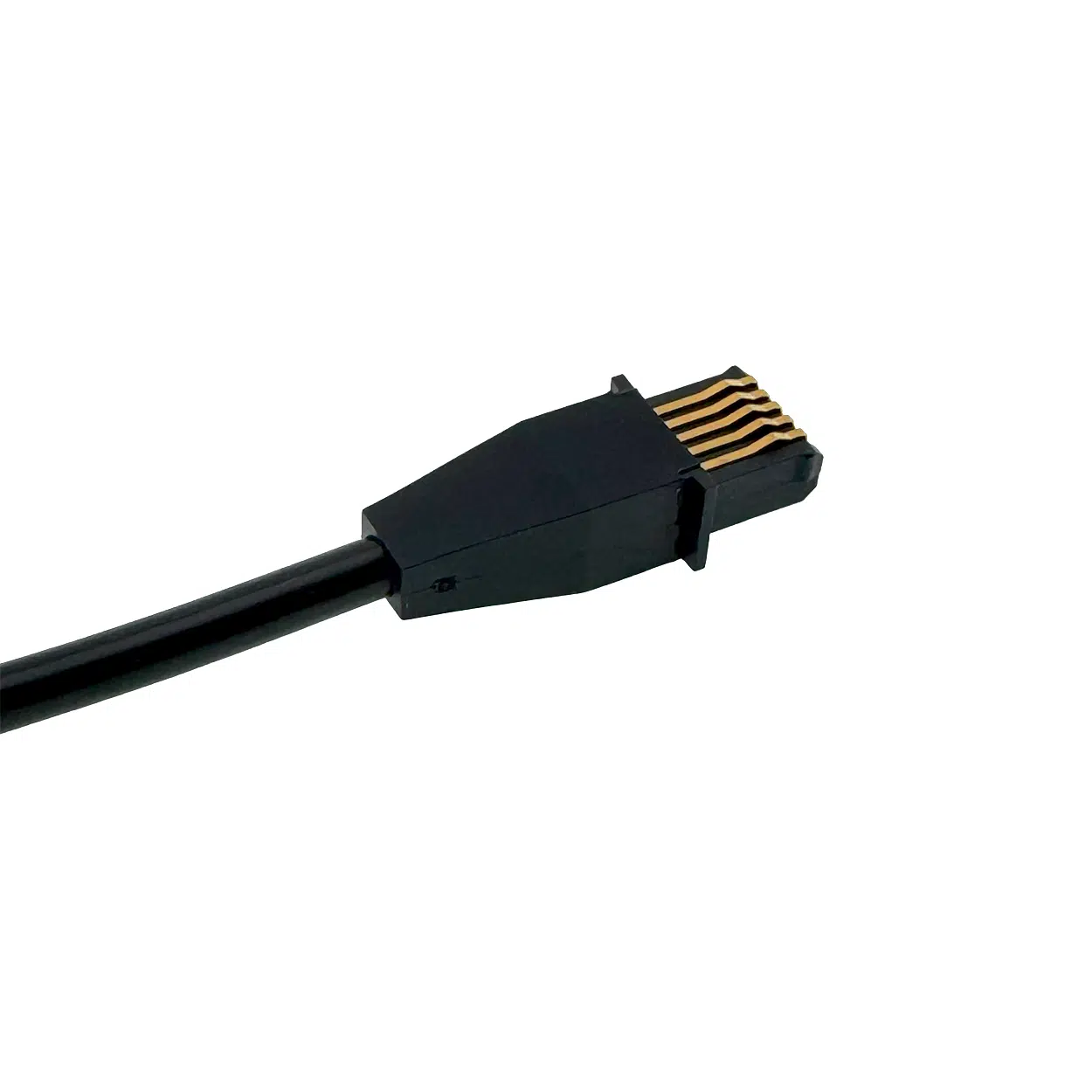

The DC Wireless Connector for Mitutoyo 905338 gages is the hardware link between your Mitutoyo indicator and the MobileCollect Wireless automated measurement collection system. Unlike the Mini Mobile Module EVO (M3E), which relies on an operator pressing a button at the gage to trigger each reading, the Command Mobile Module enables bi-directional wireless communication — readings are initiated remotely by the MobileCollect Base or your SPC software. No button press, no operator touchpoint at the gage required.
This makes the DC Connector the right choice for fixture-based inspection stations, automated in-process measurement setups, multi-gage sequences, and any application where removing the operator from the measurement loop is a process control objective under ISO 9001, IATF 16949, or AS9100D.
With the Command Mobile Module, the read cycle is controlled upstream. Read commands are issued by your SPC software via serial output to the Base Receiver, or triggered by a foot switch, hand switch, or wireless remote switch connected to the Base. The Base transmits the request wirelessly to the Command Mobile Module, which triggers the gage and immediately returns the measurement data — all without any operator action at the gage.
This architecture eliminates the human touchpoint in the measurement loop, directly reducing transcription error risk and supporting tighter SPC control limits. The Base can also request single or multiple readings per command cycle and issue sleep commands to extend battery life — all configurable from your host PC or application.
The MC-D-905338-6.5 is compatible with Mitutoyo Digimatic indicators that use the 905338 cable connection, including:
Not sure if your indicator uses the 905338 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
If you purchased a Mitutoyo ID-C or ID-F indicator from the 543-70X, 543-71X, 543-72X, or 543-73X series (introduced in 2023), this is not the correct connector. Those updated NX-series indicators replaced the Type F SPC port with Mitutoyo’s new Type SF connector, which supports the higher-resolution Digimatic D2 and bidirectional S1 protocols. You’ll need the 06AGL011 cable — see the DC Connector for Mitutoyo 06AGL011 instead. For a full breakdown of what changed and how to identify which connector your indicator has, read our complete guide to Mitutoyo’s SPC cable transitions. The connector on this page (905338) is for all pre-2023 ID-C and ID-F indicators, as well as height gages (570 series), depth gages, scale units (572 series), and thickness gages that continue to use the original Type F connector.
MicroRidge also offers the 905338 cable/connector for other systems in the MobileCollect and GageWay product families:
M3 Connector — Mitutoyo 905338 — For the Mini Mobile Module EVO (M3E). The M3E is the compact transmitter for applications that only require operator-initiated reads at the gage. One-way wireless communication; smaller form factor than the DC.
OEM SPC Cable — Mitutoyo 905338 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
The Command Mobile Module (DC) supports both automated, remotely commanded reads and manual operator-initiated reads via its built-in read button — so it can do everything the M3E does, plus remote automation. The tradeoff is form factor: the DC is larger than the M3E to accommodate the higher-capacity battery required to sustain remote-triggered read cycles. If your application only requires operator-initiated reads at the gage and a compact transmitter profile is a priority, the Mini Mobile Module EVO (M3E) is the right transmitter for that use case.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the automated wireless link, pair this connector with a Command Mobile Module transmitter (MC-MM-DC) and a MobileCollect Base Receiver.
MC-D-905338-6.5 Specs | |
|---|---|
Transmitter Family | Command Mobile Module (DC) |
Standard Cable Length | 6.5 inches |
SKU | MC-D-905338-6.5 |
Required Hardware | Command Mobile Module (DC) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | Mitutoyo |
