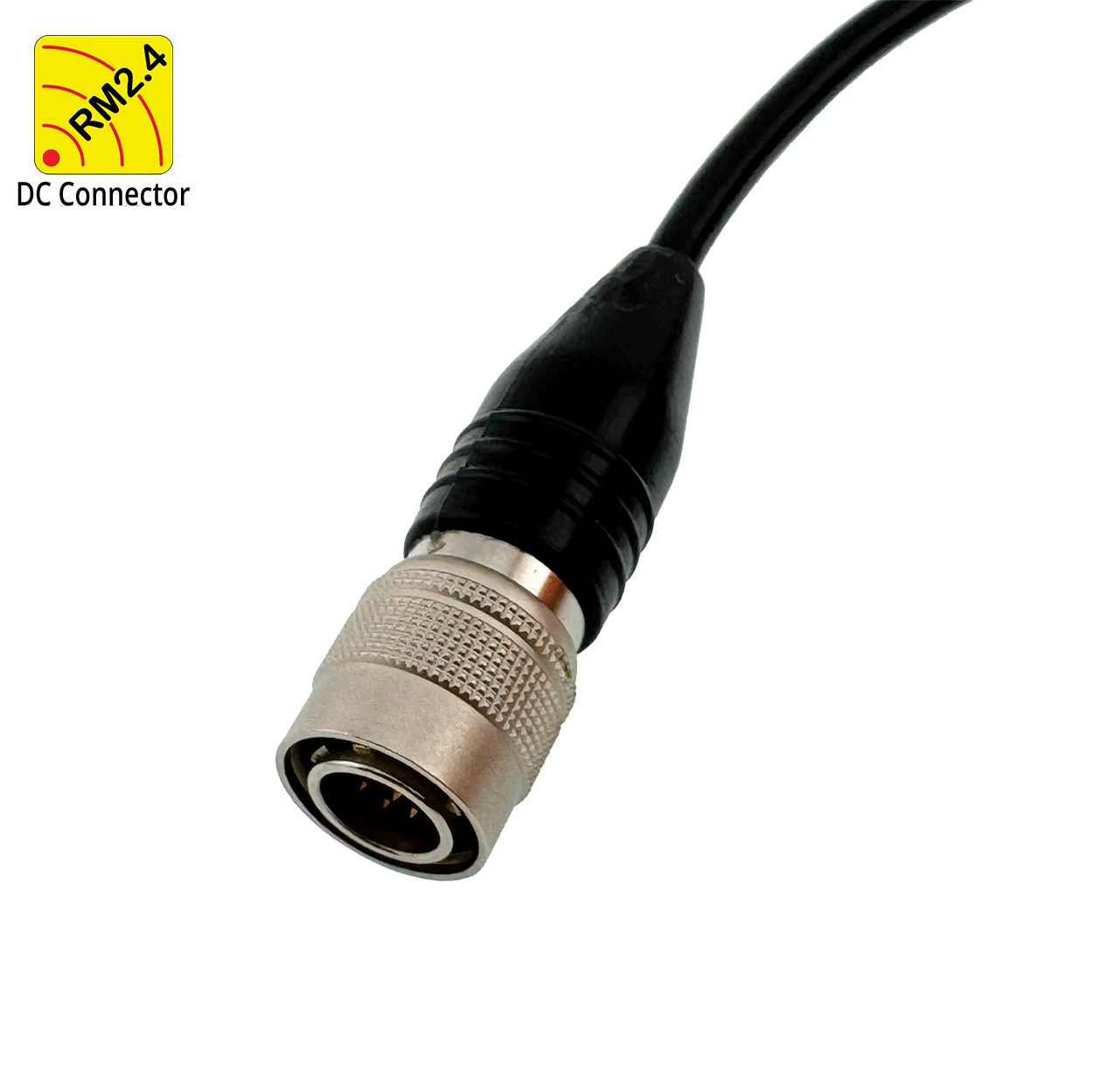

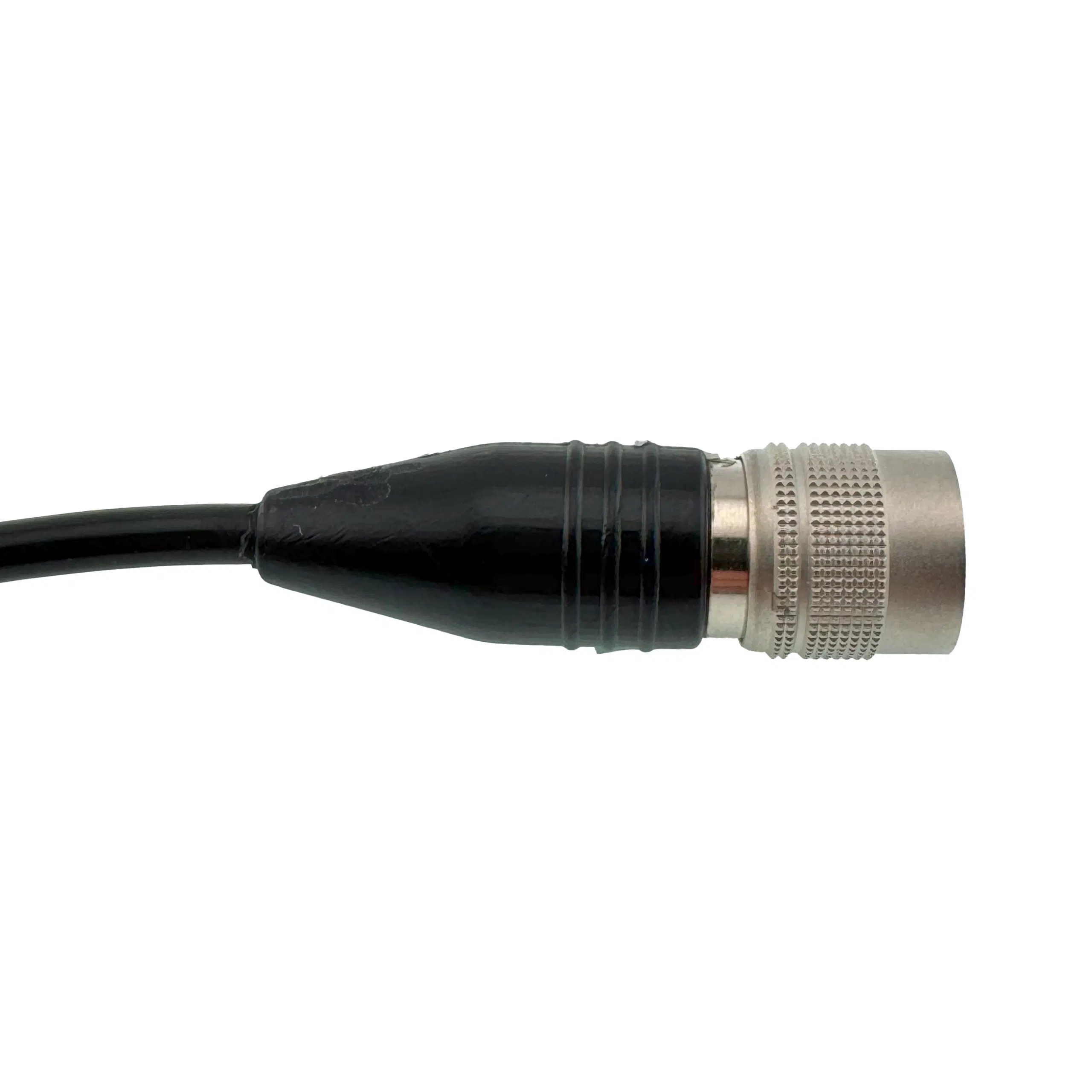

Command Mobile Module connector for TruPosition digital probes used in true position hole location verification. Enables automated, bi-directional wireless gage data collection — readings are triggered remotely from the MobileCollect Base Receiver or your SPC software. Ideal for automated fixture-based true position verification, eliminating manual recording of X/Y axis displacement data and the dual-entry transcription error risk it creates.
Transmitter Family – Command Mobile Module (DC)
Standard Cable Length – 8.0″
SKU – MC-D-TRU-POS-8
Required Hardware – Command Mobile Module (DC) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – TruPosition
$190.00
The DC Wireless Connector for TruPosition probes is the hardware link between your TruPosition digital true position probe and the MobileCollect Wireless automated measurement collection system. TruPosition probes are portable handheld instruments used to verify that hole, slot, and weld nut locations meet GD&T true position tolerances — a critical dimensional characteristic in automotive, aerospace, and precision manufacturing. This connector enables that measurement data to transmit wirelessly to your SPC software via automated command, eliminating manual recording entirely.
Unlike the Mini Mobile Module EVO (M3E), the Command Mobile Module enables bi-directional wireless communication — readings are commanded remotely by the MobileCollect Base Receiver or your SPC software. In fixture-based true position verification stations, this means each probe in a multi-point fixture can be read on command with no operator contact required at the gage.
With the Command Mobile Module, the read cycle is controlled upstream. Read commands are issued by your SPC software via serial output to the Base Receiver, or triggered by a foot switch, hand switch, or wireless remote switch connected to the Base. The Base transmits the request wirelessly to the Command Mobile Module, which triggers the gage and immediately returns the measurement data — all without any operator action at the gage.
This architecture eliminates the human touchpoint in the measurement loop, directly reducing transcription error risk and supporting tighter SPC control limits. The Base can also request single or multiple readings per command cycle and issue sleep commands to extend battery life — all configurable from your host PC or application.
The MC-D-TRU-POS-8 works with TruPosition digital probes that have SPC data output. TruPosition probes contain two Mitutoyo Digimatic caliper read units that simultaneously measure X and Y axis displacement to calculate true position. Compatible probes include:
The output format from this cable is Mitutoyo Digimatic compatible. Contact sales@microridge.com or use the MobileCollect Selection Tool to verify compatibility with your specific TruPosition probe.
MicroRidge also offers the TruPosition cable/connector for other systems in the MobileCollect and GageWay product families:
M3 Connector — TruPosition Gage Cable — For the Mini Mobile Module EVO (M3E). The M3E is the compact transmitter for applications that only require operator-initiated reads at the gage. One-way wireless communication; smaller form factor than the DC.
The Command Mobile Module (DC) supports both automated, remotely commanded reads and manual operator-initiated reads via its built-in read button — so it can do everything the M3E does, plus remote automation. The tradeoff is form factor: the DC is larger than the M3E to accommodate the higher-capacity battery required to sustain remote-triggered read cycles. If your application only requires operator-initiated reads at the gage and a compact transmitter profile is a priority, the Mini Mobile Module EVO (M3E) is the right transmitter for that use case.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the automated wireless link, pair this connector with a Command Mobile Module transmitter (MC-MM-DC) and a MobileCollect Base Receiver.
MC-D-TRU-POS-8 Specs | |
|---|---|
Transmitter Family | Command Mobile Module (DC) |
Standard Cable Length | 8.0 inches |
SKU | MC-D-TRU-POS-8 |
Required Hardware | Command Mobile Module (DC) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | TruPosition |
