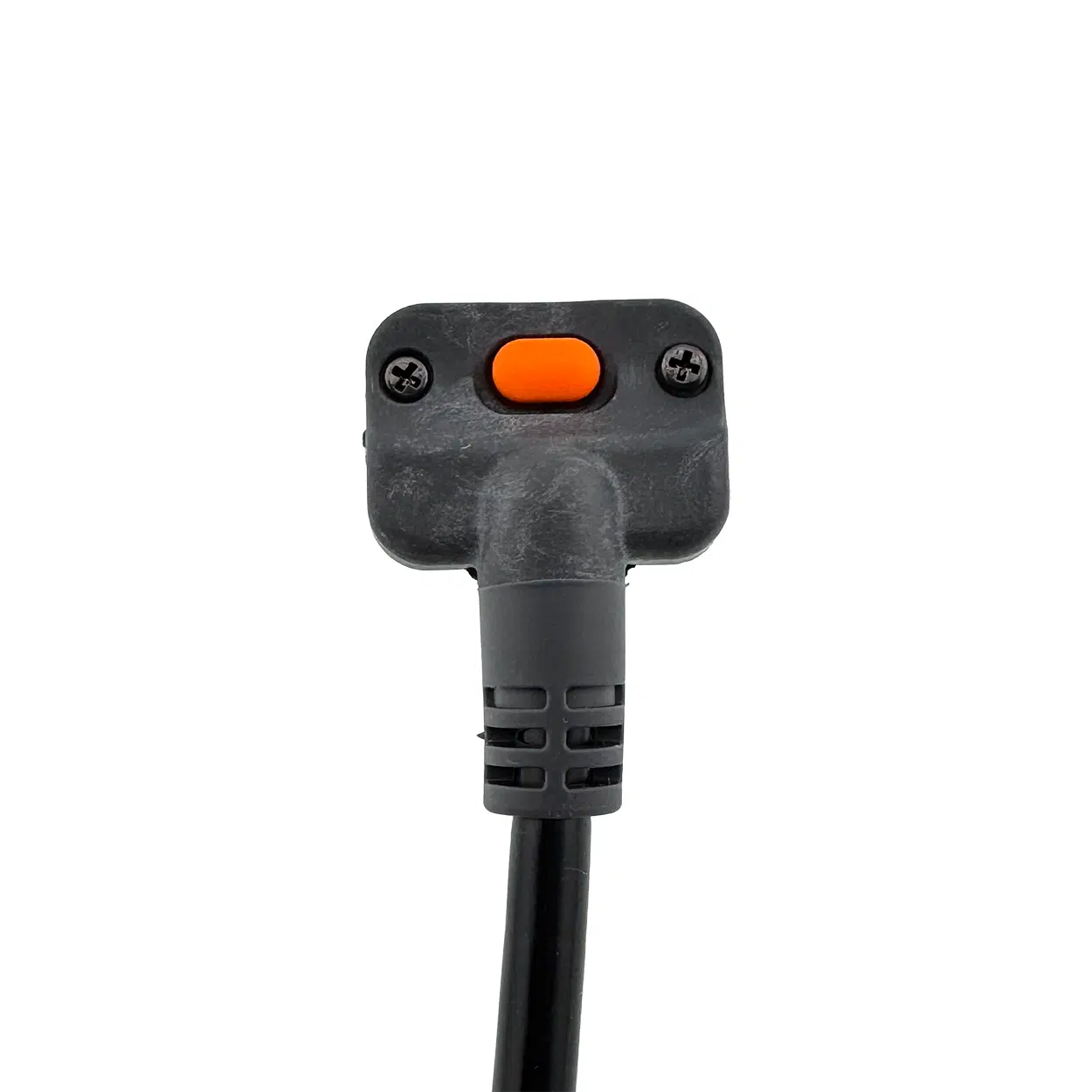

The Mitutoyo 05CZA662 is the Digimatic SPC data cable with built-in data send button for Mitutoyo coolant proof micrometers that use the Type B angled waterproof connector — available in 1-meter (05CZA662) and 2-meter (05CZA663) lengths. Connects to any GageWay wired interface or MobileCollect Digital Remote to route measurement data directly to your SPC software.
A compatible gage interface is required — this cable does not connect directly to a PC. — See our gage interface guide
Interface Connection – Mitutoyo Digimatic 10-pin (Type D)
Gage Connector – Type B (angled waterproof with button)
Standard Cable Length – 1 meter (05CZA662) | 2 meter (05CZA663) | Need more? The G-EXT extension cable adds 8 ft of in-line length between this cable and your interface.
Compatible Interfaces – GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote
Read Button – Yes
IP Rating – IP65
Gage Brand – Mitutoyo
Distributor – Sold by MicroRidge, a Certified Mitutoyo Distributor
Price range: $144.00 through $159.00
The Mitutoyo 05CZA662 is Mitutoyo’s Digimatic SPC data cable for coolant proof micrometers — available as an accessory for instruments that use the Type B angled waterproof SPC connector. When connected to a GageWay wired interface or MobileCollect Digital Remote, it passes measurement data directly from your gage to a PC, eliminating manual data entry and the transcription nonconformances that come with it.
This is not a standalone product. The 05CZA662 cable terminates at a gage interface — a GageWay or Digital Remote sits between the cable and your computer and is required to pass data to any SPC software or collection application. If you’re not sure which interface fits your setup, the two most common configurations are detailed below.
The 05CZA662 is compatible with Mitutoyo coolant proof micrometers that use the Type B angled waterproof SPC port, including:
Not sure if your gage uses the 05CZA662 / Type B connector? Contact us at sales@microridge.com or check your gage’s documentation for the SPC port type.
The 05CZA662 cable is the standard connection cable for the full GageWay wired interface product line. GageWay interfaces support the Mitutoyo Digimatic output natively — no baud rate configuration or communication parameters required. Plug the 05CZA662 into the gage input port on your GageWay, connect the interface to your PC via USB, and the gage is online.
GageWay Pro2, Pro4, Pro8 — Multi-channel interfaces supporting 2, 4, or 8 gages simultaneously via a single USB connection. Both USB keyboard wedge and USB serial outputs are built in. The Pro series includes configurable read switch ports, data parsing, TIR measurement modes, and AutoBaud detection for RS-232 devices. Best fit for fixed inspection stations, multi-gage measurement cells, and control plan implementations under ISO 9001, IATF 16949, or AS9100D where measurement traceability and process integration requirements are defined.
GageWay SM — Single-gage interface with USB serial output. Outputs to any SPC application monitoring a COM port. Pre-configured for Mitutoyo Digimatic gages — plug-and-play with no parameter setup.
GageWay KW — Single-gage interface with keyboard wedge output. Sends measurement data as keystrokes into Excel, cloud-based SPC platforms, or any application that accepts keyboard input.
Note: The 05CZA662 and 05CZA663 are the same cable in different lengths — 1 meter and 2 meter respectively. Choose the length appropriate for your station layout.
Both the 05CZA662 and the 05CZA624 are compatible with Mitutoyo coolant proof calipers and coolant proof micrometers. The difference is connector orientation at the gage end — and the right choice depends on your measurement task and how you need to access the gage.
The 05CZA662 uses an angled connector and is the preferred choice on coolant proof calipers when you need unobstructed access to the inner dimension jaws. The angled cable exits away from the jaw area, keeping the connection clear of the measurement zone during use.
The 05CZA624 uses a straight connector and is the preferred choice when you want the cable to exit straight back from the gage — common on micrometers where a low-profile straight connection suits the instrument’s orientation on the bench or in a fixture.
If you’re unsure which angle works best for your setup, contact us at sales@microridge.com.
If you purchased a Mitutoyo MDE QuantuMike (introduced in 2024), this is not the correct connector. The new MDE QuantuMike uses the 06AGL111 cable with Mitutoyo’s S1 connector and Digimatic D2 protocol. For a deeper explanation of what changed and why, read our complete guide to Mitutoyo’s SPC cable transitions. The connector on this page (05CZA662) is for the previous generation QuantuMike and other coolant proof micrometers in the Series 293 family.
MicroRidge is a Certified Mitutoyo Distributor. If you’re sourcing a 05CZA662 cable and also need a Mitutoyo gage — whether that’s a Digimatic indicator, height gage, depth gage, or caliper — contact our sales team at sales@microridge.com. We can source the instrument and the interface cable together and confirm compatibility before anything ships.
The 05CZA662 is also compatible with the MobileCollect Digital Remote for installations where the gage is stationary and wired into a MobileCollect system rather than a standalone GageWay interface. The Digital Remote provides two-way Digimatic communication — it can receive measurement data from the gage and initiate readings remotely, similar in function to the Command Mobile Module but over a wired connection.
This configuration is most applicable for fixed measurement stations integrated into a larger MobileCollect Wireless network, where the gage itself doesn’t move but the data still needs to route through the MobileCollect infrastructure. For the majority of single-station or multi-station wired setups, a GageWay interface is the more direct and cost-effective path.
If your measurement application is better served by wireless SPC data collection, MicroRidge offers wireless connector alternatives for the same Mitutoyo 05CZA662 gage family — replacing the wired cable with a wireless transmitter connector:
M3 Connector — Mitutoyo 05CZA662 — For the Mini Mobile Module EVO (M3E) wireless transmitter. Readings are triggered from the transmitter body. Best for handheld or portable gages used across multiple measurement points.
DC Connector — Mitutoyo 05CZA662 — For the Command Mobile Module (DC) wireless transmitter. Supports simultaneous multi-gage triggering from the MobileCollect Base or SPC software — common in large fixtures or multi-point inspection setups.
05CZA662 / 05CZA663 Specs | |
|---|---|
Interface Connection | Mitutoyo Digimatic 10-pin (Type D) |
Gage Connector | Type B (angled waterproof with button) |
Standard Cable Length | 1 meter (05CZA662) | 2 meter (05CZA663) |
Compatible Interfaces | GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote |
Read Button | Yes |
IP Rating | IP65 |
Gage Brand | Mitutoyo |
Distributor | Sold by MicroRidge, a Certified Mitutoyo Distributor |
