The Mitutoyo 937387 is the Digimatic SPC data cable for indicators, MU-Checkers, displays, Litematic, Heightmatic, Digi Derm, linear height gages, and hardness testers that use the Type E round 6-pin connector — available in 1-meter (937387) and 2-meter (965013) lengths. Connects to any GageWay wired interface or MobileCollect Digital Remote to route measurement data directly to your SPC software.
A compatible gage interface is required — this cable does not connect directly to a PC. — See our gage interface guide
Interface Connection – Mitutoyo Digimatic 10-pin (Type D)

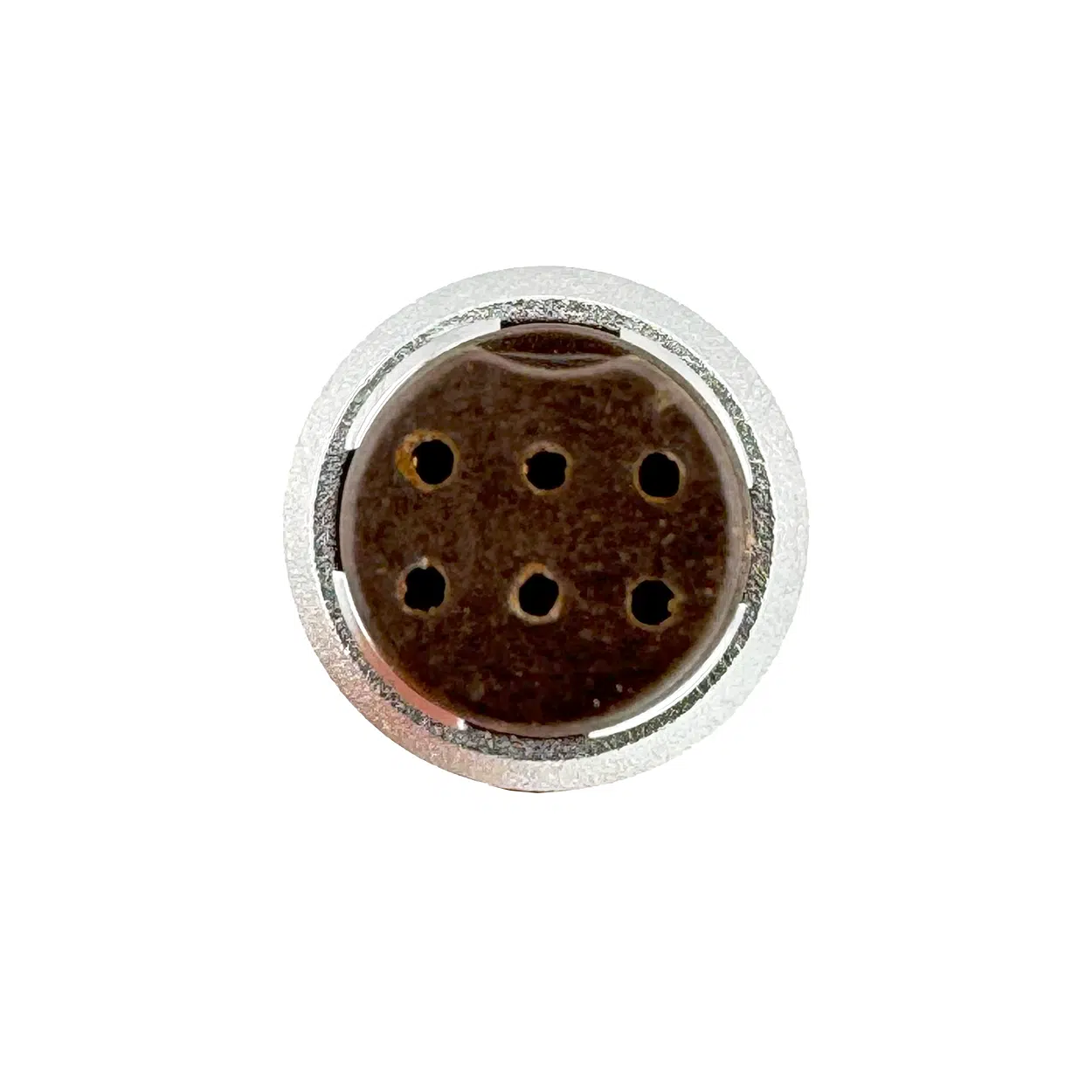

Gage Connector – Type E (round 6-pin)
Standard Cable Length – 1 meter (937387) | 2 meter (965013) | Need more? The G-EXT extension cable adds 8 ft of in-line length between this cable and your interface.
Compatible Interfaces – GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote
Read Button – No (readings triggered by interface, foot switch, or hand switch)
IP Rating – N/A
Gage Brand – Mitutoyo
Distributor – Sold by MicroRidge, a Certified Mitutoyo Distributor
Price range: $88.00 through $104.00
The Mitutoyo 937387 is Mitutoyo’s Digimatic SPC data cable for a broad range of specialty measurement instruments — available as an accessory for indicators, MU-Checkers, displays, Litematic, Heightmatic, Digi Derm gages, linear height gages, and hardness testers that use the Type E round 6-pin SPC connector. When connected to a GageWay wired interface or MobileCollect Digital Remote, it passes measurement data directly from your gage to a PC, eliminating manual data entry and the transcription nonconformances that come with it.
This is not a standalone product. The 937387 cable terminates at a gage interface — a GageWay or Digital Remote sits between the cable and your computer and is required to pass data to any SPC software or collection application. If you’re not sure which interface fits your setup, the two most common configurations are detailed below.
The 937387 is compatible with Mitutoyo instruments that use the Type E round 6-pin SPC connector, including:
Not sure if your gage uses the 937387 / Type E connector? Contact us at sales@microridge.com or check your gage’s documentation for the SPC port type.
The 937387 cable is the standard connection cable for the full GageWay wired interface product line. GageWay interfaces support the Mitutoyo Digimatic output natively — no baud rate configuration or communication parameters required. Plug the 937387 into the gage input port on your GageWay, connect the interface to your PC via USB, and the gage is online.

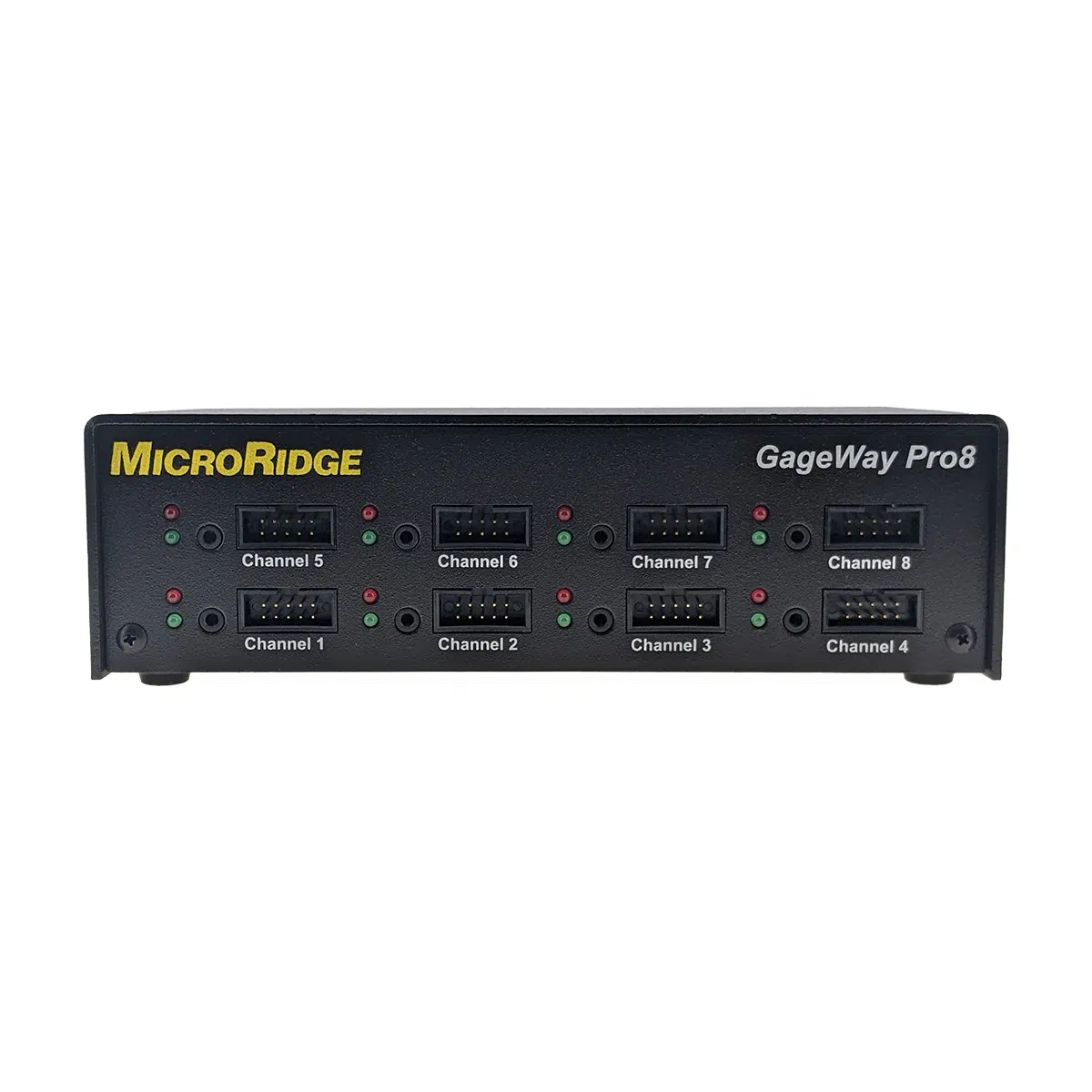

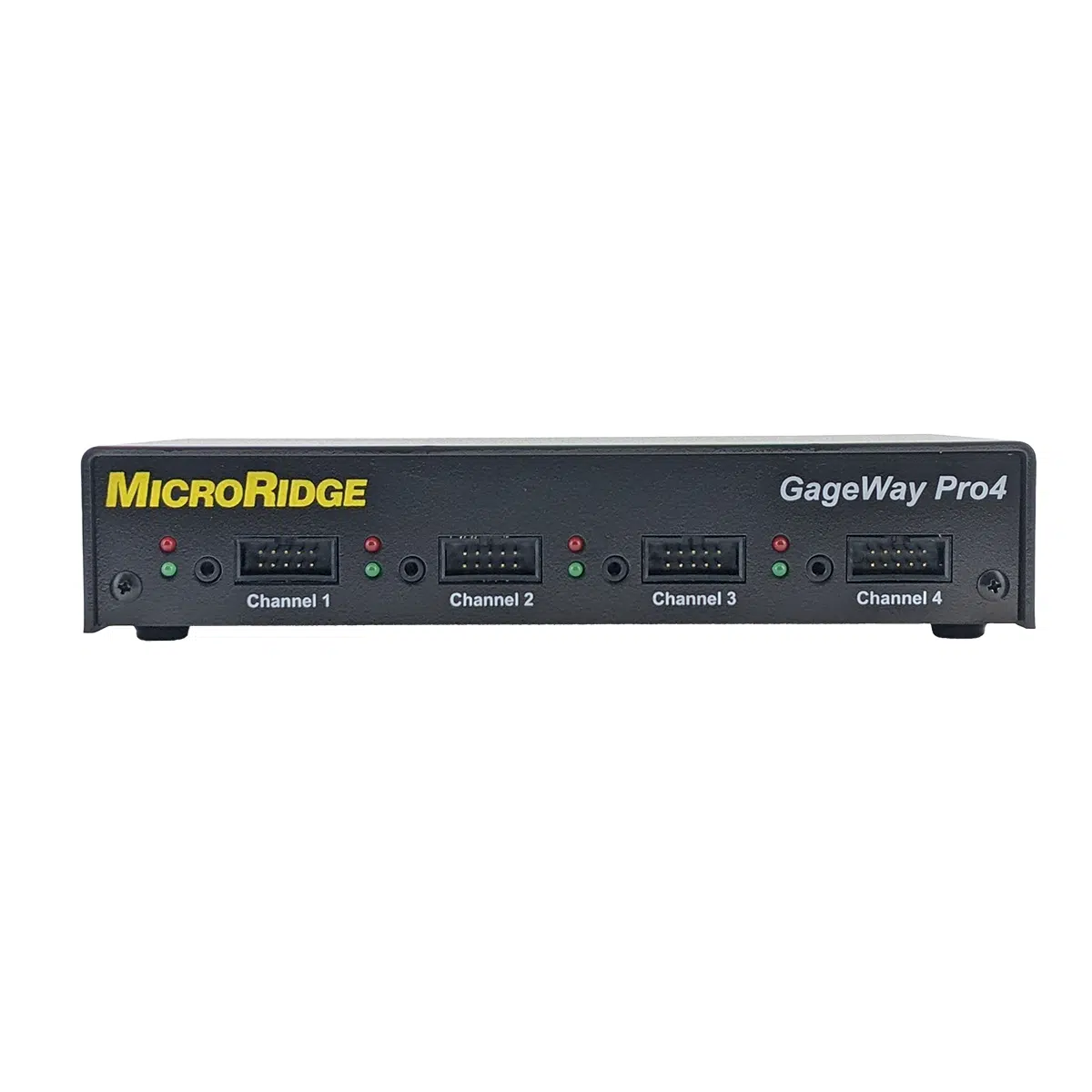

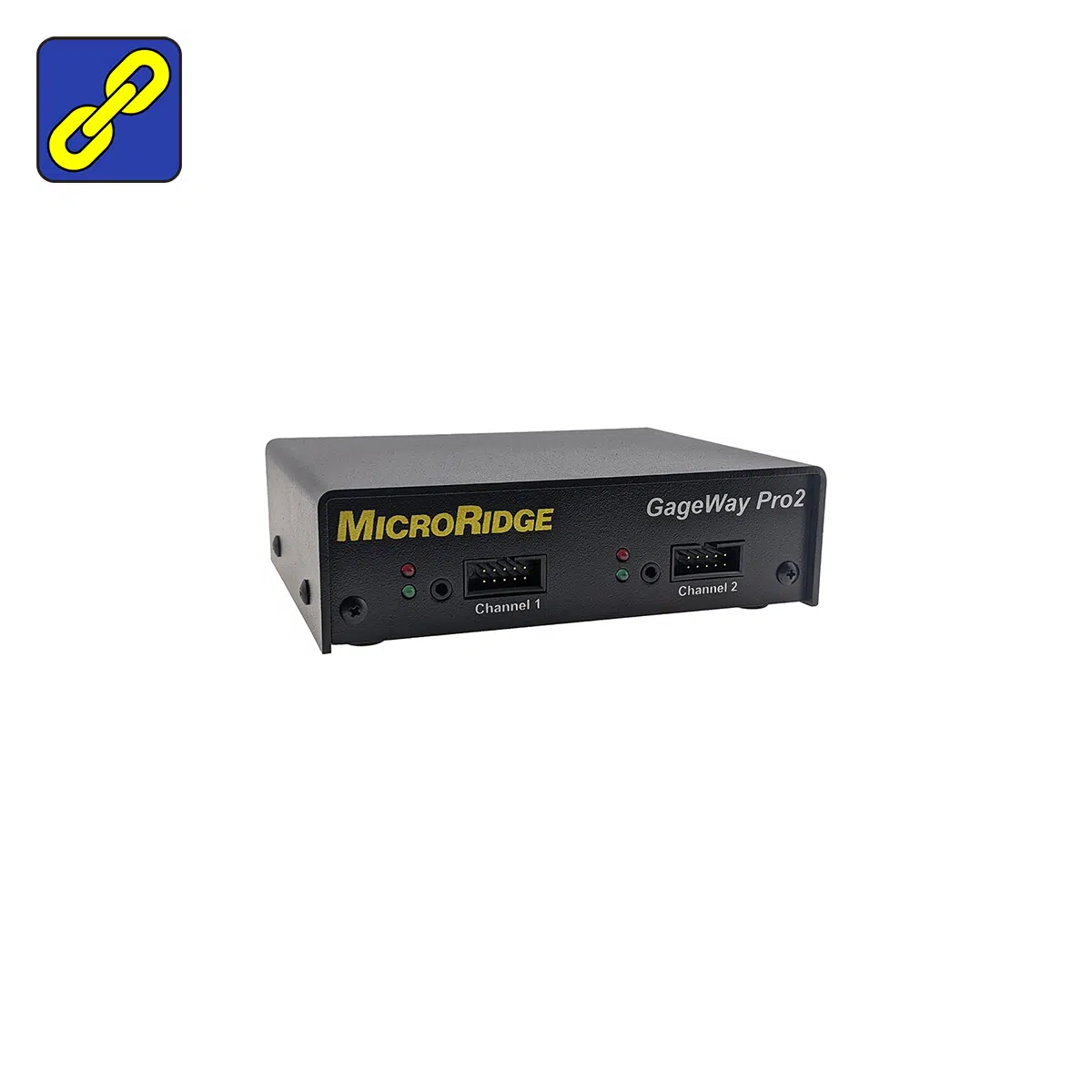

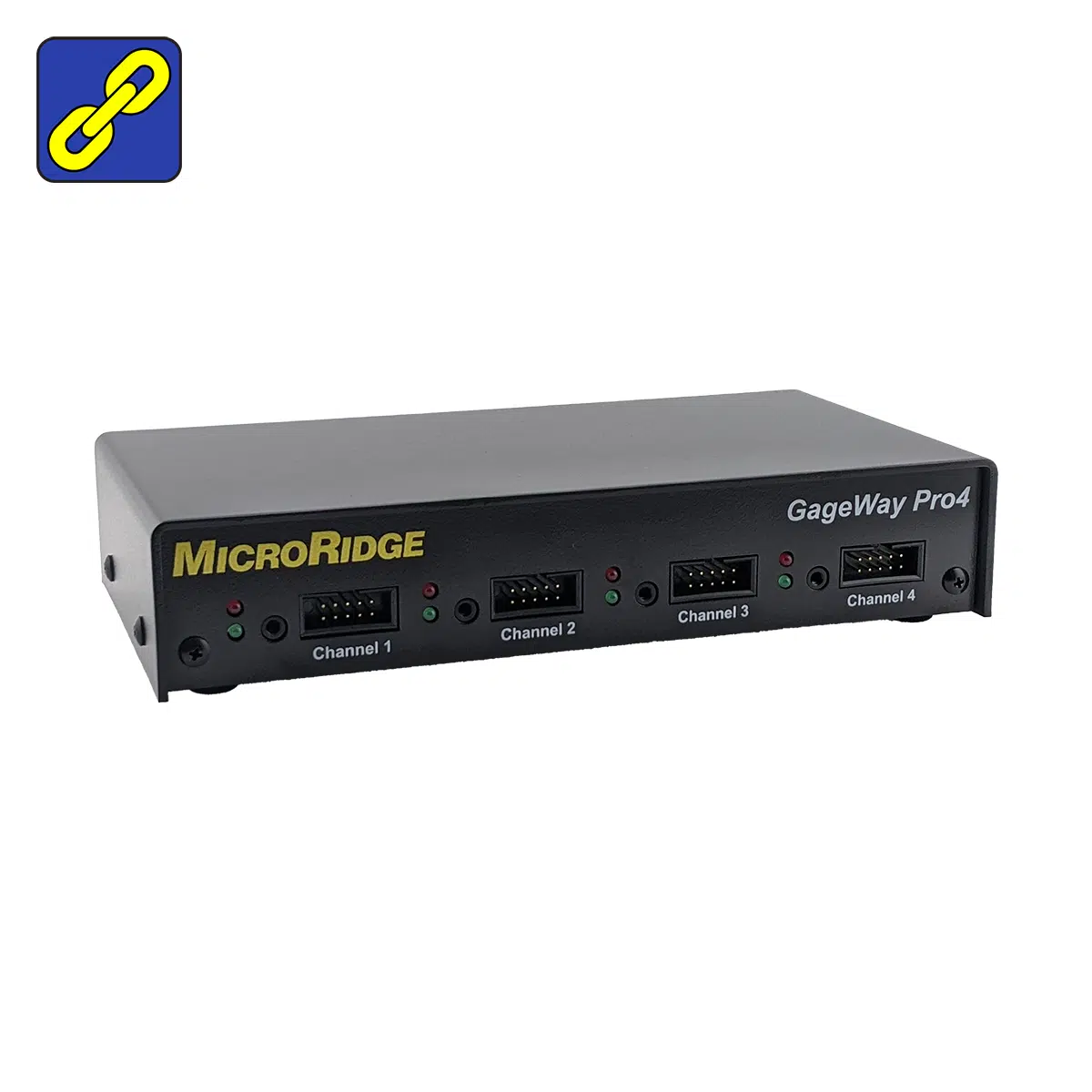

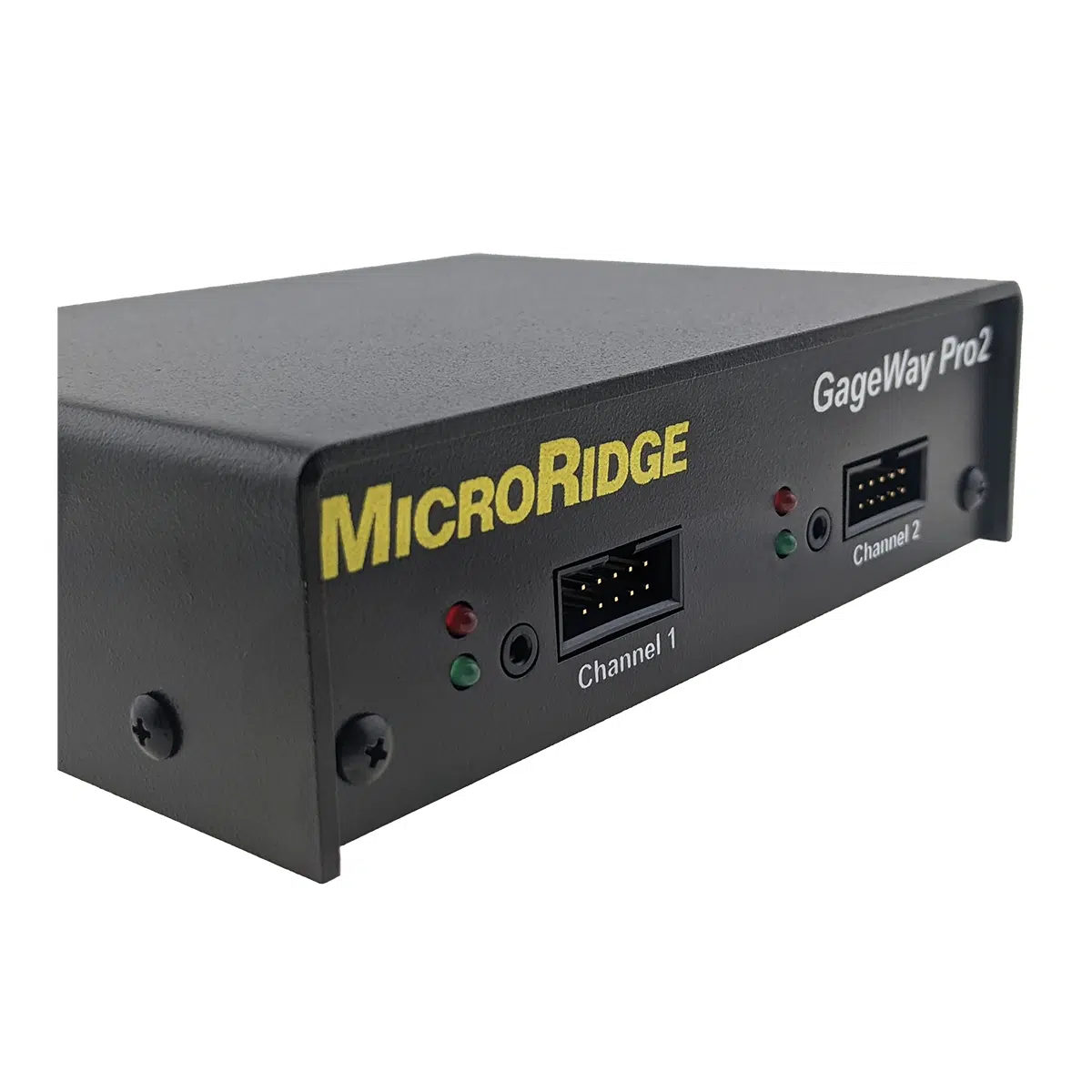

GageWay Pro2, Pro4, Pro8 — Multi-channel interfaces supporting 2, 4, or 8 gages simultaneously via a single USB connection. Both USB keyboard wedge and USB serial outputs are built in. The Pro series includes configurable read switch ports, data parsing, TIR measurement modes, and AutoBaud detection for RS-232 devices. Best fit for fixed inspection stations, multi-gage measurement cells, and control plan implementations under ISO 9001, IATF 16949, or AS9100D where measurement traceability and process integration requirements are defined.

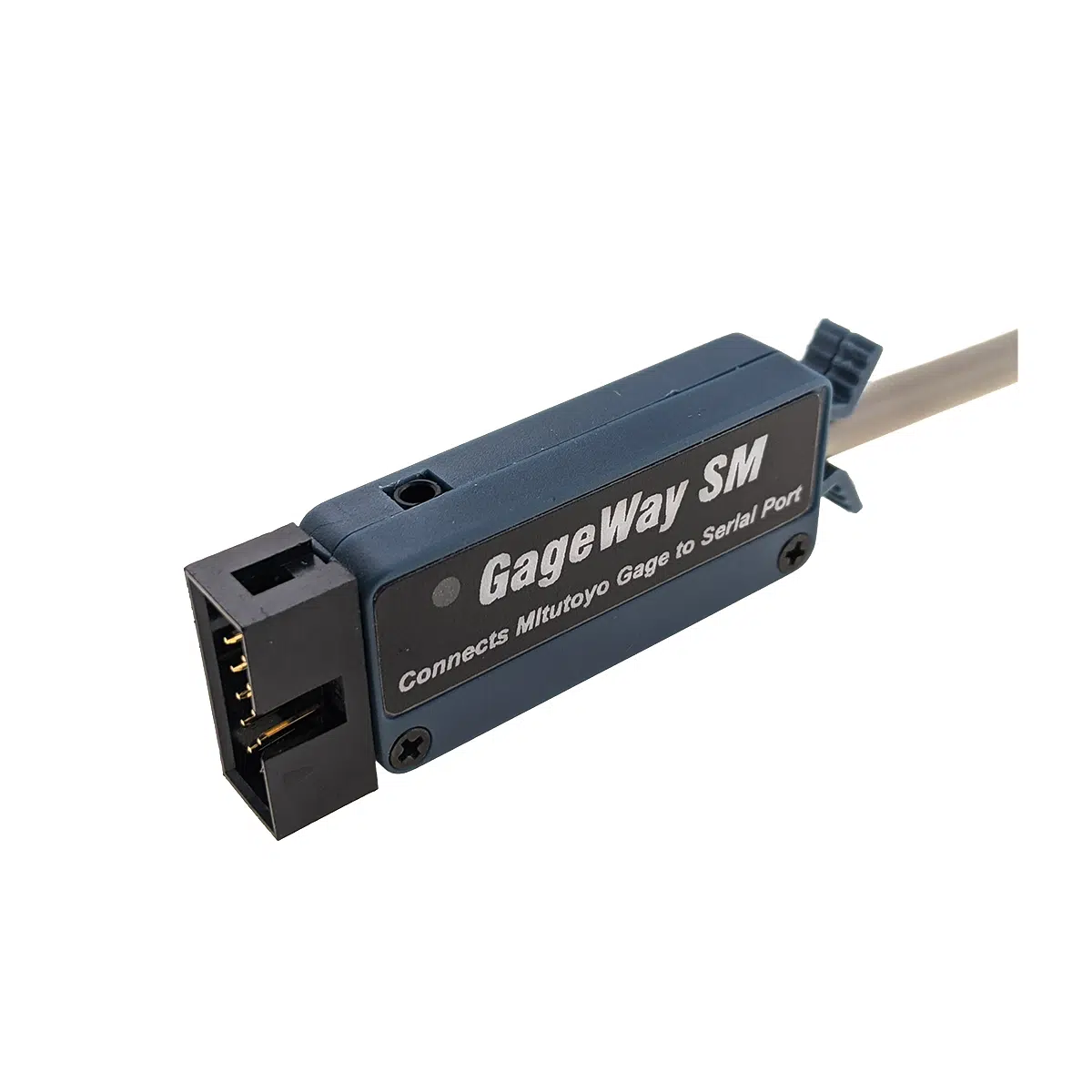

GageWay SM — Single-gage interface with USB serial output. Outputs to any SPC application monitoring a COM port. Pre-configured for Mitutoyo Digimatic gages — plug-and-play with no parameter setup.
GageWay KW — Single-gage interface with keyboard wedge output. Sends measurement data as keystrokes into Excel, cloud-based SPC platforms, or any application that accepts keyboard input.
Note: The 937387 and 965013 are the same cable in different lengths — 1 meter and 2 meter respectively. Choose the length appropriate for your station layout.
MicroRidge is a Certified Mitutoyo Distributor. If you’re sourcing a 937387 cable and also need a Mitutoyo gage — whether that’s a Digimatic indicator, height gage, depth gage, or caliper — contact our sales team at sales@microridge.com. We can source the instrument and the interface cable together and confirm compatibility before anything ships.
The 937387 is also compatible with the MobileCollect Digital Remote for installations where the gage is stationary and wired into a MobileCollect system rather than a standalone GageWay interface. The Digital Remote provides two-way Digimatic communication — it can receive measurement data from the gage and initiate readings remotely, similar in function to the Command Mobile Module but over a wired connection.
This configuration is most applicable for fixed measurement stations integrated into a larger MobileCollect Wireless network, where the gage itself doesn’t move but the data still needs to route through the MobileCollect infrastructure. For the majority of single-station or multi-station wired setups, a GageWay interface is the more direct and cost-effective path.
If your measurement application is better served by wireless SPC data collection, MicroRidge offers wireless connector alternatives for the same Mitutoyo 937387 gage family — replacing the wired cable with a wireless transmitter connector:
M3 Connector — Mitutoyo 937387 — For the Mini Mobile Module EVO (M3E) wireless transmitter. Readings are triggered from the transmitter body. Best for handheld or portable gages used across multiple measurement points.
DC Connector — Mitutoyo 937387 — For the Command Mobile Module (DC) wireless transmitter. Supports simultaneous multi-gage triggering from the MobileCollect Base or SPC software — common in large fixtures or multi-point inspection setups.
937387 / 965013 Specs | |
|---|---|
Interface Connection | Mitutoyo Digimatic 10-pin (Type D) |
Gage Connector | Type E (round 6-pin) |
Standard Cable Length | 1 meter (937387) | 2 meter (965013) |
Compatible Interfaces | GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote |
Read Button | No (readings triggered by interface, foot switch, or hand switch) |
IP Rating | N/A |
Gage Brand | Mitutoyo |
Distributor | Sold by MicroRidge, a Certified Mitutoyo Distributor |
