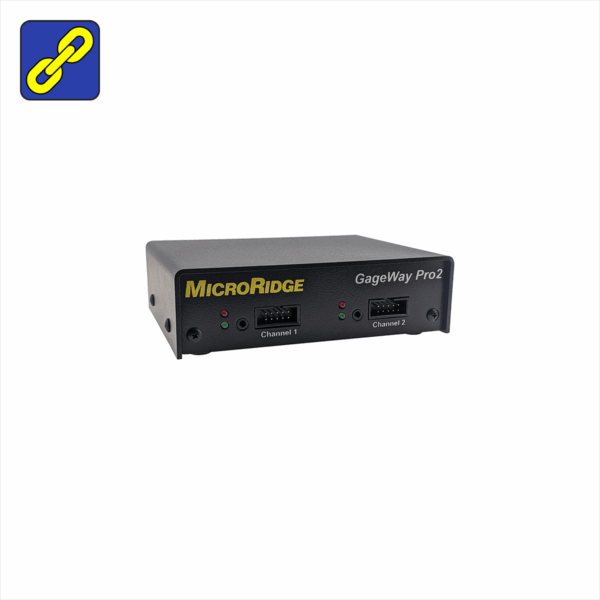

The GageWay Pro 2 connects two digital or RS-232 gages to a PC through a single USB port. Both USB keyboard wedge and USB serial (virtual COM port) outputs are built in — no configuration required to switch between them, and no external AC adapter needed. Supports Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, Starrett, Sylvac, and any gage with Mitutoyo-compatible output, plus RS-232 devices via the GW-LC Level Converter Cable.
Gage Inputs – 2
Output – USB Keyboard Wedge + USB Serial (VCP) — both built in
RS-232 Support – Yes — all front panel ports (GW-LC Level Converter Cable required)
Power – USB powered — no AC adapter required
Configuration – Free Windows Setup Software (GageWay Pro Setup)
Expandable – No — see Pro4 or Pro8 for chaining
Gage Compatibility – Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, Starrett, Sylvac, CDI, and others
Origin – Designed & Made in the USA
$505.00
Most two-channel gage interfaces force a choice at purchase: keyboard wedge output or USB serial output — not both. The GageWay Pro2 eliminates that constraint. Both output modes are built into the same unit. Connect via the keyboard wedge port to stream readings directly into Excel, Google Sheets, or cloud-based SPC platforms. Connect via the USB serial port for direct integration with SPC software such as MeasurLink, InfinityQS, DataPage+, or any application that monitors a COM port. Switching between output modes requires only moving the USB cable to the appropriate port — no hardware changes, no additional purchases, no different model required.
The keyboard wedge port requires no driver installation — plug in and it works immediately, with no IT involvement required. The USB serial port requires a one-time FTDI VCP driver install, available free from MicroRidge. The keyboard wedge transfer rate defaults to approximately 72 characters per second and can be reduced to 30 or 8 characters per second for applications or systems that cannot keep pace at the default rate.
Also included: ComTestSerial, a free serial communications test program that displays exactly what data is being sent from your gages and the GageWay Pro interface. It is the fastest way to verify a connection, debug a new gage setup, or confirm RS-232 communication parameters before deploying to production.
The GageWay Pro2 supports digital gages from Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, Starrett, CDI, Sylvac, and any manufacturer using Mitutoyo-compatible Digimatic output. RS-232 devices from Ohaus, Mettler Toledo, and other serial instrument manufacturers are supported on all front panel ports via the GW-LC cable. MicroRidge supplies cables for over 3,500 gage models — interface and cable ship from a single source, simplifying AVL management for quality departments.
Not sure if your gage is supported? Contact MicroRidge — we’ll confirm compatibility and identify the correct cable before you order.

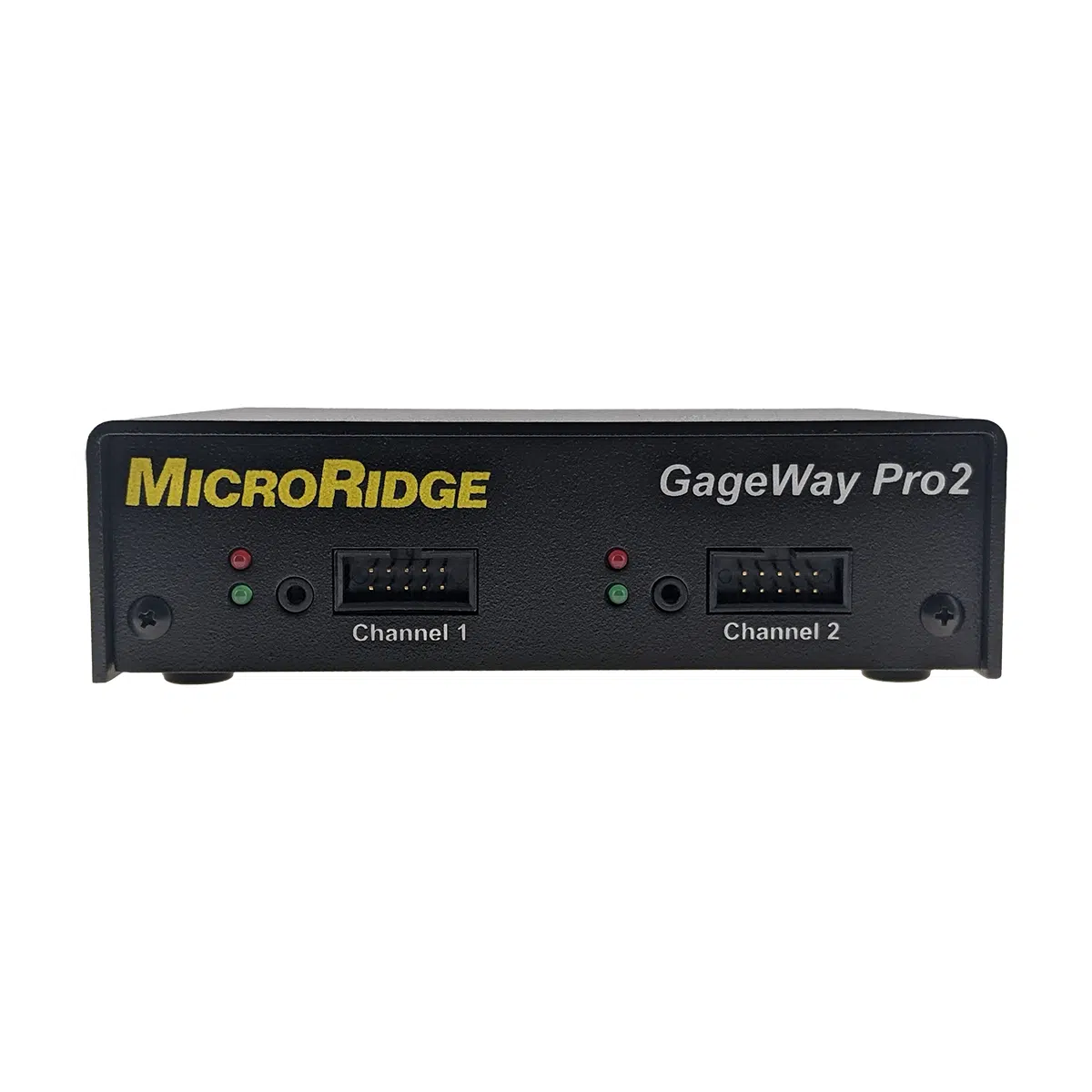

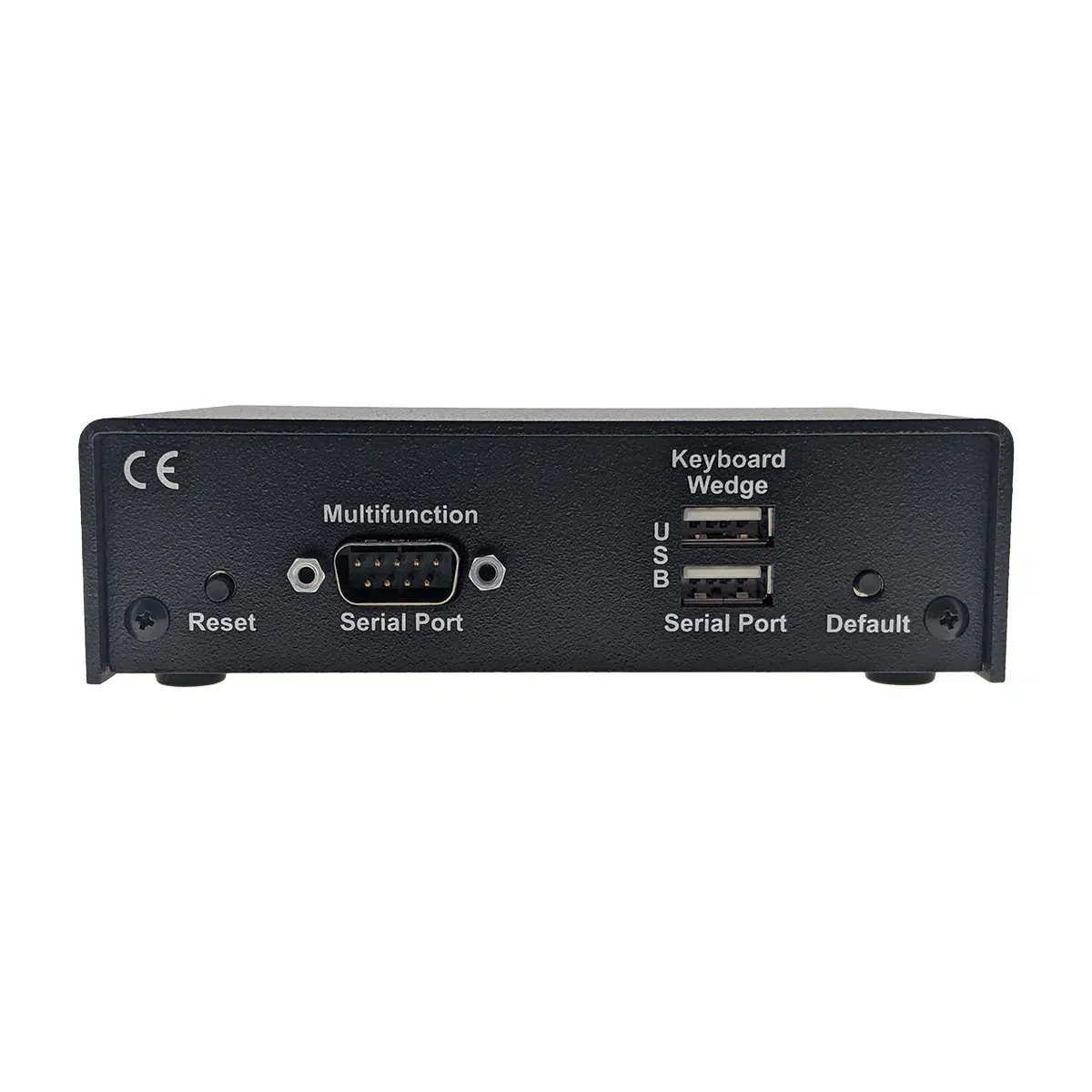

Digital gages plug directly into the 10-pin front panel connectors. RS-232 devices — scales, force gauges, height gages, and other serial instruments — connect to the same front panel ports via the GW-LC Level Converter Cable. The AutoBaud feature automatically detects baud rate and communication parameters for any RS-232 device connected through a GW-LC Cable, eliminating manual COM port configuration. A rear-panel Multifunction Serial Port (DB9) accepts one additional RS-232 serial device as an input — useful for mixed-instrument stations where one device doesn’t fit a front panel port. The Pro2 does not include a DB9 RS-232 output port to the PC; all PC-side output runs through the two USB ports. If a DB9 RS-232 output connection is required, the GageWay Pro4 or Pro8 is the correct model.
Every front panel channel on the GageWay Pro2 has its own dedicated read switch port. Each port accepts a foot switch or hand switch independently, giving each gage its own trigger — critical for two-gage fixture applications where gages are measured in sequence or independently by the operator.
Custom read switch sequences allow a single switch press to execute a programmed series of reads across both channels in any defined order — for example: read Channel 1, pause, read Channel 2, read Channel 1 again. Up to four sequences can be configured and stored in the interface. Custom sequences are defined in the GageWay Pro Setup Program and saved to non-volatile memory.
Host computer commands (USB serial port only) give the host application direct control over every read function. Key commands include:
Command | Function |
|---|---|
<RA | Read Channel 1 (A) |
<RB | Read Channel 2 (B) |
<R* | Read all channels |
<BA | Begin continuous read — Channel 1 |
<CA00025 | Get 25 continuous readings — Channel 1 |
<I1A | Begin TIR read — Channel 1 |
<SA | Stop continuous read — Channel 1 |
Host commands are compatible with any application that can write to a serial COM port, including SPC software, custom LabVIEW or Python scripts, and PLC serial interfaces. This makes the GageWay Pro2 suitable for automated two-gage fixture stations where the host application controls measurement timing and data routing. The commands listed above are a representative sample only — the full command set is documented in the GageWay Pro User’s Guide.
Each gage input on the GageWay Pro2 has its own dedicated processor — separate from the communications processor managing the host connection. This architecture eliminates channel contention: both gages can be polled simultaneously without throughput degradation. The result is deterministic measurement collection, a requirement in applications governed by SPC control plans or where measurement cycle time is a constrained variable in the production process.
Every GageWay Pro2 ships with the free Windows-based GageWay Pro Setup Program. All parameters — read modes, output format, data parsing, RS-232 channel settings, keyboard layout, and trigger behavior — are configured through a graphical interface with on-screen help text on every control. No DIP switches. No terminal commands. No cover removal.
For most digital gage applications, default settings work out of the box and no configuration is needed at all. When advanced setup is required, the Setup Program detects the connected interface, reads its current configuration, and lets you modify and push changes in a single operation. Completed setups save to file — useful for documentation, backup, and replicating a configuration to a replacement unit. Firmware is field-upgradeable via the USB serial port at no charge from the MicroRidge GageWay firmware updates page.
The Pro2 is the correct interface when:
For single-gage applications: see the GageWay KW (keyboard wedge) or GageWay SM (USB serial). For four or eight gages, or applications requiring interface chaining up to 72 total inputs: see the GageWay Pro4 or GageWay Pro8.
Not sure which interface or output mode is right for your setup? How to Connect a Digital Gage to Your Computer →
Q: Does the GageWay Pro2 require an external power supply?
— No. The GageWay Pro2 is powered entirely through its USB connection to the host PC. No AC adapter or separate power supply is required.
Q: Can I use both the keyboard wedge output and the USB serial output?
— Not simultaneously — both outputs are built into the unit, but you connect one USB cable to either the keyboard wedge port or the USB serial port depending on your application. Switching between them requires only moving the USB cable to the other port. No hardware changes, no additional model required.
Q: Can I connect RS-232 gages to the GageWay Pro2?
— Yes. RS-232 devices connect to the front panel 10-pin ports via the GW-LC Level Converter Cable. The rear-panel Multifunction Serial Port can accept one additional RS-232 serial device. AutoBaud detection is available on front panel ports (with current GW-LC Cable). Note: the Pro2 does not include a DB9 output serial port — all PC output is via USB. If DB9 RS-232 output to a PC or downstream device is required, the GageWay Pro4 or Pro8 is the correct choice.
Q: What gage brands are compatible with the GageWay Pro2?
— Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, Starrett, CDI, Sylvac, and any gage with Mitutoyo-compatible Digimatic output. RS-232 devices from Ohaus, Mettler Toledo, and others are supported via the GW-LC cable. MicroRidge supports over 3,500 gage models.
Q: How do I configure the GageWay Pro2?
— For basic digital gage use, no configuration is required — default settings work out of the box. When advanced setup is needed, use the free GageWay Pro Setup Program — a Windows GUI application that connects to the interface, reads its current configuration, and lets you set all parameters including read modes, RS-232 settings, output format, and keyboard layout without opening the unit. Settings save to file for backup and can be pushed to replacement units. No DIP switches or terminal commands involved.
Also in the GageWay Family:
You’ll also need a gage cable. The GageWay Pro2 requires an interface cable matched to your specific gage model. MicroRidge stocks cables for Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, CDI, Starrett, and others. See the Gage Cables tab above, or contact sales@microridge.com to find the right cable for your gage.

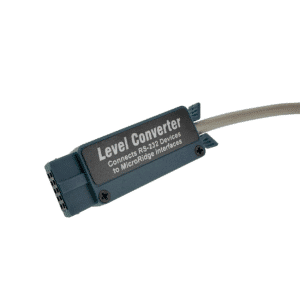

Need to connect RS-232 devices? The GW-LC Level Converter Cable enables any front panel port on the GageWay Pro2 to accept RS-232 serial devices with full AutoBaud detection. Shop GW-LC →
Only need one gage? The single-gage GageWay interfaces are a simpler, lower-cost solution:
Accessories:
GageWay Pro2 (GW-PRO2) Specs | |
|---|---|
Part Number | GW-PRO2 |
Number of Gage Inputs | 2 |
Input Protocol — Digital | Mitutoyo Digimatic 10-pin (Type D Male) |
Input Protocol — Serial | RS-232 (front panel via GW-LC Level Converter; rear Multifunction Serial Port) |
Output — USB Keyboard Wedge | Yes (HID, no driver required) |
Output — USB Serial / VCP | Yes (driver required) |
Output — DB9 RS-232 | No (Pro4 and Pro8 only) |
Rear Multifunction Serial Port | Yes — additional RS-232 input only; not a PC output port |
Keyboard Wedge Layouts | USA/Canada (default), UK/Australia, Mexico/Latin America, French, Belgian, German |
Keyboard Wedge Transfer Rate | ~72 chars/sec (default); adjustable to ~30 or ~8 chars/sec |
Enclosure | Rugged metal |
Firmware Updates | Field-upgradeable via USB |
Compliance | RoHS 2 / REACH |
Compatible Gage Brands | Mitutoyo, Mahr Federal, Ono Sokki, Fowler, INSIZE, Starrett, Sylvac, CDI, Ohaus, Mettler Toledo, and others |
Warranty | 12 months from date of purchase |
Origin | Designed & Made in the USA |
