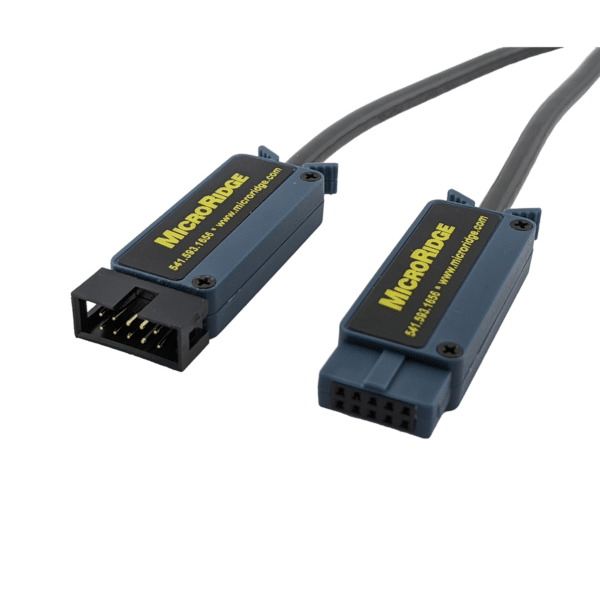

Male-to-female Mitutoyo 10-pin extension cable. Inserts in-line with any Digital Interface cable equipped with a Mitutoyo Digimatic 10-pin connector to add reach between the gage and your MicroRidge interface. All pins connected. Standard 8 ft length.
Connector Type – Mitutoyo Digimatic 10-pin (Type D Male and Female)
Standard Cable Length – 8 feet, custom lengths available
Compatible Interfaces – GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote
IP Rating – N/A
Wiring – Male-to-Female – all pins connected
Manufacturer – MicroRidge (Designed & Made in the USA)
$85.00
The G-EXT-8 adds cable length between a Mitutoyo 10-pin Digital Interface cable and your MicroRidge gage interface. It is compatible with any Digital Interface cable — Mitutoyo or non-Mitutoyo — that uses a Mitutoyo Digimatic 10-pin connector on the interface end, including cables for Mahr Federal, CDI, Starrett, and Kroeplin gages. It inserts in-line at the interface end — useful when workstation layout, fixture placement, or measurement station configuration puts the interface out of standard cable reach.
Wired male-to-female with all 10 pins connected, the G-EXT-8 maintains full signal integrity across the Digimatic interface.
Standard Length: 8 ft | Custom lengths available — contact us.
Standard Mitutoyo Digital Interface cables are available in 1 meter and 2 meter lengths. In many measurement station configurations, that’s not enough — particularly when:
The G-EXT-8 inserts in-line between the gage cable and the interface, adding 8 ft of reach without replacing the existing cable. Custom lengths are available for installations where even 8 ft falls short — contact us with your application requirements.
GageWay Pro — MicroRidge’s most advanced wired gage interface, available in 2, 4, and 8-channel configurations. Supports USB keyboard wedge, USB serial, and RS-232 output with configurable read modes and data parsing.
GageWay SM — Single-gage wired interface with USB serial or RS-232 output. A compact, cost-effective entry point for automated gage data collection with read switch support.
GageWay KW — Single-gage keyboard wedge interface. Sends measurement data directly to any application that accepts keyboard input — Excel, cloud-based SPC, or any other entry field — with no software driver required.
MobileCollect Digital Remote — Wireless transmitter for Mitutoyo 10-pin digital gages. Pairs with the MobileCollect Base over MicroRidge’s proprietary RM2.4 wireless protocol, with up to 133 ft of range and support for remote gage triggering.
SKU | Cable Description |
|---|---|
905338 / 905409 | Mitutoyo (height gages, indicators, depth gages, scale units) |
06AGL011 / 06AGL021 | Mitutoyo (high-accuracy gages, Digimatic D2) |
06AGL111 / 06AGL121 | Mitutoyo QuantuMike Micrometer |
959149 / 959150 | Mitutoyo with Data Send (calipers, height gages, depth gages) |
04AZB512 | Mitutoyo Right-Angle with Data Send |
05CZA624 / 05CZA625 | Mitutoyo Coolant Proof Caliper |
05CZA662 / 05CZA663 | Mitutoyo Coolant Proof Micrometer |
21EAA194 / 21EAA190 | Mitutoyo Dust/Waterproof Indicator |
936937 / 965014 | Mitutoyo (micrometers, indicators, Holtest, bench micrometers) |
937387 / 965013 | Mitutoyo (indicators, MU-Checkers, Litematic, hardness testers) |
SKU | Cable Description |
|---|---|
4102915 | Mahr Federal Caliper with Data Send |
4346021 | Mahr Federal (Digimar, MarCator, Millimess, µMaxum II) |
4102606 | Mahr DK-D1 with Data Send |
G-FED-MAX | Federal Maxum Gage Cable |
G-FEDMAXE2 | Federal Maxum E-2 Gage Cable |
G-FED-MCRO | Federal µMaxum Gage Cable |
SKU | Cable Description |
|---|---|
G-LP-MIT | CDI Logic Plus / Logic Basic / Starrett 2700 Series |
G-LP-MIT-P | CDI Logic Plus with Interface Power |
SKU | Cable Description |
|---|---|
22806-MIT | Kroeplin Gage Interface Adapter |
G-EXT-8 Specs | |
|---|---|
Connector Type | Mitutoyo Digimatic 10-pin (Type D Male and Female) |
Standard Cable Length | 8 feet, custom lengths available |
Compatible Interfaces | GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote |
IP Rating | N/A |
Wiring | Male-to-Female | all pins connected |
Manufacturer | MicroRidge (Designed & Made in the USA) |
How do I extend the cable length on my Mitutoyo digital gage? Insert the G-EXT-8 extension cable between your existing Mitutoyo 10-pin Digital Interface cable and your gage interface. The G-EXT-8 is wired male-to-female with all pins connected and adds 8 ft of reach without replacing the existing cable. Custom lengths are available for applications requiring additional length — contact us with your requirements.
Will the G-EXT-8 work with my fixture-mounted gage setup? Yes. The G-EXT-8 is commonly used in fixture and measurement station installations where the standard 1 meter or 2 meter cable length doesn’t reach the interface. It inserts in-line at the interface end of the gage cable and is compatible with GageWay Pro, GageWay SM, GageWay KW, and MobileCollect Digital Remote.
Can I use more than one G-EXT-8 to get additional length? Custom lengths are available. If your application requires more than 8 ft of extension, contact us to discuss a custom cable length rather than stacking multiple extension cables.
Does the G-EXT-8 work with all MicroRidge gage cables? The G-EXT-8 is compatible with Digital Interface cables that use a Mitutoyo Digimatic 10-pin connector on the interface end. It is not compatible with V2, M3, or DC connector cables, or with the G-ONOSOK-6.
