Wirelessly connect your Mitutoyo Digimatic gage with a 2×5 10-pin connector to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module (M3) connector for Mitutoyo gages that have the 936937 2×5 Digimatic 10-pin output directly on the gage body. Pairs with the Mini Mobile Module M3 transmitter to bring your gage online with MobileCollect.
If you have a Mitutoyo ID-H or ID-F external powered indicator, contact MicroRidge at sales@microridge.com before ordering — these instruments may need a specialized configuration. We’ll verify you’re getting the right connector and transmitter setup for your specific gage.
Transmitter Family – Mini Mobile Module (M3)
Standard Cable Length – 6.5″
SKU – MC-M3-936937-6.5
Required Hardware – Mini Mobile Module (M3) and MobileCollect Base
Read Button – No, Readings Initiated on Mini Mobile Module (M3) or Gage
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$134.00
The M3 Wireless Connector for Mitutoyo 936937 gages is the link between your Mitutoyo gage with a 2×5 Digimatic 10-pin connector and the MobileCollect Wireless measurement collection system. Once connected, measurement data transmits wirelessly from the gage to your SPC software — no manual data entry, no transcription errors, no clipboard in between.

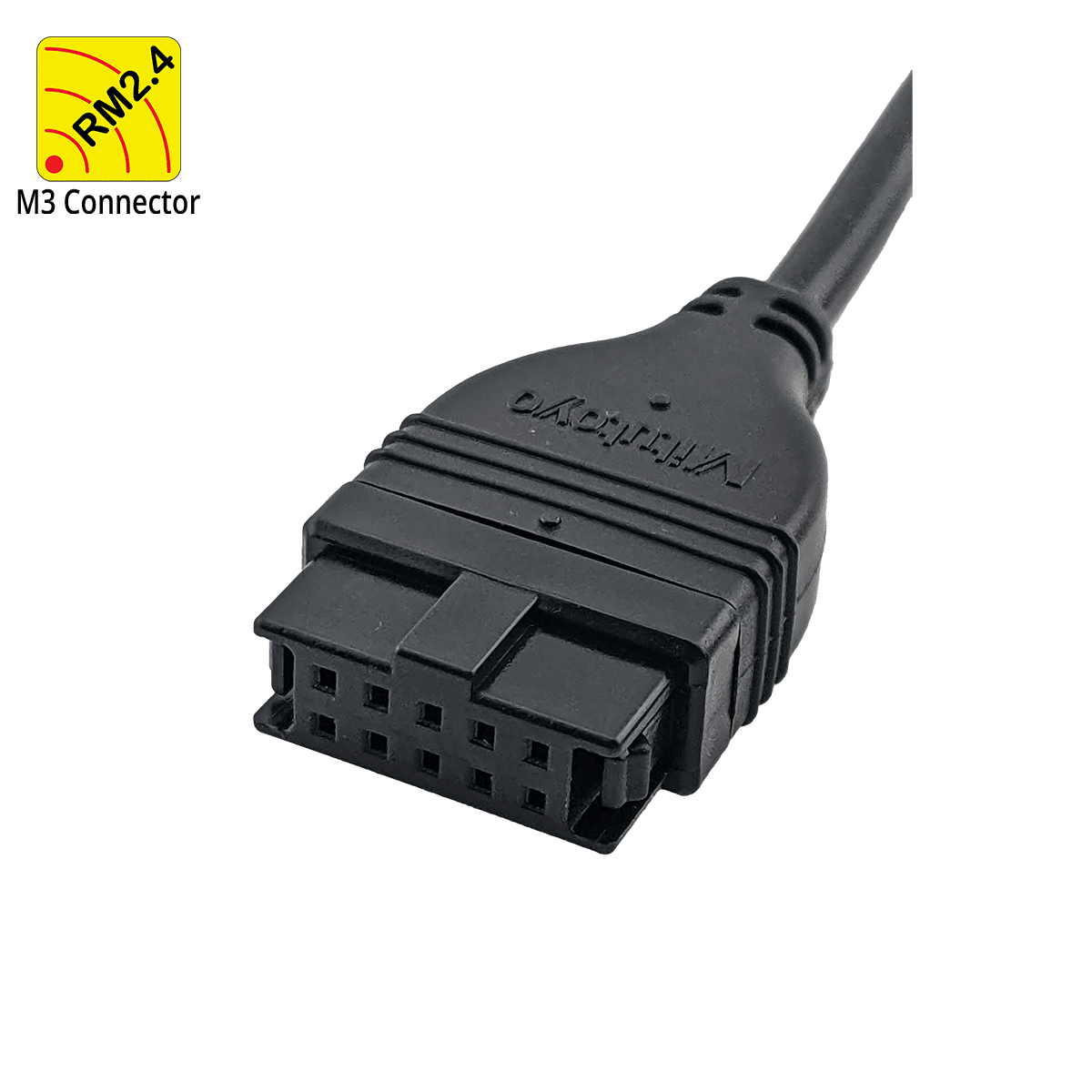

This connector plugs directly into the 2×5 Digimatic 10-pin output on your gage body and connects to a Mini Mobile Module (M3) transmitter — together, they give your gage a compact wireless SPC connection. Each reading transmits wirelessly from the Mini Mobile Module to a MobileCollect Base receiver connected to your PC or data collection workstation.
The 936937 connector interface is a 2×5 (two row, five pin) Digimatic output found directly on certain Mitutoyo gage bodies. This is a different form factor than the flat cable connectors used on calipers and micrometers — it’s common on gages where the Digimatic output is built into the instrument rather than accessed through a separate SPC cable.
Note: If you have a Mitutoyo ID-H or ID-F external powered indicator, contact sales@microridge.com directly — these instruments require a specialized configuration.
Not sure if your gage uses the 936937connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
MicroRidge also offers the 936937 cable/connector for other systems in the MobileCollect and GageWay product families:
DC Connector — Mitutoyo 936937 — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
OEM SPC Cable — Mitutoyo 936937 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module transmitter (MC-MM-M3) and a MobileCollect Base Receiver.
MC-M3-936937-6.5 Specs | |
|---|---|
Transmitter Family | Mini Mobile Module (M3) |
Standard Cable Length | 6.5 inches |
SKU | MC-M3-936937-6.5 |
Required Hardware | Mini Mobile Module (M3) & MobileCollect Base |
Read Button | No – Readings Initiated on Mini Mobile Module (M3) or Gage |
IP Rating | N/A |
Gage Brand | Mitutoyo |
