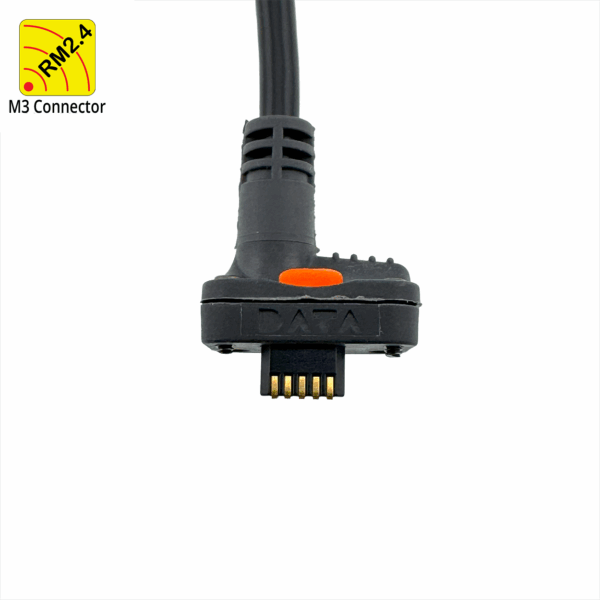

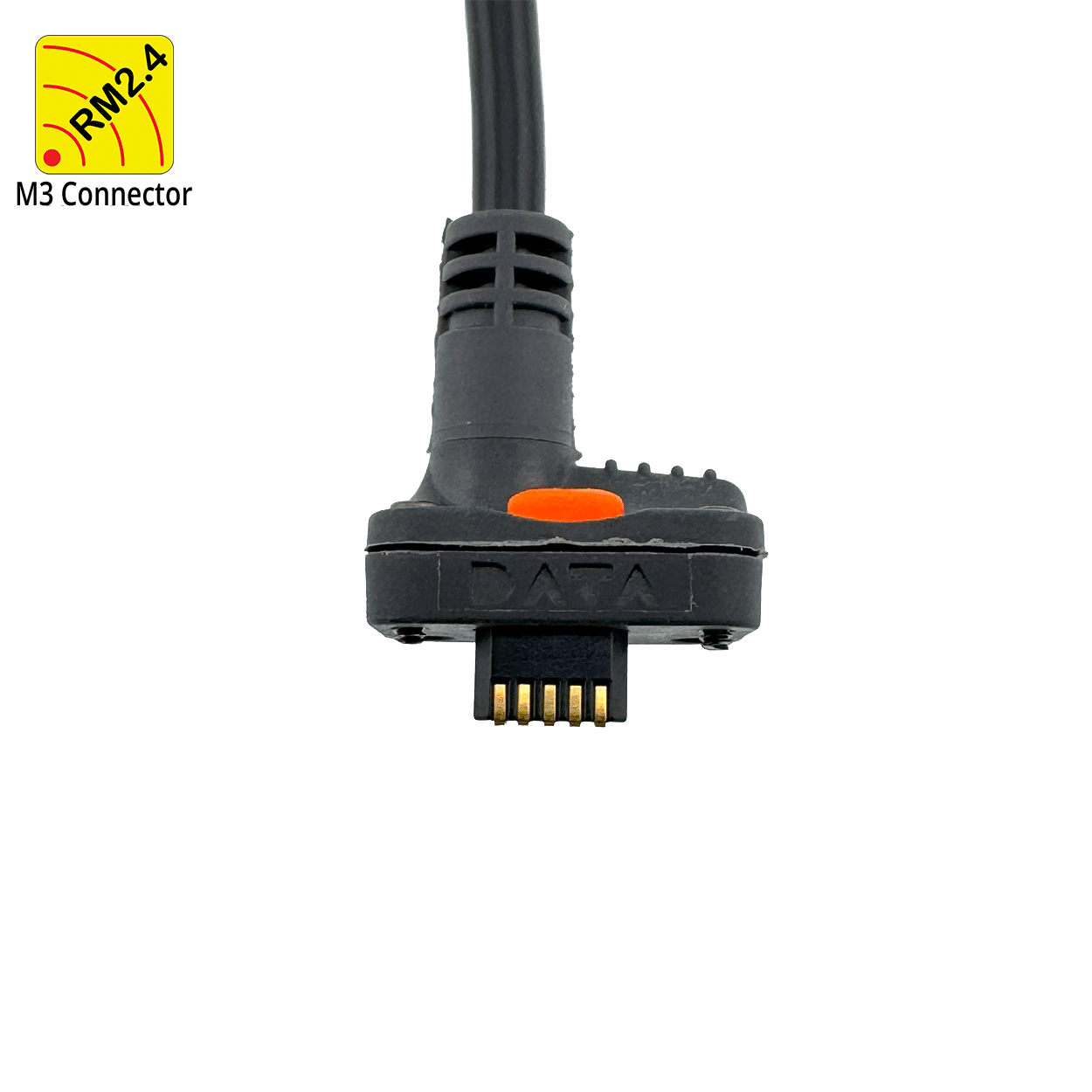

Wirelessly connect your Mitutoyo coolant proof Digimatic caliper to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module (M3) connector for Mitutoyo gages that use the 05CZA624 coolant proof caliper cable. Pairs with the Mini Mobile Module M3 transmitter to bring your gage online with MobileCollect. Built-in data send button.
Transmitter Family – Mini Mobile Module (M3)
Standard Cable Length – 3.5″
SKU – MC-M3-05CZA624-3.5
Required Hardware – Mini Mobile Module (M3) and MobileCollect Base
Read Button – Yes
Connector IP Rating – IP67
Gage Brand – Mitutoyo
$198.00
The M3 Wireless Connector for Mitutoyo 05CZA624 gages is the link between your Mitutoyo coolant proof Digimatic caliper and the MobileCollect Wireless measurement collection system. Once connected, measurement data transmits wirelessly from the gage to your SPC software — no manual data entry, no transcription errors, no clipboard in between.
This connector attaches directly to your caliper’s Digimatic output port and plugs into a Mini Mobile Module (M3) transmitter — together, they replace the standard Mitutoyo 05CZA624 SPC cable with a compact wireless setup. A built-in data send button lets operators trigger readings at the point of measurement, and each reading transmits wirelessly from the Mini Mobile Module to a MobileCollect Base receiver connected to your PC or data collection workstation.
The 05CZA624 cable is purpose-built for Mitutoyo’s coolant proof caliper line — distinct from the standard 959149 cable used on non-coolant-proof calipers. If your measurement workflow involves calipers exposed to coolant, oil, or cutting fluids, this connector maintains the IP67-level protection your caliper was designed for while adding wireless data transmission capability. The Mini Mobile Module transmitter itself is not IP rated, but we see very few failures in the field in wet environments. The most common issue over time is that certain cutting fluids and industrial chemicals can cause the connector cable to become brittle with prolonged exposure. If your application involves heavy coolant contact, contact us at support@microridge.com to discuss best practices for your environment.
Not sure if your gage uses the 05CZA624 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
MicroRidge also offers the 05CZA624 cable/connector for other systems in the MobileCollect and GageWay product families:
DC Connector — Mitutoyo 05CZA624 — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
OEM SPC Cable — Mitutoyo 05CZA624 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module transmitter (MC-MM-M3) and a MobileCollect Base Receiver.
MC-M3-05CZA624-3.5 Specs | |
|---|---|
Transmitter Family | Mini Mobile Module (M3) |
Standard Cable Length | 3.5 inches |
SKU | MC-M3-05CZA624-3.5 |
Required Hardware | Mini Mobile Module (M3) & MobileCollect Base |
Read Button | Yes |
IP Rating | IP67 |
Gage Brand | Mitutoyo |
