Wirelessly connect your Mitutoyo coolant proof Digimatic micrometer to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module EVO (M3E) connector for Mitutoyo gages that use the 05CZA662 coolant proof micrometer cable. Pairs with the Mini Mobile Module EVO M3E transmitter to bring your gage online with MobileCollect. Built-in data send button.
Transmitter Family – Mini Mobile Module EVO (M3E)
Connector Variant – M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters
Standard Cable Length – 6.5″
SKU – MC-M3-05CZA662-6.5
Required Hardware – Mini Mobile Module EVO (M3E) and MobileCollect Base
Read Button – Yes
Connector IP Rating – IP65
Gage Brand – Mitutoyo
$184.00
The M3 Wireless Connector for Mitutoyo 05CZA662 gages is the link between your Mitutoyo coolant proof Digimatic micrometer and the MobileCollect Wireless measurement collection system. Once connected, measurement data transmits wirelessly from the gage to your SPC software — no manual data entry, no transcription errors, no clipboard in between.

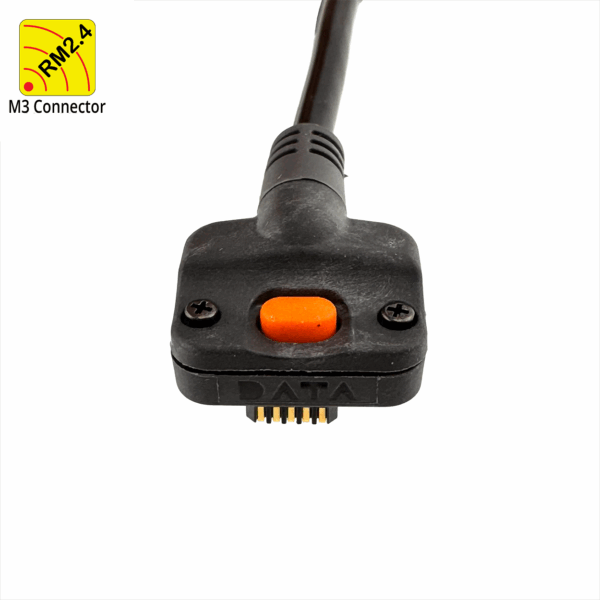

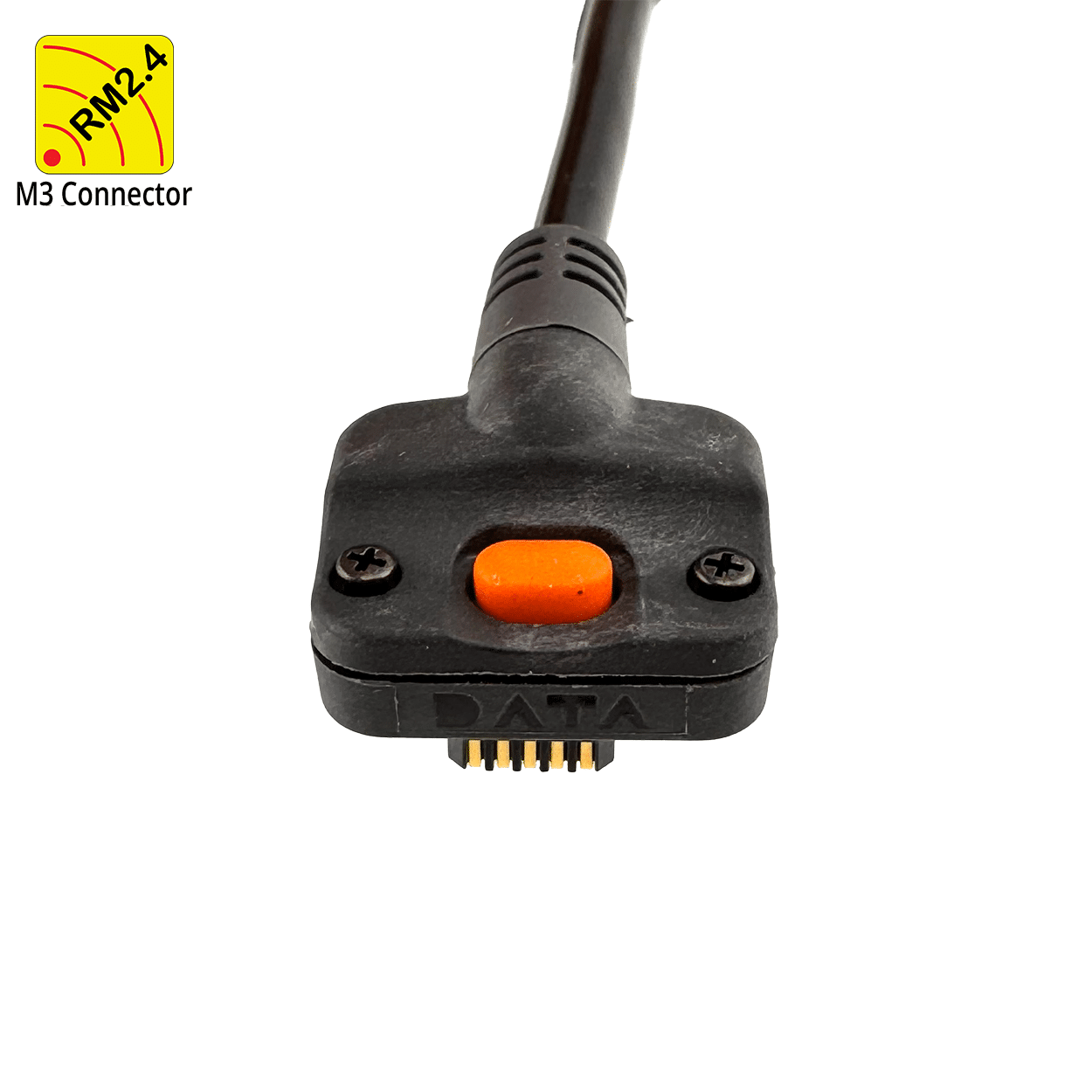

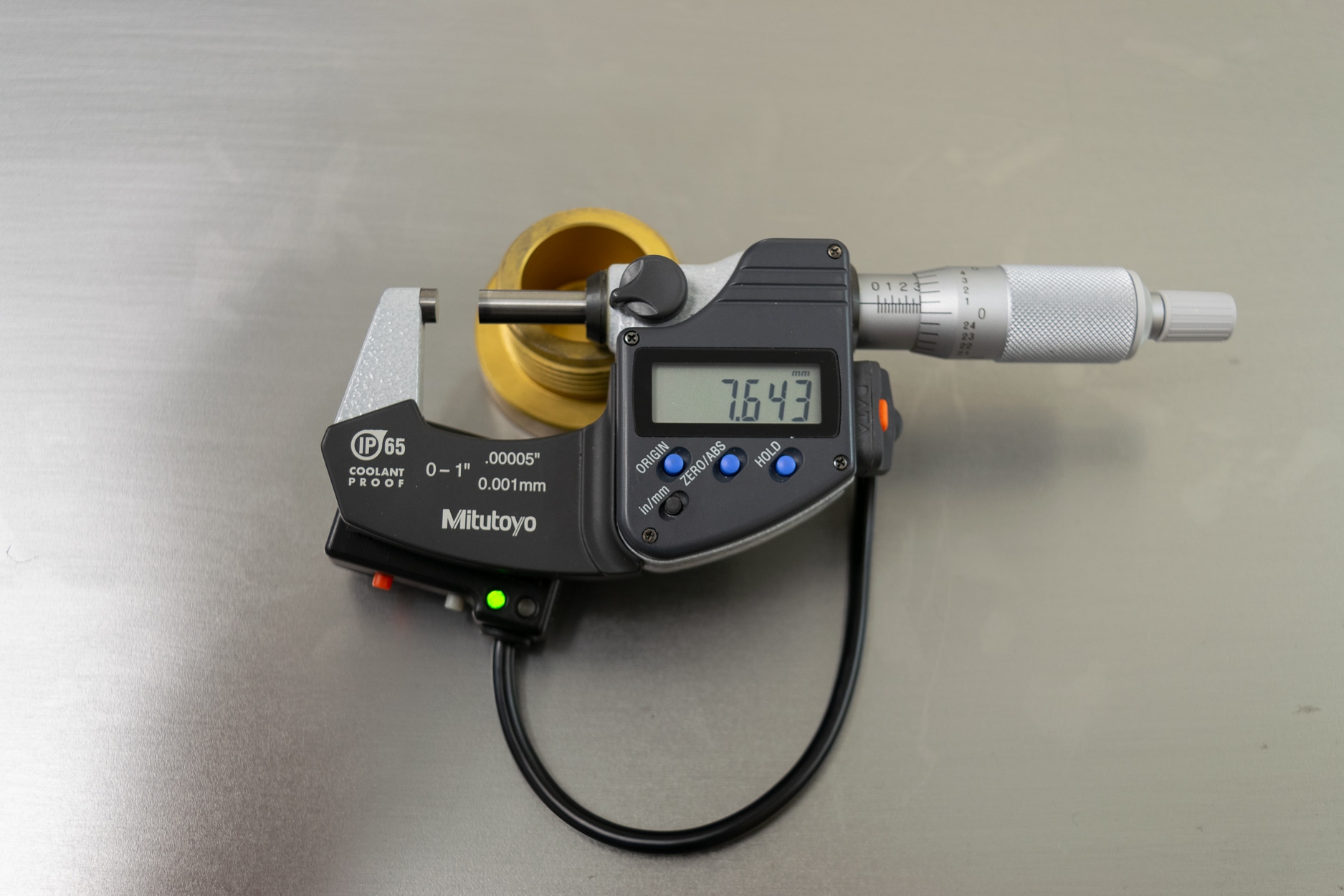

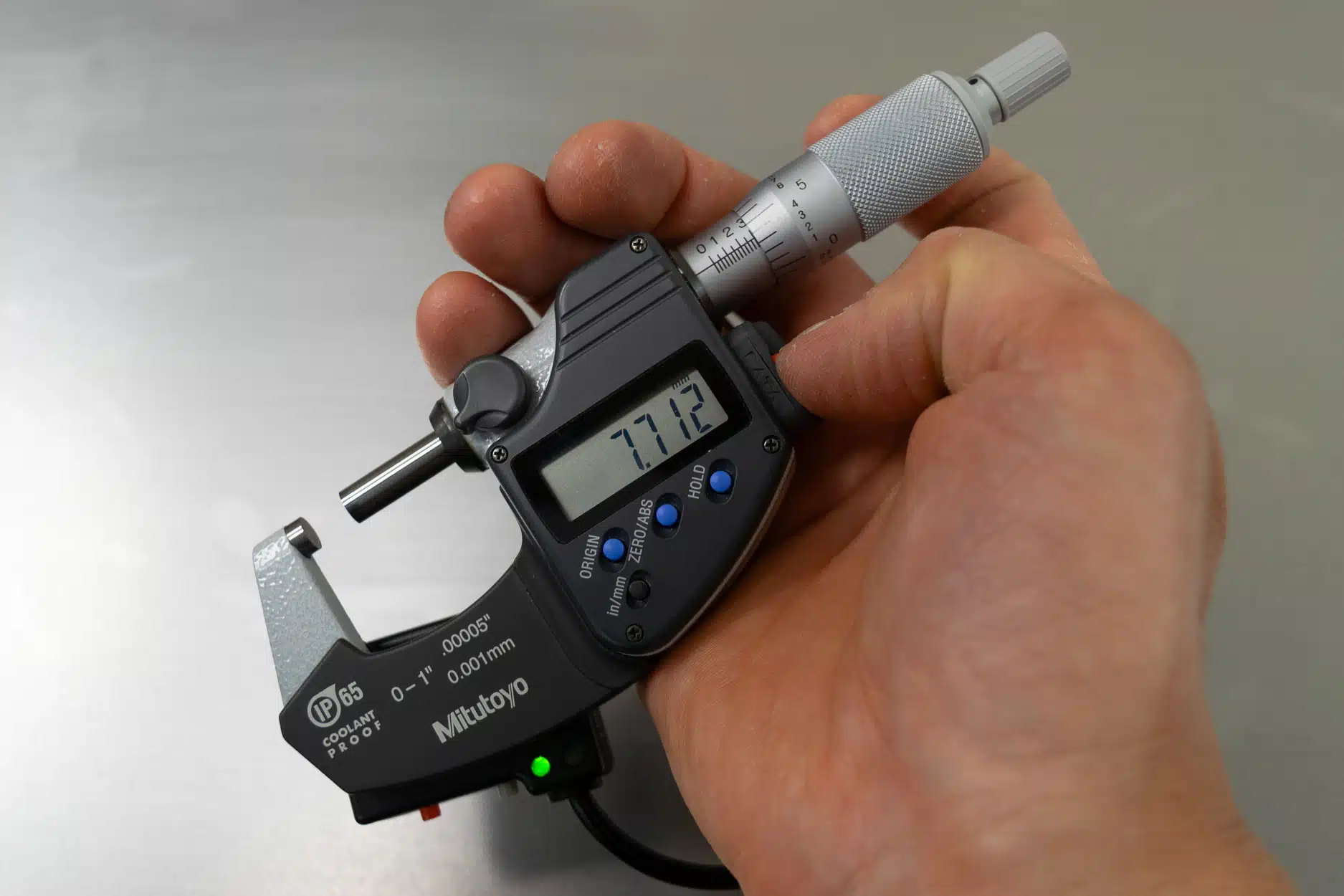

This connector attaches directly to your micrometer’s Digimatic output port and plugs into a Mini Mobile Module EVO (M3E) transmitter — together, they replace the standard Mitutoyo 05CZA662 SPC cable with a compact wireless setup. A built-in data send button lets operators trigger readings at the point of measurement, and each reading transmits wirelessly from the Mini Mobile Module EVO to a MobileCollect Base receiver connected to your PC or data collection workstation.
The 05CZA662 cable is purpose-built for Mitutoyo’s coolant proof micrometer line. If your measurement workflow involves gages exposed to coolant, oil, or cutting fluids, this connector maintains the environmental protection your micrometer was designed for while adding wireless data transmission capability. The Mini Mobile Module EVO transmitter itself is not IP rated, but we see very few failures in the field in wet environments. The most common issue over time is that certain cutting fluids and industrial chemicals can cause the cable to become brittle with prolonged exposure. If your application involves heavy coolant contact, contact us at support@microridge.com to discuss best practices for your environment.
Not sure if your gage uses the 05CZA662 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
If you purchased a Mitutoyo MDE QuantuMike (introduced in 2024), this is not the correct connector. The new MDE QuantuMike uses the 06AGL111 cable with Mitutoyo’s S1 connector and Digimatic D2 protocol. See the M3 Connector for Mitutoyo 06AGL111 instead. For a deeper explanation of what changed and why, read our complete guide to Mitutoyo’s SPC cable transitions. The connector on this page (05CZA662) is for the previous generation QuantuMike and other coolant proof micrometers in the Series 293 family.
MicroRidge also offers the 05CZA662 cable/connector for other systems in the MobileCollect and GageWay product families:
DC Connector — Mitutoyo 05CZA662 — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
OEM SPC Cable — Mitutoyo 05CZA662 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module EVO transmitter (MC-MM-M3-EVO) and a MobileCollect Base Receiver.
This is the M3 variant of this cable. It uses a 2×3, 6-pin connector that plugs into the Mini Mobile Module transmitter.
Transmitter compatibility: This M3 cable is fully compatible with both the current Mini Mobile Module EVO M3E transmitter and the retired M3 transmitter. No adapter, firmware change, or configuration required — it plugs directly into either.
This Cable Supports:
See the Mini Mobile Module EVO Connector Compatibility Guide for photos of all four connector and transmitter combinations, including how M3 and M3E cables seat on each transmitter generation.
This cable supports TriggerSync. TriggerSync is a measurement mode where a reading is triggered from the MobileCollect Base Receiver or directly from your SPC application, without a manual button press at the gage. TriggerSync will enable automated data collection across all of your digital gages. This feature is currently under development and scheduled for release in Q3 2026.
MC-M3-05CZA662-6.5 Specs | |
|---|---|
Transmitter Family | Mini Mobile Module EVO (M3E) |
M3 Cable/Connector Variant | M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters |
Standard Cable Length | 6.5 inches |
SKU | MC-M3-05CZA662-6.5 |
Required Hardware | Mini Mobile Module EVO (M3E) & MobileCollect Base |
Read Button | Yes |
IP Rating | IP65 |
Gage Brand | Mitutoyo |
