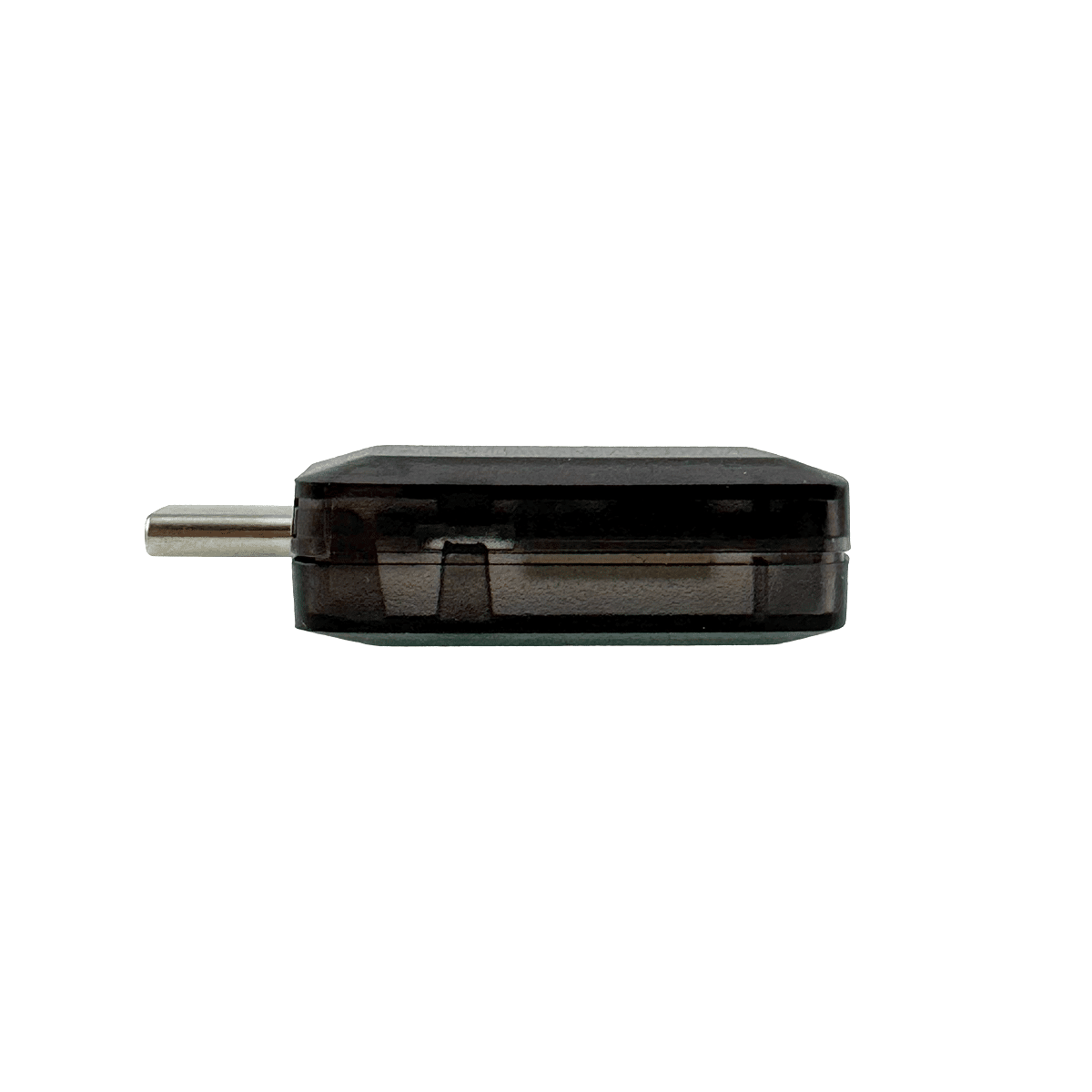

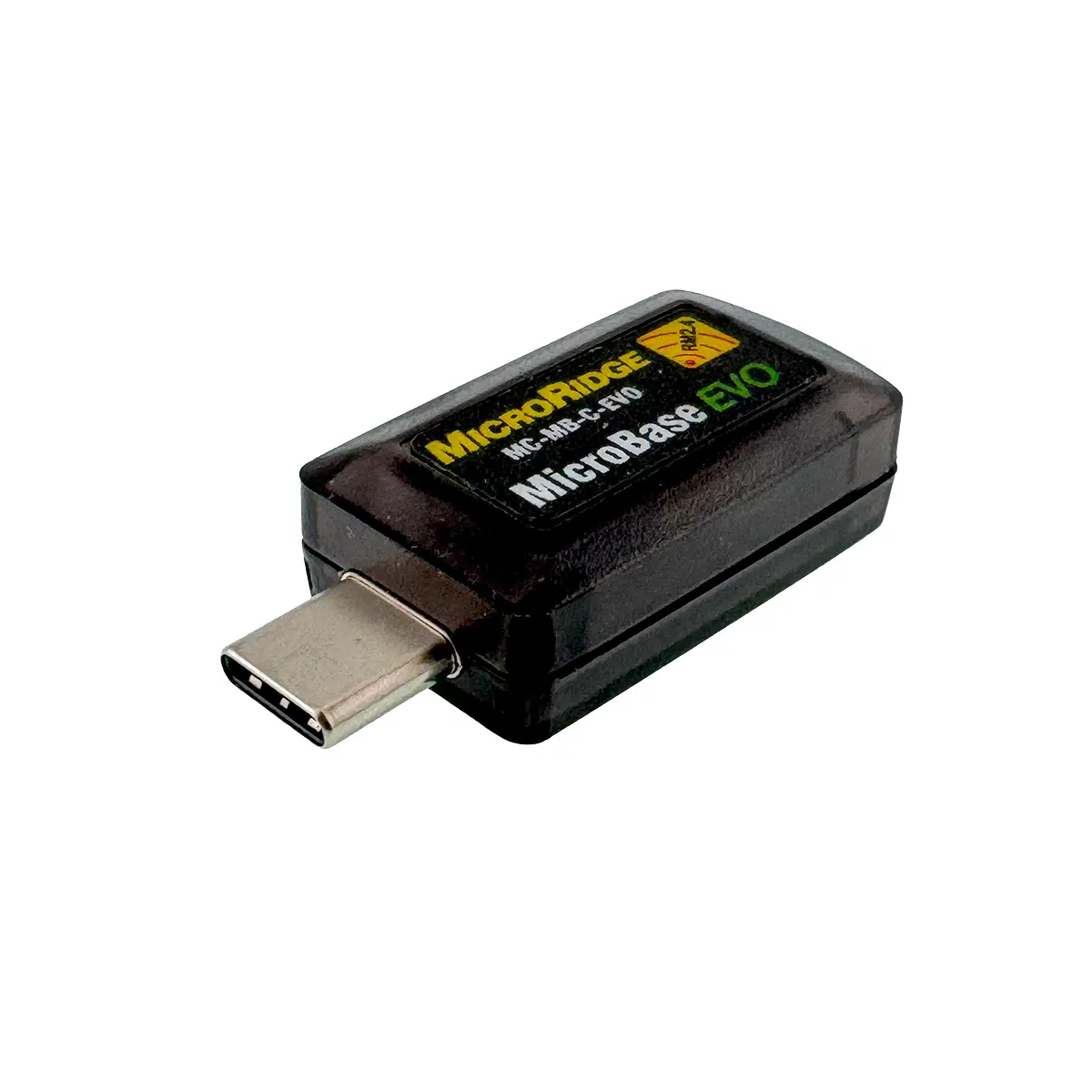

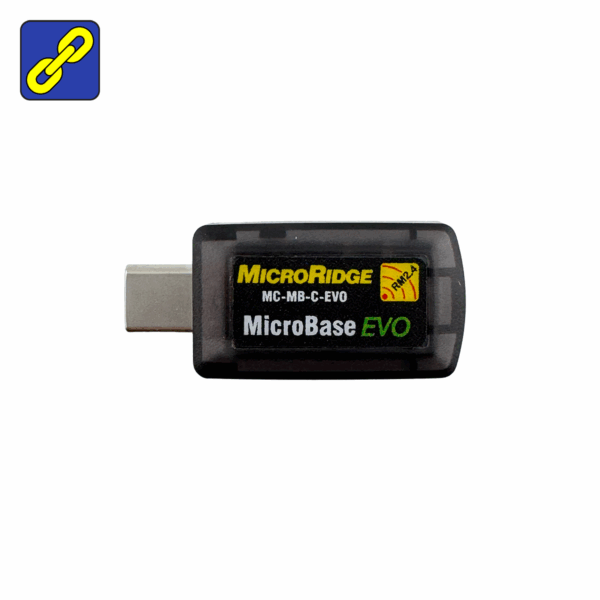

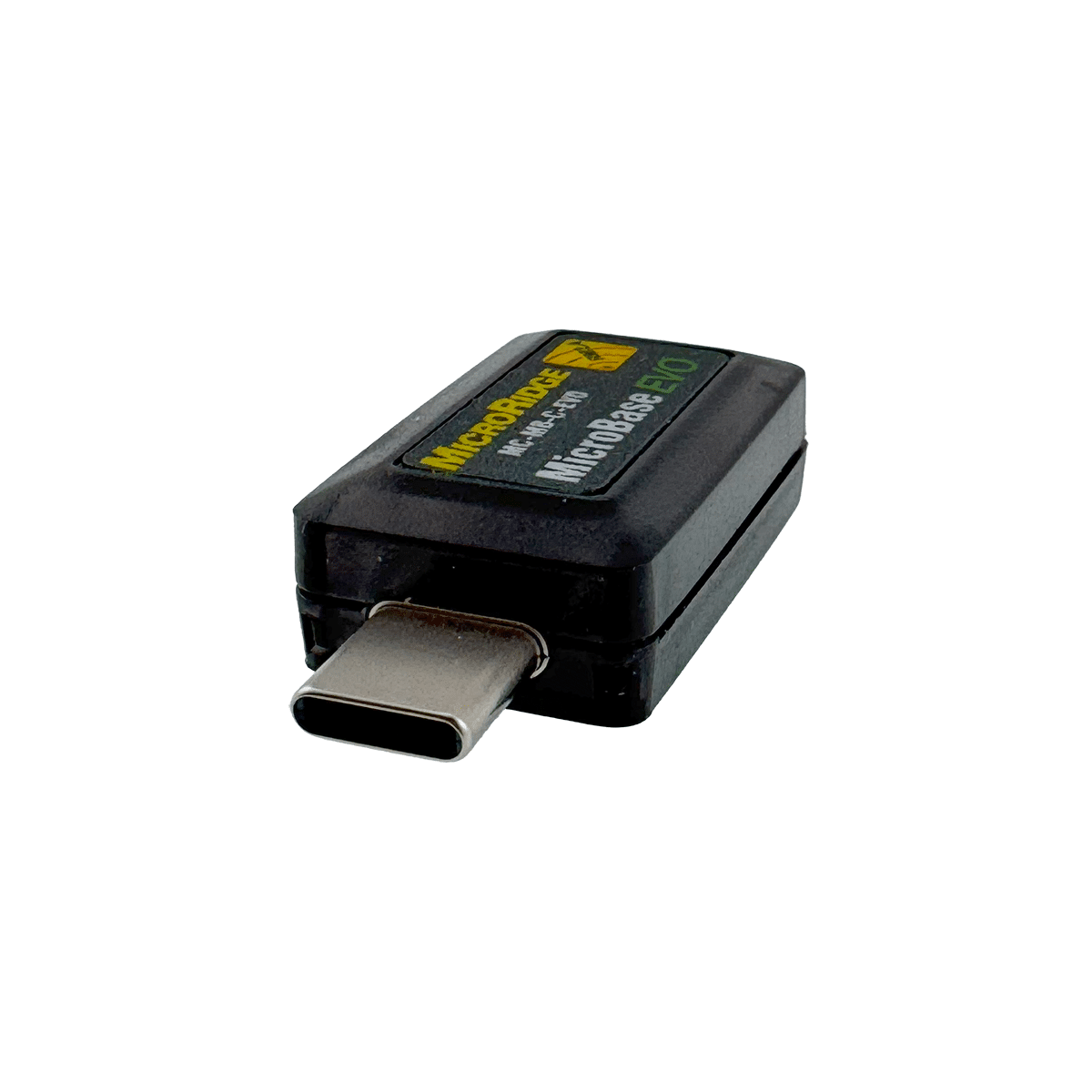

MicroBase EVO USB C

SKU MC-MB-C-EVO Category Tag

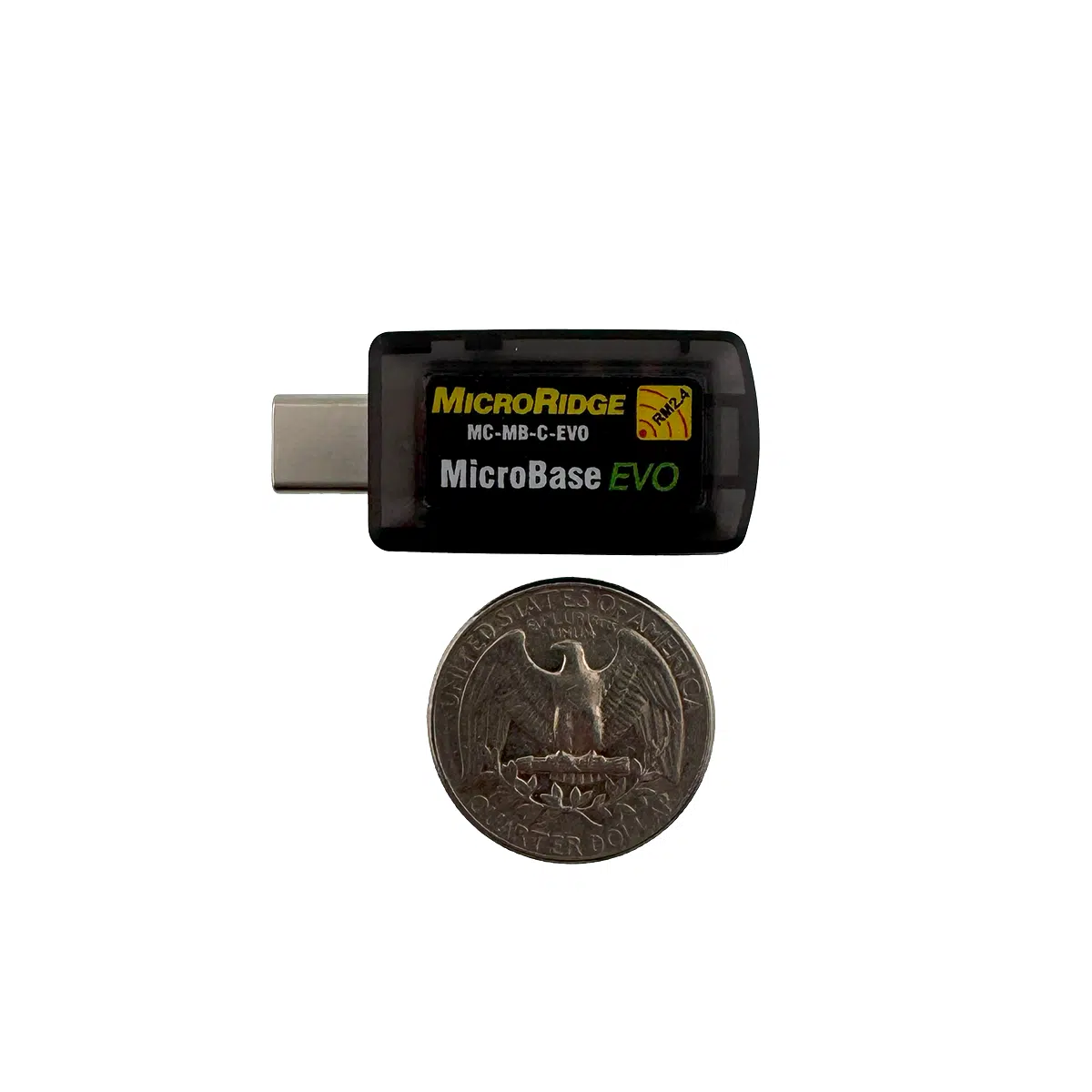

MicroBase EVO USB C is the smallest MobileCollect Base Receiver and it’s packed full of power!

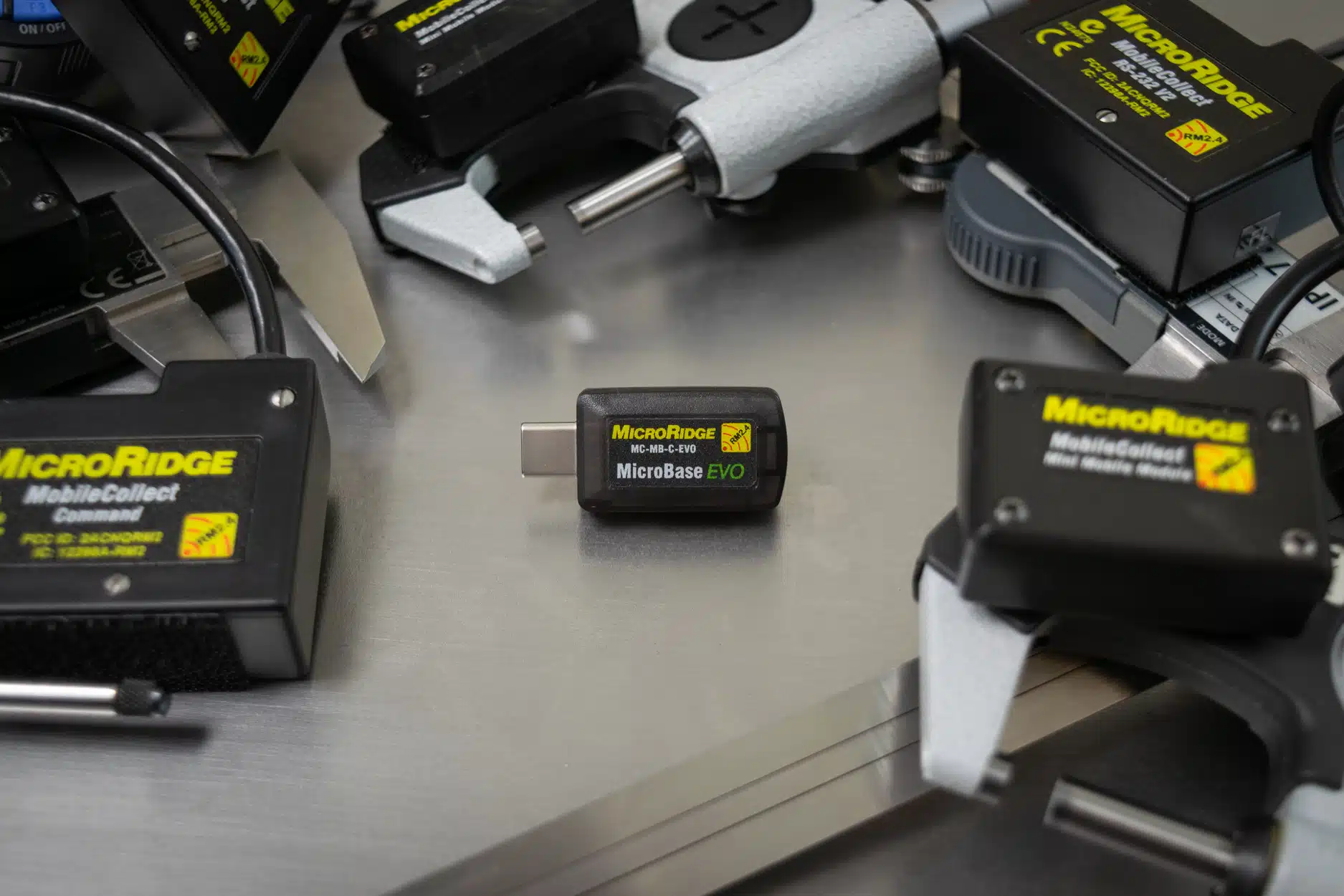

This tiny base receives measurements from MobileCollect Mobile Modules and Remotes. It can output those measurements via Serial VCP or Keyboard Wedge, meaning it can send data to any software application. The addition of an integrated keyboard wedge in this small form factor make this tiny base receiver the perfect match for tablets and mobile devices when you need to send measurement data to applications such as Microsoft Excel, Access, Minitab, cloud based SPC and more.

Key Features:

  • Output Formats
    • RS-232 Serial (via VCP)
    • Keyboard Wedge
  • Supports an unlimited number of Mobile Modules (transmitters) and Remotes (transmitters).
  • Configured by the MobileCollect Xpress or Extended Setup programs.
  • Field upgradeable firmware.
  • 3 LEDs to confirm measurement readings and base status.
  • Range is up to 130 ft/40 m.
    • If range is a major concern consider one of our full-size bases that feature even better range.
  • RM2.4 wireless protocol means you can have several Bases adjacent to each other. Each Base will only receive data from the Mobile Modules or Remotes that have been paired with the Base.
  • International Certifications
    • USA FCC & ISED Canada Certified
    • Compliant with more regions

Advanced Features:

  • Unique USB VID/PID to enable MicroBase EVO to function in plants with strict data security measures in place.
    • MicroRidge is a certified USB-IF member, Vendor ID:14196.
  • Supports advanced MobileCollect Transmitter features.
    • Remote Read Switch
      • Used to initiate gage readings on Command Mobile Modules remotely with a Mini Mobile Module.
    • Skip Button
  • Get more than just a reading.
    • Measurement, Assigned Channel # or letter, Custom Text Field, Transmitter Module ID, Base ID, Transmitter Custom Label, Units, Transmitter Battery, Signal Strength.
  • Configure custom End of Packet (EOP) and Delimitation characters for data entry.



Output Formats: Keyboard Wedge via USB or Virtual COM Port via USB
Connection: USB C

$450.00

Find the Right Transmitter for the Job!

Mobile Modules
Battery Powered Transmitters for Mobile Devices

Mini Mobile Module

The Mini Mobile Module is the go-to transmitter for connecting most gages. If you’re using a indicator, caliper, micrometer or other digital devices this is the transmitter for you. The Mini Mobile Module is our most compact transmitter.

Command Mobile Module

Are you interested in sending commands from the base or your SPC software to initiate a gage reading? The Command Mobile Module is purpose build for this with a larger battery and form factor than the Mini Mobile Module.

RS-232 V2 Mobile Module

Want to bring an RS-232 device online with your other gages? Now you can with the RS-232 V2 Mobile Module! This Mobile Module has the same larger form factor as the Command Mobile Module to support it’s need for a larger battery.

Remotes
USB Powered Transmitters for Stationary Devices

RS-232 Remote

This RS-232 transmitter give you the ability to send commands to an RS-232 device from your base or SPC software to get a reading.

MC-REM-RS232
RS-232 Remote
$450.00

Digital Remote

All of the great features found in the Command Mobile Module without the need to worry about battery life.

MC-REM-DIG
Digital Remote
$450.00
