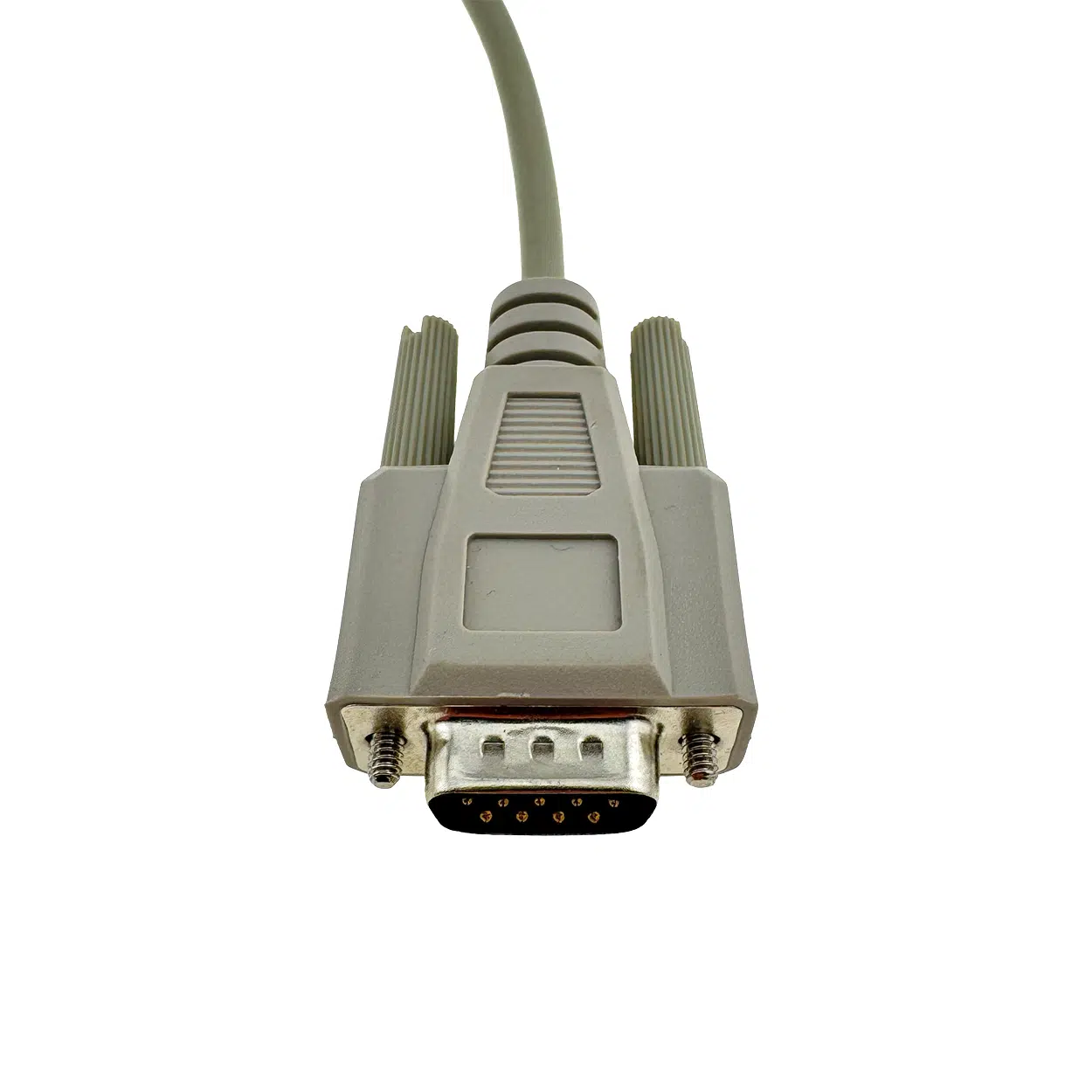

Connect a MobileCollect RS-232 Base Receiver to a Mitutoyo DP-1VA Digimatic Mini-Processor (264-505A) using this MicroRidge-designed and manufactured cable assembly. The serial converter is built directly into the cable — no separate adapter required.
This cable brings the DP-1VA into your MobileCollect wireless system, enabling simultaneous printing at the point of measurement and real-time data logging to SPC software on a connected PC via the DP-1VA’s USB port. Also compatible with the older DP-1VR Digimatic Mini-Processor (264-504-5A).
Note: Mitutoyo DP-1VA Mini-Processor not included — shown in product images for reference only.
Compatible Base – MobileCollect RS-232 Base EVO
Compatible Mini-Processor – Mitutoyo DP-1VA (264-505A), DP-1VR (264-504-5A)
RS-232 Parameters – 9600 baud, No parity, 8 data bits, 1 stop bit (9600-N-8-1)
Output Protocol –  Mitutoyo Digimatic
Converter Location –  Built into cable assembly
Origin – Designed & Made in the USA
Mini-Processor Included – No
$185.00
The Mitutoyo DP-1VA Digimatic Mini-Processor is a self-contained data logger and thermal printer used widely in inspection and quality control environments. It collects measurement data from Digimatic-output gages, prints results at the station, stores up to 1,000 measurements, and can transfer batch data to a PC via USB — all without dedicated SPC software running locally.

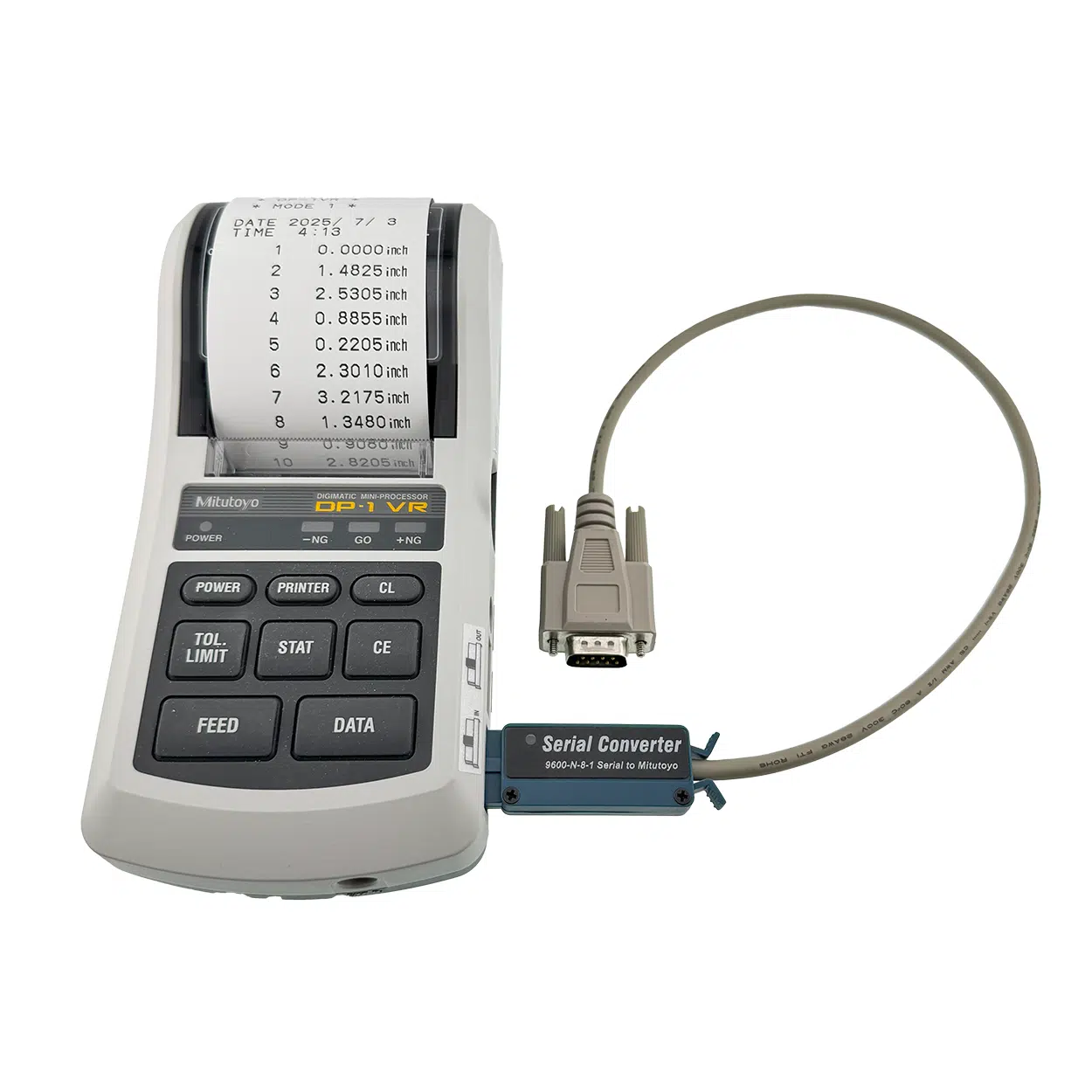

This MicroRidge cable assembly extends that capability by making the DP-1VA compatible with the MobileCollect Wireless measurement system. Your operator collects measurements wirelessly using a MobileCollect transmitter at the gage. The RS-232 Base Receiver picks up the signal and passes data through this cable to the DP-1VA — which receives it exactly as it would from a wired Digimatic gage.
Critically, this removes the DP-1VA’s native limitation to Digimatic-output gages only. When paired with MobileCollect, the DP-1VA can print measurement data from any gage supported by the MobileCollect system — over 3,500 gages from more than 50 brands, including calipers, micrometers, indicators, height gages, comparators, hardness testers, surface roughness testers, scales, force gages, and more. If the gage can connect to MobileCollect, the DP-1VA can print it.
The practical result:
The RS-232 Base handles both outputs concurrently using its dual output capability— no data splitter or additional hardware required.
No reconfiguration of the DP-1VA is required. No changes to how operators trigger measurements. The cable handles the protocol translation between MobileCollect’s RS-232 output (9600-N-8-1) and the Digimatic format the DP-1VA expects — all within the cable assembly itself.

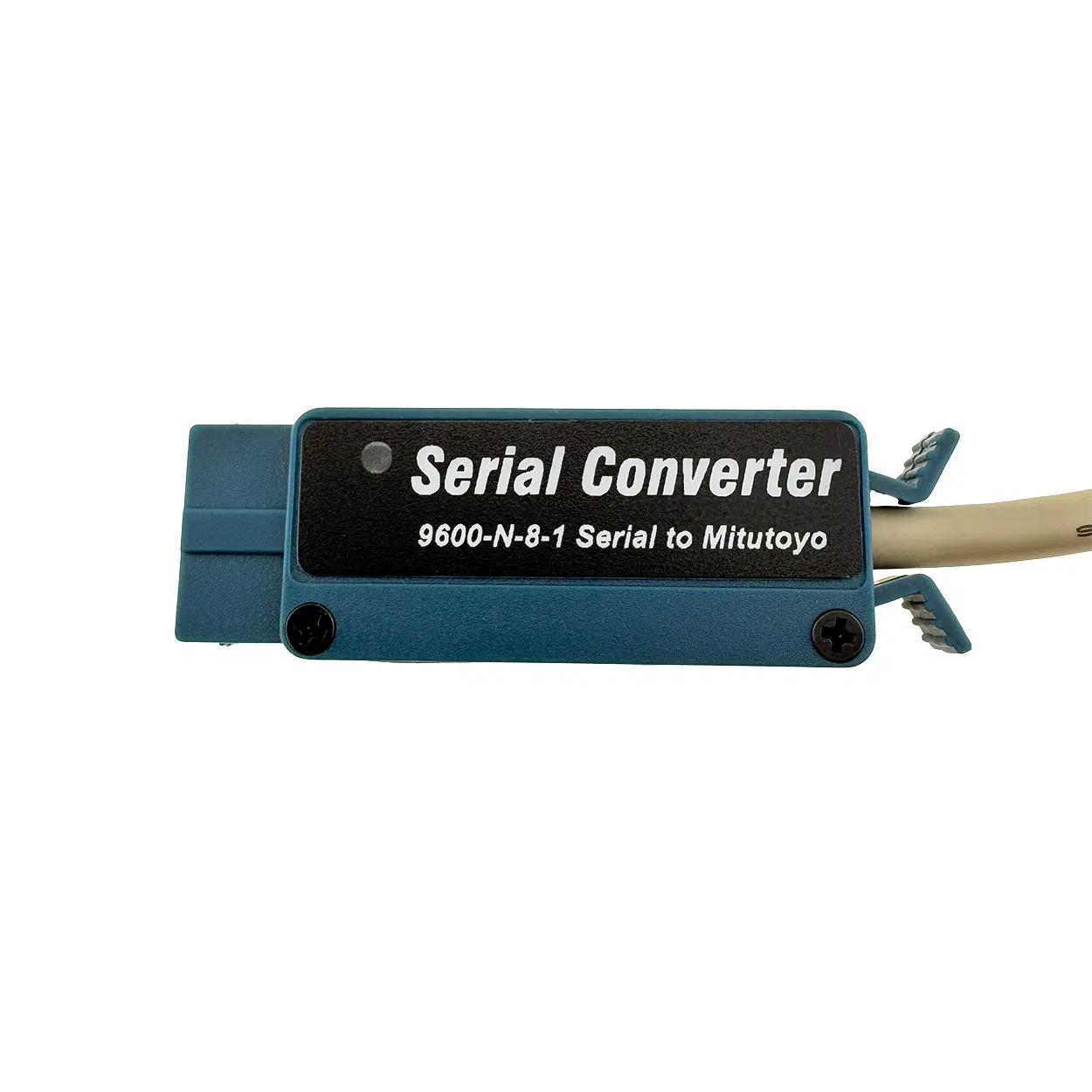

Rather than requiring a separate inline adapter or converter box, the Digimatic serial conversion circuitry is integrated directly into this cable assembly. The MobileCollect RS-232 Base outputs at 9600-N-8-1; the DP-1VA expects Mitutoyo Digimatic protocol. This cable bridges those two interfaces transparently.
This cable also supports the older Mitutoyo DP-1VR Digimatic Mini-Processor (264-504-5A). Facilities still running DP-1VR units do not need a separate cable.
Transmitters — select the module that matches your gage type and application:
Gage Cable — use the MobileCollect Selection Tool to identify the correct gage cable for your transmitter and gage model. Covers over 3,500 gages from 50+ brands.
Base Receiver — MobileCollect RS-232 Base Receiver — required for use with this cable.
Q: Does this cable work with the MobileCollect Wedge Base?
— No. This cable is designed exclusively for the MobileCollect RS-232 Base Receiver. The Wedge Base outputs data via USB HID or virtual COM port and is not compatible with this cable.
Q: Do I need to reconfigure my DP-1VA to use this cable?
— No. The DP-1VA requires no configuration changes. The cable assembly handles protocol conversion from MobileCollect RS-232 output (9600-N-8-1) to Mitutoyo Digimatic format transparently.
Q: Is the DP-1VA Digimatic Mini-Processor included?
— No. The DP-1VA (Mitutoyo 264-505A) is sold separately. This listing is for the cable assembly only.
Q: Can I log data to SPC software and print at the same time?
— Yes. The MobileCollect RS-232 Base uses its dual output capability to simultaneously send measurement data to the DP-1VA for printing and to SPC software on a connected PC via USB virtual COM port.
Q: Which Mitutoyo Mini-Processors are compatible?
— This cable supports the current DP-1VA (264-505A) and the older DP-1VR (264-504-5A).
Q: Can I use this with any gage that has a Digimatic SPC output?
— Any gage supported by MobileCollect wireless is compatible. Use the MobileCollect Selection Tool to confirm gage-to-transmitter pairing.
Q: Is the DP-1VA limited to Mitutoyo Digimatic gages when used with this cable?
— No, that’s one of the key advantages of this setup. Standalone, the DP-1VA only accepts data from Digimatic-output gages. When connected via this cable to a MobileCollect RS-232 Base, it can print data from any gage supported by the MobileCollect system — over 3,500 gages from more than 50 brands across all major manufacturers.
SC-9600N81-MIT Specs | |
|---|---|
Compatible Base | MobileCollect RS-232 Base EVO |
Compatible Mini-Processor | Mitutoyo DP-1VA (264-505A), DP-1VR (264-504-5A) |
RS-232 Parameters | 9600 baud, No parity, 8 data bits, 1 stop bit (9600-N-8-1) |
Output Protocol | Mitutoyo Digimatic |
Converter Location | Built into cable assembly |
Origin | Designed & Made in the USA |
Mini-Processor Included | No |
