Gage multiplexers consolidate measurements from multiple instruments into a single output (USB serial, keyboard wedge, or RS-232), simplifying data capture in quality labs and production. Modern units support Digimatic, digital and RS-232 devices across many brands, offer rugged construction, various channel counts with chaining, and integrate with PCs/PLCs for broad software compatibility. They boost accuracy and efficiency by reducing manual entry and are vital in environments where wireless is restricted, powering applications in manufacturing QC, R&D, and automated process control. When choosing one, prioritize system and device compatibility, scalable channel capacity, and easy software-based configuration, then plan integration to match your workflows.
A multiplexer, often referred to as a gage mux box, serial port multiplexer or a wired gage interface is a sophisticated device designed to consolidate input from multiple gages or measurement devices, thus enabling streamlined data collection through a single output often a USB or serial DB9 connection. This amalgamation of inputs is crucial in environments where numerous measurements are required, such as manufacturing facilities and quality control labs. By funneling multiple data streams into one, gage multiplexers reduce complexity and enhance the efficiency of data handling.

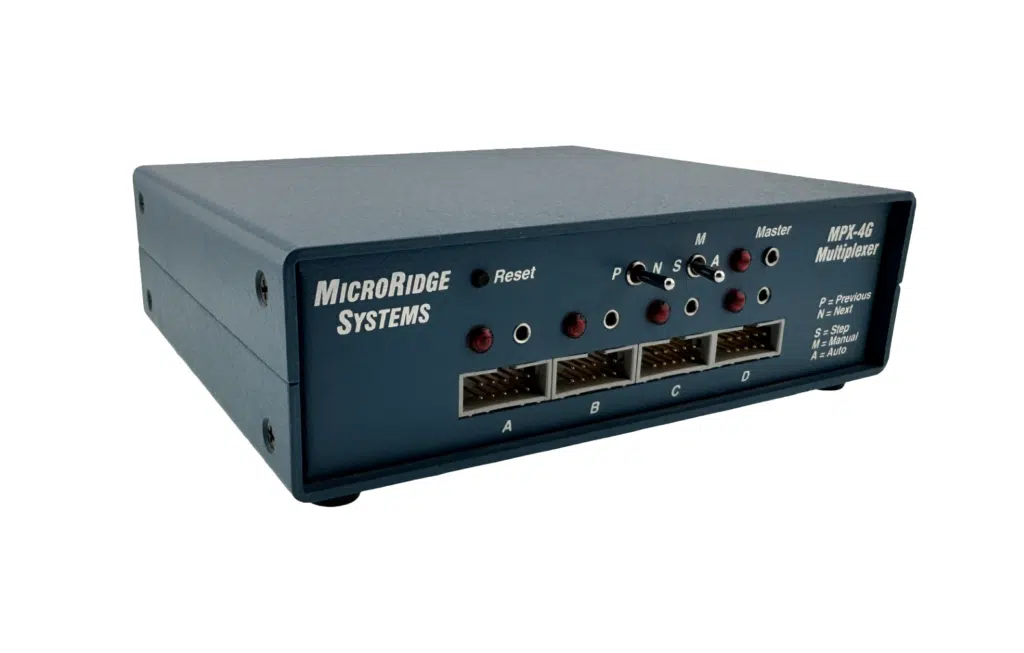

The concept of gage multiplexers has evolved significantly over the years. Initially, data collection in industrial environments required manual entry and individual wiring setups for each measurement device, which was time-consuming and prone to errors. The introduction of gage multiplexers revolutionized this process by automating data collection and minimizing human intervention. Multiplexers have evolved significantly over time: early models such as the MicroRidge MPX series Multiplexer relied on onboard DIP switches to set custom parameters, then multiplexers shifted to DOS-style terminal configuration, and today are typically set up through dedicated software with a familiar graphical user interface. Along the way, the connection to a computer or PLC also progressed from RS-232 over a DB9 connector to USB serial and keyboard-wedge interfaces, making it easier to route measurement data into virtually any software application.
In many quality labs and other stationary inspection environments—especially high-reliability or restricted areas where wireless technology can’t be used—gage multiplexers remain essential. While wireless systems such as MobileCollect are often preferred for flexibility and mobility, a wired multiplexer such as GageWay provides a dependable, noise-resistant way to consolidate readings from multiple gages into a single computer or PLC interface. When a wireless system isn’t an option, this hardwired approach becomes the go-to solution—delivering consistent data capture for critical inspections, audit-ready traceability, and tight process control in automotive, aerospace, nuclear, and electronics environments where uptime and data integrity matter most.
A key feature of gage multiplexers is native support for gages that output using the Mitutoyo Digimatic protocol. Although Digimatic is associated with Mitutoyo, many gages from other manufacturers also use Digimatic-compatible output, allowing them to connect to the same mux box and data-collection workflow.
A well-designed gage multiplexer isn’t limited to Digimatic outputs—it can also be used to collect data from a wide range of brands and interfaces commonly found in inspection labs and production workcells. Whether you’re connecting calipers and indicators or bringing in readings from height gages and specialized instruments, a gage multiplexer helps standardize data flow to a PC or PLC without forcing you into a single vendor ecosystem. This flexibility is especially valuable in mixed-instrument environments that include Mahr Federal , Ono Sokki , Fowler , INSIZE , Starrett , Sylvac , Ohaus , and Mettler Toledo.
Only the industry’s best gage multiplexers extend beyond digital gage inputs by supporting RS-232 serial devices on each channel, so every port can be used for the instrument you actually need at the station. This is often done with an external cable such as the Level Converter Cable that takes RS-232 voltage levels down to the levels acceptable by the multiplexer. That means you can mix and match digital gages with equipment like scales, DROs, torque tools, and other precision measurement devices—then route everything through one centralized interface to your computer or PLC. The result is a cleaner, more flexible inspection setup that accommodates legacy serial outputs and modern gaging side by side.
In manufacturing and industrial environments, durability isn’t a nice-to-have—it’s essential, because a gage multiplexer is often mounted on benches, carts, or fixtures where it will be exposed to vibration, accidental impacts, cable strain, and frequent connect/disconnect cycles. A rugged enclosure, secure connectors, and solid internal design help the multiplexer keep working after the bumps and drops that come with daily production use. Choosing a durable unit reduces downtime, protects measurement integrity, and prevents small hardware failures from turning into missed inspections, delayed shipments, or costly troubleshooting.
To ensure measurement data can be used in virtually any system, a gage multiplexer typically offers multiple connection options to a computer or PLC. For PC-based quality applications, USB serial (Virtual COM Port) output is ideal because many SPC programs are designed to read measurements from a COM port just like a traditional serial device. When the goal is simple, universal data entry—such as sending readings directly into Excel , web forms, or cloud-based applications —a keyboard wedge mode can “type” the measurement wherever the cursor is active, with no special drivers required by the target program. And for automation and controls, a traditional RS-232 DB9 connection remains a practical, robust choice for interfacing with many PLCs and industrial controllers.
Gage multiplexers are built for flexibility, with common configurations such as 2-, 4-, and 8-channel models such as the GageWay Pro2, Pro4 and Pro8 that let you match the interface to the size of your inspection station without paying for unused ports. As your needs grow, the best multiplexers also support chaining, allowing multiple units to be linked together so you can scale the system to accommodate more precision gages while keeping a consistent workflow to the computer or PLC. This ability to expand in stages—without redesigning the entire data-collection setup—is a hallmark feature of top-tier multiplexer systems.
The implementation of a gage multiplexer box significantly reduces the potential for human error associated with manual data entry. By automating the data collection process, these devices ensure higher accuracy and consistency, which is critical in maintaining quality standards and enhancing overall productivity. The precision and reliability offered by gage multiplexers are invaluable in environments where even the smallest measurement discrepancies can have significant ramifications. By ensuring data integrity, these devices contribute to improved product quality and compliance with industry standards.
In manufacturing settings, the collection of measurement data is vital for maintaining product quality and consistency. Gage multiplexers streamline the data acquisition process, allowing for real-time monitoring and analysis. This not only enhances the efficiency of quality control operations but also facilitates the early detection of potential defects. By providing a centralized data collection point, gage multiplexers enable manufacturers to quickly identify and address quality issues, minimizing waste and reducing production costs.
In research and development, precise measurement data is essential for the validation and verification of new designs. Serial multiplexer systems provide engineers with a reliable method for capturing and analyzing data from multiple sources, thereby accelerating the development process and improving the accuracy of experimental results. This capability is particularly valuable in fields such as aerospace and automotive engineering, where precise data is crucial for ensuring the safety and performance of new products.
As industries increasingly embrace automation, the need for integrated data collection systems has grown. Gage multiplexers play a crucial role in process control applications, enabling the automated adjustment of machinery and equipment based on real-time data inputs from various gages. This integration supports efficient and responsive process control, reducing downtime and enhancing overall productivity. By enabling real-time feedback and adjustments, gage multiplexers contribute to more efficient and reliable automated systems.
When selecting a gage multiplexer for your application, focus first on compatibility —both with your downstream data-collection system and with the instruments you need to connect. Confirm the multiplexer supports the interfaces your computer or PLC expects (including RS-232 where required) to ensure reliable integration and reduce the risk of communication errors or data loss.
Just as important is device support at each channel : look for a multiplexer that can interface with Digimatic gages , digital gages from multiple manufacturers (using compatible outputs), and RS-232 serial devices so you can consolidate readings from gages, scales, DROs, and other precision equipment into one consistent workflow.
When choosing a gage multiplexer, start by matching the unit to the number of precision gages you need to connect at the station today, while leaving room for near-term additions. If your inspection requirements may expand, prioritize a multiplexer that supports chaining, so you can link multiple units together and increase channel capacity without redesigning your data-collection setup. This approach lets the system scale alongside your operations, protecting your investment as tooling, fixtures, and measurement demands grow.
Select a gage multiplexer that offers straightforward configuration and user-friendly operation. This will minimize the time and effort required for setup and reduce the likelihood of errors during data collection. When possible, avoid multiplexers that rely solely on DIP switches or cryptic terminal commands for configuration, since these approaches can slow down changeovers and make settings harder to verify or document. User-friendly interfaces and intuitive software support are essential for ensuring that your team can efficiently operate the system, maximizing productivity and minimizing disruptions. Investing in a system that is easy to configure and use can lead to significant time and cost savings in the long run.
Before implementing a gage multiplexer, conduct a thorough assessment of your data-acquisition requirements—and confirm up front whether a wireless collection system is feasible in your environment. If wireless is restricted (policy, safety, or IT controls), unreliable (RF interference, shielding, long distances), or simply not allowed in critical areas, a hardwired multiplexer may be the most practical path. Next, identify the gages and other devices that will be connected and ensure the chosen multiplexer can support the required throughput, resolution, and interfaces. With proper planning and setup, you can avoid common pitfalls and ensure a smooth, efficient implementation.
For seamless data integration, make sure your multiplexer can output data in formats your software can actually use—most commonly USB Serial (Virtual COM Port) for SPC and other data-collection programs, and keyboard wedge mode for Excel, web forms, and many cloud applications. Many multiplexers also include companion software for setup and data utilities, but the core requirement is that the hardware interfaces align with your existing workflow. Choosing a multiplexer with both USB serial and keyboard-wedge capabilities helps you streamline data handling while improving the consistency and reliability of your measurement capture.
Gage multiplexers are indispensable tools for professionals involved in the integration and communication of multiple measurement devices. By understanding their functions, applications, and best practices, you can harness the full potential of these systems to enhance data accuracy, efficiency, and overall productivity. Whether you are a quality manager, engineer, or manufacturing technician, mastering the use of gage multiplexers will empower you to streamline your operations and achieve greater success in your field. With the right gage multiplexer, you can unlock new levels of efficiency and effectiveness, driving innovation and excellence in your industry.
