When it comes to precision measurement tools, the Mitutoyo digital caliper stands out as a reliable choice for industrial applications. This tool is favored for its accuracy, durability, and ease of use in a variety of applications, from manufacturing to quality control. However, selecting the right model requires careful consideration of several factors to ensure it meets your specific needs, not just for today, but for the future.
In this detailed guide, we’ll explore what you need to look for in a Mitutoyo digital caliper, offering insights into its technical specifications, features, and potential applications. Whether you’re a quality manager deploying them to the floor, an engineer seeking efficient data collection solutions, or a manufacturing technician looking to streamline measurement processes, this guide will provide valuable information to aid your decision-making process.
This guide outlines why to choose a Mitutoyo digital caliper by focusing on core specs (measurement range, resolution), build quality (stainless steel construction), Absolute Encoders (no need for zero-setting) and usability (large LCD). It highlights why advanced capabilities like SPC Data Output are so important when selecting a caliper. Practical tips include regular calibration, careful handling, and leveraging data output to improve accuracy and productivity.
Digital calipers are precision instruments used to measure internal and external dimensions, depths, and steps with high accuracy. They are essential tools in various fields, including mechanical engineering, metalworking, and quality assurance. The Mitutoyo digital caliper is renowned for its reliability and precision, making it a popular choice among professionals.
The Mitutoyo digital caliper is an industry standard due to the following key features:
The available measurement range including 4 inch (100 mm), 6 inch (150 mm), 8 inch (200 mm), and 12 inch (300 mm) are suitable for a wide array of applications, offering versatility in measuring difference sized features. The resolution, typically 0.0005 inches (0.01mm), ensures precise readings.
The build quality is a critical factor in determining the caliper’s durability and longevity. Mitutoyo calipers are usually constructed from stainless steel, providing resistance to wear and corrosion. This material choice enhances the tool’s lifespan, even in demanding environments. There are IP67 rated versions that offer additional resilience in harsher environments.
A large, easy-to-read LCD display is a hallmark of the Mitutoyo digital caliper, facilitating quick and error-free readings. This feature is particularly beneficial in environments where precision is paramount, such as quality control labs and manufacturing facilities.
Mitutoyo’s Absolute Encoder technology eliminates the need for zero-setting every time the caliper is powered on. This feature not only saves time but also reduces the risk of errors, ensuring consistent and reliable measurements.
Beyond the basic specifications, one advanced feature can significantly enhance the functionality of a digital caliper:
For professionals involved in data-driven environments, SPC (Statistical Process Control) data output is a valuable feature. This capability allows for seamless integration with data collection systems, enabling automated measurement logging and reducing the potential for manual entry errors. Even if you’re not utilizing this feature today, be sure to select a model that includes the SPC data port as you may need to capture and record measurements down the road.
At MicroRidge, we frequently work with customers needing a measurement collection system that quickly learn they purchased Mitutoyo Digital Calipers without the SPC Data Output port. Purchasing new digital calipers that include the SPC Data Output port along with a measurement collection system such as MobileCollect, drastically increases the project cost. To avoid this common pitfall, be sure to choose a model that includes the SPC Data Output port even if you don’t immediately need to capture and record measurements.
That’s a great question and an important one. You need to be sure the caliper you’re purchasing has the SPC Data Output Port so you have the ability to bring that gage online whether it be in the near term or down the road. The best tool to verify that the Mitutoyo digital caliper you’re interested in has the data output port is the MobileCollect Selection Tool. This free downloadable tool includes a repository of over 3500 gages.

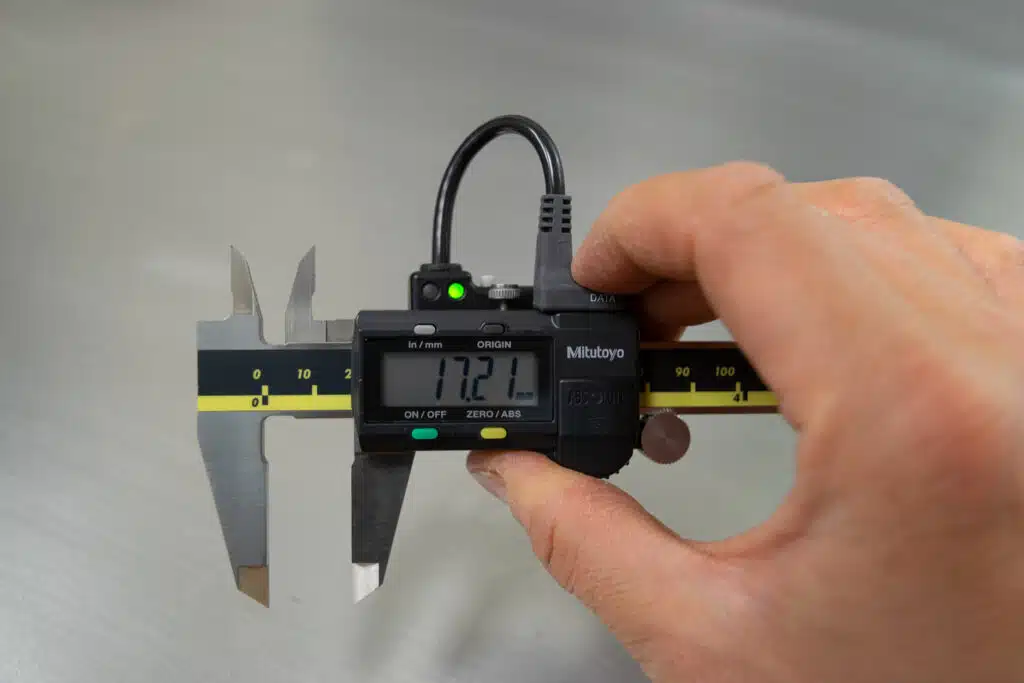

MobileCollect Wireless will connect Mitutoyo Digital Calipers along over 3,500 different gages to the same wireless measurement collection system. With MobileCollect technology, you can get the measurements from your Mitutoyo Digital Caliper into any software application with the push of a button.
GageWay Wired Interfaces offer the most cost effective solution for connecting Mitutoyo Digital Calipers to any software application. With GageWay, you can implement single gage interfaces such as the GageWay KW for connecting a single Mitutoyo Digital Caliper or multi-gage interfaces such as the GageWay Pro8 for connecting up to 8 digital gages at a single quality control station.
To maximize the benefits of your Mitutoyo digital caliper, consider the following practical tips:
Even the most precise instruments require regular calibration to maintain accuracy. Establish a routine calibration schedule based on usage frequency and application criticality to ensure consistent performance. If you need recommendations for calibration services in your area please contact us.
Handle the caliper with care to avoid damage to the sensitive measuring jaws and electronics. Clean the tool regularly to prevent the buildup of debris, which can affect measurement accuracy. Store the caliper in its protective case when not in use to safeguard it from environmental factors.
Be sure to choose a digital caliper that supports SPC data output so you can integrate the caliper with data collection software to automate measurement logging. This integration not only enhances efficiency but also reduces the likelihood of human error in data entry, making it an invaluable tool in quality control environments.
Be sure to purchase all gages including digital calipers from a reputable dealer. Digital calipers are precision measurement tools that may require service along with calibration. Purchasing from a reputable dealer that can assist with questions, calibration and service inquires will help limit downtime in your quality control program. If you need recommendations for dealers in your area please contact us.
Selecting the right Mitutoyo digital caliper requires a thorough understanding of its features and how they align with your specific needs. From basic specifications like measurement range and resolution to advanced capabilities like SPC data output, each element plays a critical role in ensuring the tool’s effectiveness in your applications.
For quality managers, engineers, and manufacturing technicians, the right caliper can streamline processes, enhance accuracy, and improve overall productivity. By considering the factors outlined in this guide, you can make an informed decision and leverage the full potential of your Mitutoyo digital caliper.
Incorporate these insights into your decision-making process to ensure that your chosen caliper not only meets your current requirements but also adapts to future challenges in precision measurement and data integration.
