MobileCollect performs TIR tracking at the transmitter level — turning any compatible digital indicator into a wireless, SPC-ready measurement station.
In high-volume OCTG and line pipe manufacturing, TIR and OD roundness inspection runs thousands of times per shift. Whether you’re using a dial indicator on a pipe rolling fixture, a digital indicator on a bench setup, or anything in between — the final step in that workflow is the same: the operator records the measurement. And every manual step in that record is a nonconformance risk and a data integrity problem.
MicroRidge MobileCollect transmitters eliminate that step entirely. They attach directly to any compatible digital indicator and perform TIR tracking at the transmitter level — independently of what the gage natively supports. At the end of each sweep, the transmitter captures the number of readings, minimum, maximum, and range and transmits all four wirelessly into SPC in under a second. No manual math. No written record. No re-entry.
This post covers how MobileCollect’s transmitter-level TIR capability works, which transmitters fit which pipe inspection workflows, and how the system integrates with the SPC platforms already running in oil and gas manufacturing.
TIR (Total Indicator Runout) measures the total deviation a digital indicator registers across a full sweep — the difference between the minimum and maximum readings. For pipe OD roundness inspection, TIR is the number that matters: it quantifies out-of-roundness directly, and it’s what feeds the SPC chart that tells you whether your forming or rolling process is in control.
Many mid-to-high-end digital indicators from Mitutoyo, Mahr, and Starrett do have TIR mode on their display. But there’s a distinction that matters for automated data collection: displaying TIR on the indicator face is not the same as transmitting it through the data output port. Many indicators that show TIR on their display output only the live reading through their SPC data port — not the captured TIR value. The data your SPC software receives is a point-in-time reading, not the runout across the sweep.
At the lower end of the market — basic digital indicators, economy instruments, and the large installed base of analog dial indicators still common on pipe fixtures — there’s no TIR calculation at all. The inspector watches the needle sweep and estimates runout visually.
MobileCollect transmitters solve both problems at the system level. The transmitter independently tracks the minimum and maximum values across every sweep and calculates TIR — regardless of what the gage outputs natively, and regardless of whether the indicator has TIR mode on its display. At end-of-sweep, the transmitter transmits four values in a single wireless packet: number of readings, minimum, maximum, and range. What arrives in your SPC software is the actual runout from the full sweep, not a snapshot reading.
The dimensional standards most relevant to pipe manufacturing are:
In each case, TIR is the measurement type and SPC is the control mechanism — and both only function correctly if the data at the source reflects the actual sweep, not a manual estimate or a truncated data port output.
High-volume pipe inspection presents a specific version of a universal quality problem: the gage produces an accurate reading, and then a human writes it down.
Transcription error rates in manual measurement data entry are well-documented — see The True Cost of Manual Measurement Data Entry for a detailed breakdown. At production volumes typical of OCTG manufacturing, even a low per-entry error rate translates to meaningful nonconformance escape risk and SPC data that doesn’t accurately represent process capability. Add operator fatigue across a shift, illegible handwriting on paper travelers, and the time cost of re-entry into SPC software, and the picture is clear: manual data entry is a process step that adds cost and risk without adding value.
The fix is not a better paper form or a faster typist. It’s eliminating manual entry as a step entirely.

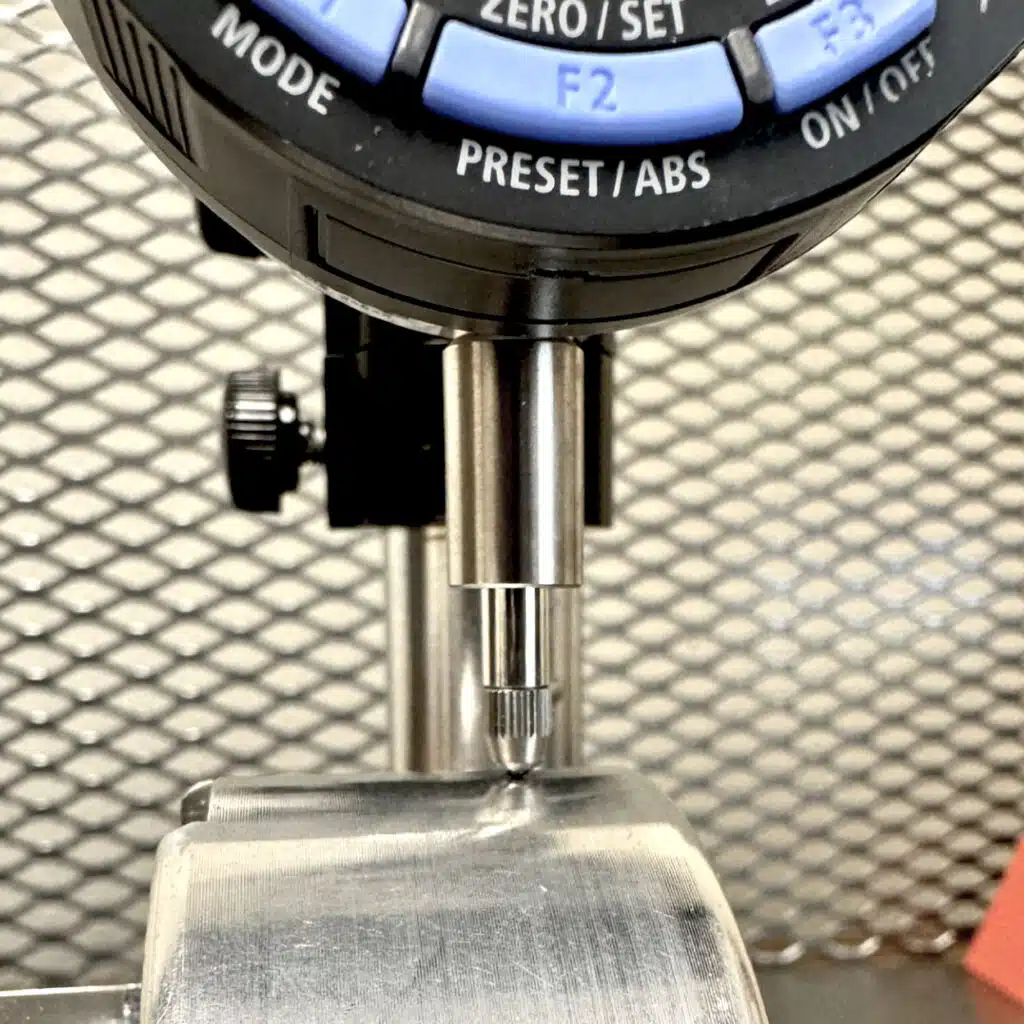

The MobileCollect transmitter attaches directly to the digital indicator on the inspection fixture via a gage-specific connector. The transmitter monitors the live measurement signal from the gage continuously. As the operator sweeps the indicator across the pipe OD, the transmitter is tracking the full range of values in real time — counting readings, recording the minimum, and updating the maximum.
When the sweep is complete and the operator signals end-of-cycle (button press, foot switch, or remote Base command depending on transmitter type), the transmitter captures and transmits four values in a single wireless packet: number of readings, minimum, maximum, and range. The paired Base Receiver forwards that packet to the connected PC in under a second — appearing as a data entry in whatever application is active, from GainSeeker and InfinityQS to Excel and custom SPC platforms.
No manual calculation. No written intermediate. No re-entry. The only thing the inspector does is sweep the indicator and trigger the read — the same physical action they were doing before, now with automated data capture at the end of it.
TIR mode is configured via the MobileCollect Xpress or Extended Setup Program and stored in the transmitter’s firmware. Once set, it runs on every read without further operator input. For a step-by-step walkthrough, see the Mobile Module – Changing Read Mode feature guide, which covers TIR mode setup on the Mini Mobile Module EVO, Command Mobile Module, and V2 RS-232 Mobile Module.
The Mini Mobile Module EVO M3E is the standard transmitter for the majority of pipe and valve TIR inspection applications. Attach it to any compatible digital indicator, configure TIR mode in the Xpress Setup Program, and that indicator becomes a wireless TIR data collection station — transmitting reading count, min, max, and range as a single record into SPC at the end of every sweep, regardless of what the gage outputs natively through its data port.
The operator sweeps the indicator and presses the Read button at the end of the sweep. The M3E transmits the reading count, min, max, and range wirelessly up to 140 feet over RM2.4. Two-LED confirmation feedback tells the operator data was acquired from the gage and received by the Base — no screen required, no ambiguity about whether the reading was captured.
The M3E runs on a standard CR2032 coin cell rated for 800,000+ readings with no power switch and no idle drain — nearly 6x the previous generation. Compatible with Mitutoyo, Mahr Federal, Starrett, INSIZE, CDI, Fowler/Sylvac, and 3,500+ additional gage devices across 30+ connector options.
The Command Mobile Module is the right choice when your workflow requires the Base or host software to trigger the read rather than the operator pressing a button on the transmitter. In a pipe roundness fixture where the pipe is rotating on rollers and the inspector is managing the fixture rather than standing at the indicator, remote triggering is more reliable and more ergonomic.
The Base sends the read command — triggered by host software, a foot switch, a hand switch, or a PLC output — and the Command Module captures and transmits the reading count, min, max, and range in response. The Base can also request multiple sequential readings and manage sleep cycles to extend battery life during low-throughput periods. Same gage connector ecosystem as the M3E, same RM2.4 protocol, same 140-foot range.
The Digital Remote serves applications where the indicator doesn’t move — it’s mounted in a dedicated pipe inspection bench or fixture permanently. USB-powered with no battery to manage, the Digital Remote provides the same Base-triggered remote read automation as the Command Module, without the battery change cadence of a battery-powered transmitter. The right choice for end-of-line inspection stations where the same indicator is running all day, every day. The Digital Remote and RS-232 Remote both support TIR mode; a dedicated read mode feature guide for the remote family is not yet available but setup follows the same read mode configuration logic.
All three transmitters can be paired to a single Base Receiver simultaneously. A mixed deployment — M3E transmitters on handheld instruments, a Command Module on a rotating fixture, and a Digital Remote on a bench station — all output to the same Base and feed the same SPC data stream.
MobileCollect transmitters interface with the digital gage output types already in use in oil and gas manufacturing. For TIR and OD inspection, the most common instruments are:
Use the MobileCollect Selection Tool to confirm compatibility for your specific instrument model.
Manufacturing facilities running pipe mills, CNC machining cells, and valve assembly lines share a common RF environment characteristic: high electromagnetic interference from VFDs, motors, welding equipment, and dense Wi-Fi infrastructure. Bluetooth was not engineered for this environment — it was designed for consumer device connectivity, and its failure modes in high-EMI industrial settings are well-characterized: dropped readings, degraded range, and interference from adjacent devices on the same frequency band.
MicroRidge’s RM2.4 protocol operates in the 2.4 GHz ISM band with 32-bit encryption and was designed from the ground up for industrial factory floor measurement data collection. It prioritizes data integrity and RF noise resilience over the connection-flexibility features that make Bluetooth useful in consumer applications but unreliable on the plant floor. Each transmitter-Base pair uses unique network identifiers, and the Base processes data only from its paired transmitters — eliminating cross-contamination between systems in facilities running multiple MobileCollect setups simultaneously.
For a full technical comparison, see: Why Bluetooth Fails in Manufacturing.
MobileCollect’s Base Receiver outputs measurement data via USB Serial, USB Keyboard Wedge, or RS-232 — the same input formats accepted by every major SPC platform. For oil and gas manufacturers running GainSeeker Suite from Hertzler Systems, the integration is direct and validated: gage data collected via MobileCollect transmitters flows into GainSeeker for real-time Xbar-R and I-MR control charting, Cpk/Ppk reporting, and Western Electric Rules-based out-of-control alerts without any manual re-entry step in the data path.
The same applies to InfinityQS ProFicient, WinSPC, SQCpack, and any other SPC platform that accepts keyboard wedge or serial input.
“The pattern we see across manufacturers — oil and gas included — is companies that have invested in SPC but are still feeding it data by hand. The hidden cost isn’t just the time spent transcribing measurements; it’s the decisions being made on incomplete and stale information. When you integrate the gage-to-GainSeeker path and eliminate that manual step, the data set changes entirely — complete, time-stamped, every reading. That’s what shifts SPC from a documentation exercise into actionable intelligence that actually controls your process and quantifies your improvements.”
— Phil Mason, President, Hertzler Systems
Hertzler Systems is the developer of GainSeeker Suite, a leading enterprise SPC platform trusted by manufacturers across industrial, automotive, aerospace, and energy verticals. MicroRidge and Hertzler are validated integration partners.
Does the digital indicator need to have TIR mode built in for MobileCollect to transmit TIR data?
— No, and this distinction matters even for indicators that do have TIR on their display. Many digital indicators that show TIR on their face output only the live reading through their SPC data port, not the captured TIR value. MobileCollect transmitters perform TIR tracking independently at the transmitter level: the transmitter monitors the full sweep, captures reading count, min, max, and range, and transmits all four as a single data record — regardless of what the gage outputs natively. This applies equally to high-end digital indicators, basic digital indicators, and any compatible analog-output instrument in between.
What API standards are relevant to pipe OD and TIR inspection?
— API 5CT governs casing and tubing (OCTG) and specifies OD tolerance as -0.5%D to +1.0%D for pipe ≥ 114.3mm OD. API 5L governs line pipe with equivalent dimensional requirements. Both standards define measurable, SPC-trackable specifications that MobileCollect dimensional data feeds directly.
Does MobileCollect work in high-EMI industrial environments like pipe mills?
— Yes. MobileCollect uses MicroRidge’s proprietary RM2.4 protocol, which was designed specifically for factory floor measurement environments with high RF interference from VFDs, motors, and dense wireless infrastructure. RM2.4 is not Bluetooth and does not share Bluetooth’s well-documented interference limitations in industrial settings.
What SPC software does MobileCollect integrate with?
— MobileCollect Base Receivers output data via USB Serial, USB Keyboard Wedge, or RS-232 — compatible with all major SPC platforms including GainSeeker Suite (Hertzler Systems), InfinityQS ProFicient/Enact, WinSPC, SQCpack, and any application that accepts keyboard wedge or serial input.
Can the Command Mobile Module or Digital Remote be triggered by a PLC?
— Yes. Both support remote read triggering via the Base Receiver. The Base can be commanded from host software via serial send commands, or triggered by read switches (foot switch, hand switch) connected directly to the Base. This enables PLC-synchronized data collection where the read is triggered at a defined point in the machine cycle.
What is the wireless range of MobileCollect transmitters?
— Up to 140 feet (40 meters) line-of-sight indoors for the Mini Mobile Module EVO M3E, and the Command Mobile Module. Real-world range depends on obstructions between the transmitter and Base. Positioning the Base elevated with clear line-of-sight to transmitters maximizes effective range.
The MobileCollect Demo Kit lets you evaluate the complete system at your facility before you commit. Request a demo kit at microridge.com/demo-kit or contact us at sales@microridge.com.
