CFAM Electronics has shut down. Here’s your direct, drop-in path to replace the Digipratic with no gage changes required.
This post is also available in:
CFAM Electronics has shut down. The Digipratic isn’t supported anymore, and GageWay Pro is your direct, drop-in replacement with no gage changes required.
CFAM Electronics, the French manufacturer of the Digipratic Digimatic multiplexer, has ceased operations. If your facility relies on a Digipratic for multi-channel Digimatic data collection, you’re now facing an unsupported instrument with no path to firmware updates, replacement units, or technical support: a real risk for any quality system relying on continuous, auditable measurement data collection (ISO 9001 Clause 7.1.5, IATF 16949).

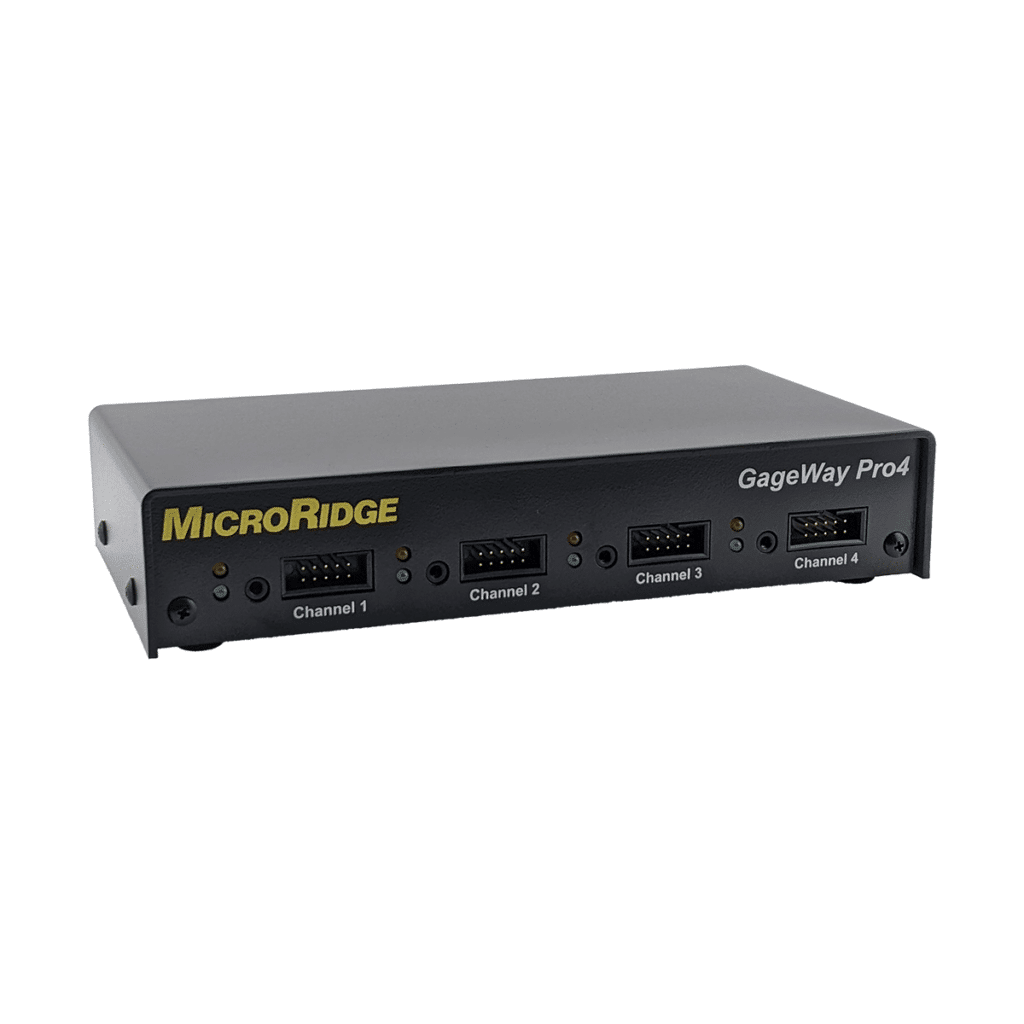

MicroRidge has stepped in as the direct replacement source. The GageWay Pro series matches the Digipratic’s core function (consolidating multiple Digimatic gage channels into a single computer interface) while closing several gaps in flexibility, scalability, and software control.
Capability | CFAM Digipratic | MicroRidge GageWay Pro |
|---|---|---|
Max Channels | Up to 16 | Up to 72 (chainable Pro8 units) |
Gage Input Type | Digimatic | Digimatic + RS-232 + non-RS-232 digital gage output (Mahr Federal, Starrett, Ono Sokki, Kroeplin, CDI, etc.) |
Output Formats | Single DB9 serial | DB9 Serial, USB Serial, USB Keyboard Wedge |
Foot/Hand Switch Input | Yes | Yes (foot switch and hand switch both supported) |
RS-232 Passthrough | Limited | Dedicated RS-232 multifunction serial port per unit, with AutoBaud |
Configuration | Hardware/DIP-switch level | Free PC-based Setup Software, per-channel customization |
Read Modes | Fixed | Single Read, Continuous Read, TIR Read, selectable per channel |
Channel ID / SPC Tagging | Not configurable | Custom channel identifiers for SPC software organization |
Data Formatting | Fixed | Configurable field separators and EOP characters |
Manufacturer Support Status | Discontinued (CFAM Electronics closed) | Active, 40+ years in measurement data collection, made in the USA |
Most facilities replacing a Digipratic are doing so reactively: a unit fails, support is unreachable, or a calibration/audit cycle exposes the risk of running unsupported measurement hardware. A few things make the transition straightforward:
MicroRidge is the leader in measurement data collection with a full product suite including MobileCollect Wireless Interfaces, GageWay Wired Interfaces and WedgeLink Keyboard Wedge. With over 40 years in the industry you can count on MicroRidge to be around for the long haul. Have technical questions, give us a call at +1-541-593-1656 or email support@microridge.com.
Let your team evaluate our products at your location for a 10-day period before making any investment with our Demo Kit Program. No cost or obligation. We cover shipping to and from your location. USA & Canada locations only.
Is the CFAM Electronics Digipratic still available?
— No. CFAM Electronics has ceased operations, and the Digipratic is no longer manufactured or supported. There is no official replacement part or firmware support path from CFAM.
Will my existing Digimatic gages work with GageWay Pro without modification?
— Yes. GageWay Pro accepts standard Digimatic output directly, the same protocol your gages use with the Digipratic.
Can GageWay Pro handle more channels than my current Digipratic setup?
— Yes. GageWay Pro4 and Pro8 units can be chained for up to 72 channels total, versus the Digipratic’s 16-channel maximum.
Does GageWay Pro require special software to replace Digipratic functionality?
— GageWay Pro includes free Setup Software for channel configuration. No proprietary CFAM software is required.
Can GageWay Pro replicate min/max dual-comparator measurement cycles like the Digipratic?
— Yes. For dynamic measurements using two comparators within a defined timeframe (foot-switch-triggered start/stop, with min/max value capture per cycle), GageWay Pro’s TIR Read mode is built for this. Each channel can be configured independently, so a two-comparator setup can run TIR Read on both inputs, each triggered by its own read switch and pressed together by the operator, with digital output of the captured min/max values to your SPC or data acquisition software. See our full guide to sequencing and TIR capture on multi-indicator stations for wiring and configuration detail.
Andy Duvall is an owner of MicroRidge Systems and serves as the company’s sales director. With over a decade of experience as a product design and launch engineer, Andy works closely with MicroRidge customers to identify and implement the most effective measurement and interface solutions for their organizations.
2 Responses
Hello,
We are very interested in your GageWay Pro as a replacement for our CFAM Digipratic devices and for other new needs.
One of our requirements is to perform dynamic measurements with two comparators within a given timeframe (start and end of measurement via foot-switch activation) and to retrieve (digital output) the minimum and maximum values of each measurement.
Would it be possible to test your GageWay solution (including software)? If so, how can this be organized?
Could you also provide me with the price of a GageWay (Pro4, for example) depending on the quantity ordered (1, 5, 10, or 50 units)? A quote for delivery within France would be appreciated.
I look forward to your reply and remain at your disposal for any further information.
Best regards
Thanks for reaching out! The GageWay Pro 4 should be a great fit for replacing the older CFAM Digipractic devices you have. I’ll reach out to you via email today so we can start getting your questions answered and get you a GageWay Pro 4 for testing. If for some reason my email doesn’t hit your inbox, please reach out to sales@microridge.com.
